43D-Link DIR-826L User Manual

Section 4 - Security

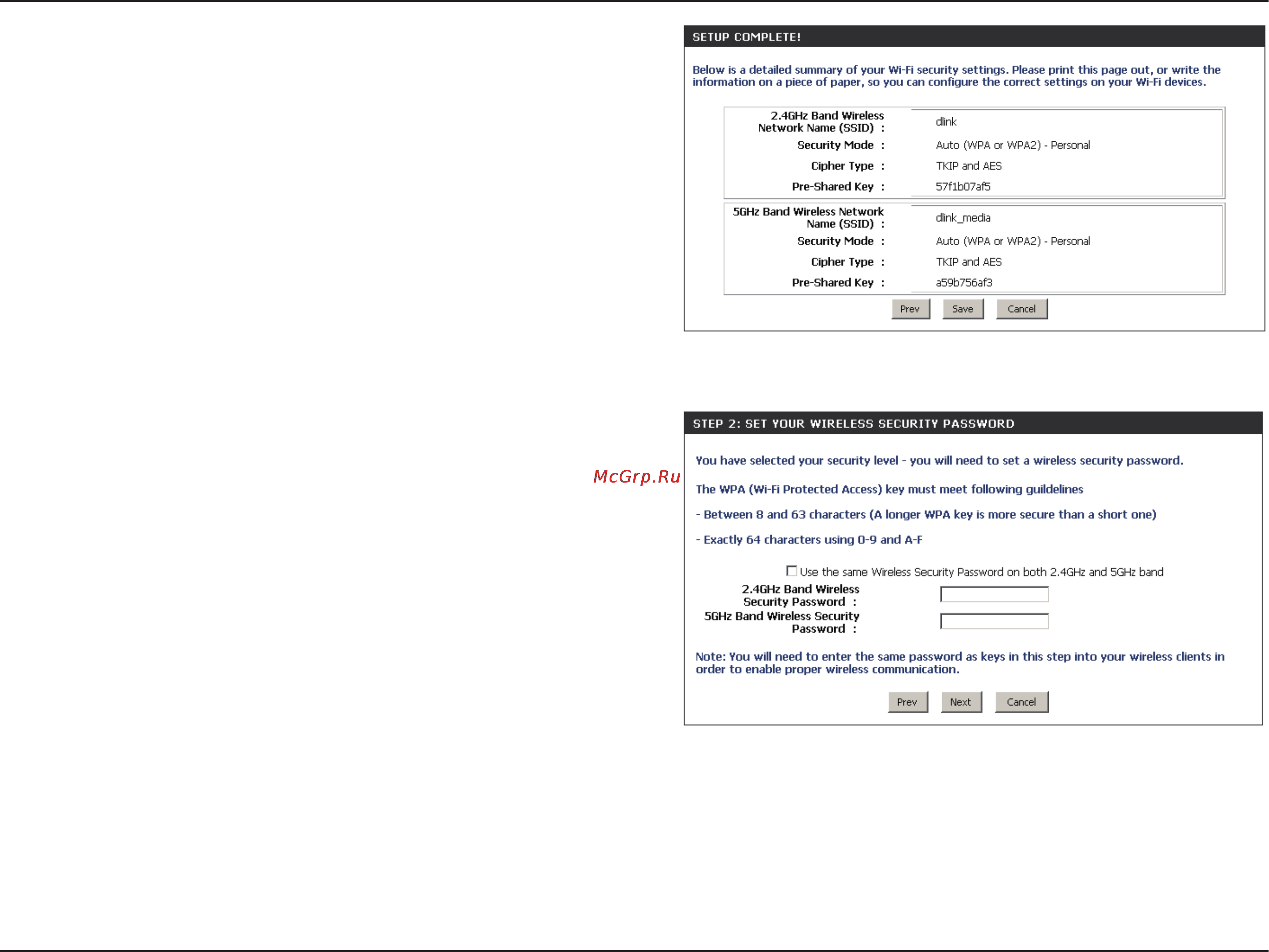

If you selected Automatically, the summary window will display

your settings. Write down the security key and enter this on your

wireless clients. Click Save to save your settings.

If you selected Manually, the following screen will appear. Create

a passphrase for your security password. Click Next to continue.
