D-Link DIR-826L [110/142] The ipv6 page displays a summary of the router s ipv6 settings and lists the ipv6 address and host name of any ipv6 clients

106D-Link DIR-826L User Manual

Section 3 - Conguration

IPv6

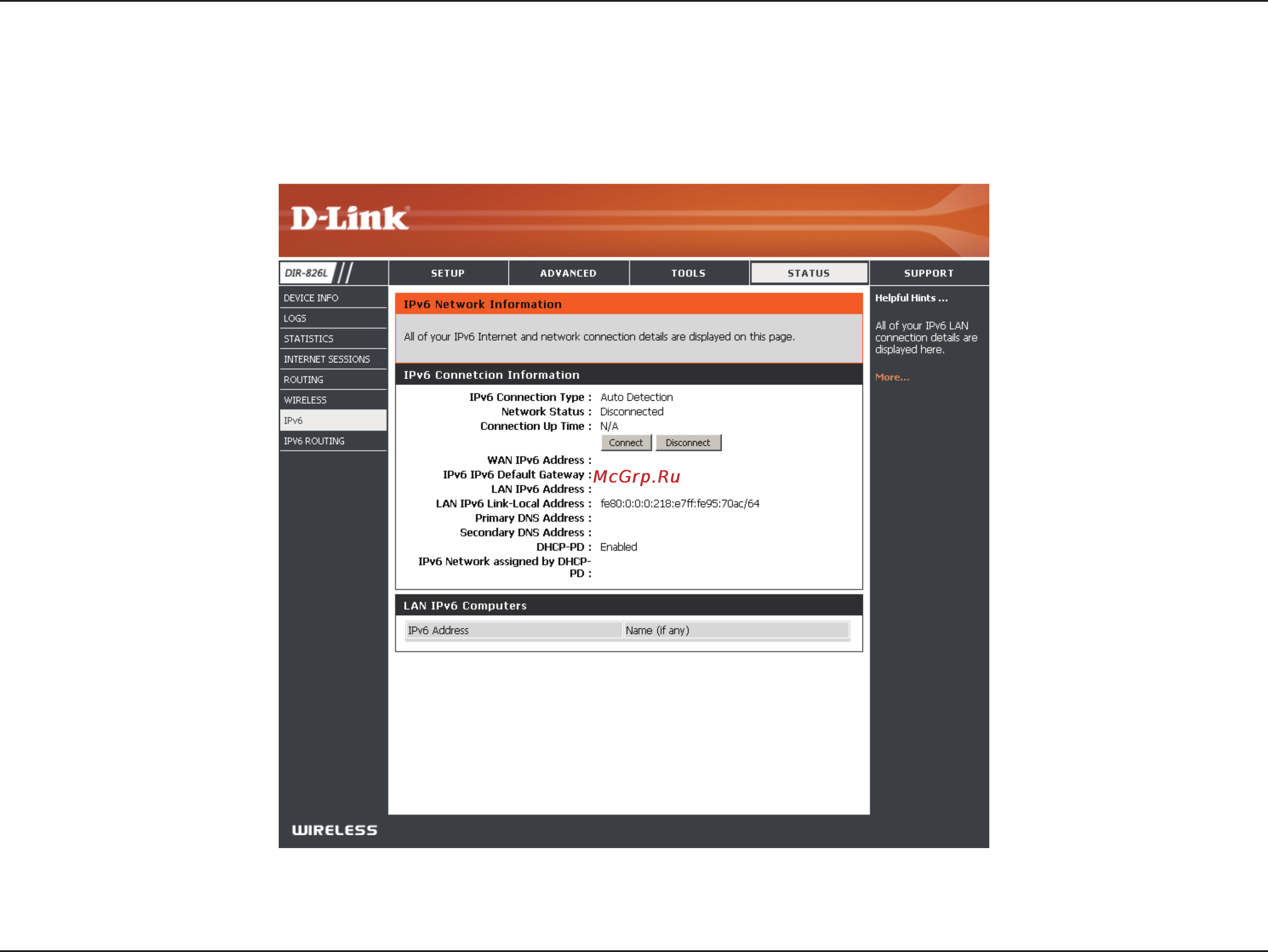

The IPv6 page displays a summary of the Router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.
