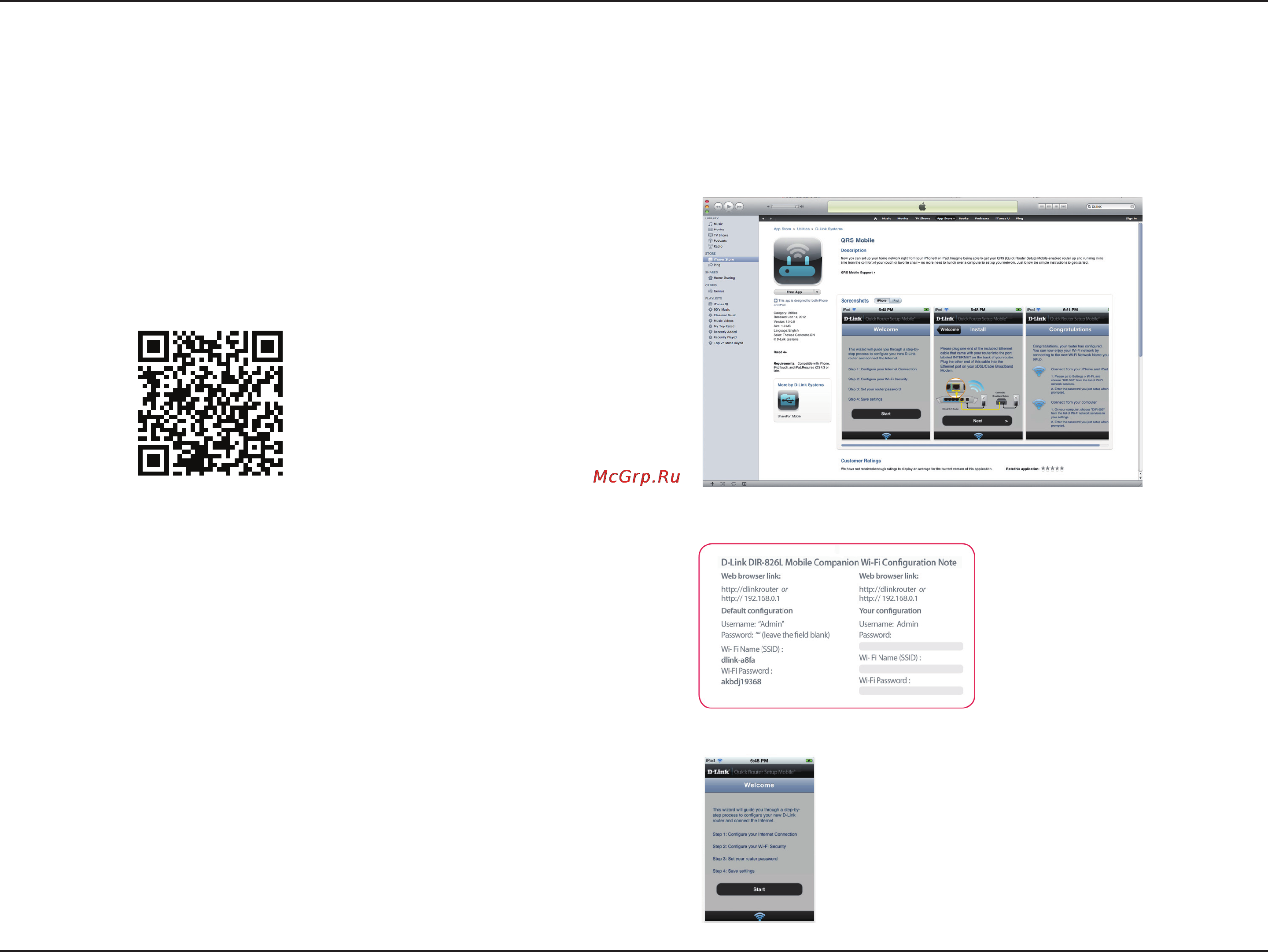

21D-Link DIR-826L User Manual
Section 3 - Conguration
QRS Mobile App
D-Link oers an app for your iPad, iPod Touch, or iPhone (iOS 4.3 or higher) to install and congure your router.
Step.1
From your iPad, Touch, or iPhone, go to the iTunes Store and
search for ‘D-Link’. Select QRS.Mobile and then download it.
You may also scan this code to download.
Step.2
Once your app is installed, you may now congure your router.
Connect to the router wirelessly by going to your wireless utility
on your device. Scan for the Wi-Fi name (SSID) as listed on the
supplied info card. Select and then enter your Wi-Fi password.
Step.3
Once you connect to the router, launch the QRS mobile app and
it will guide you through the installation of your router.
