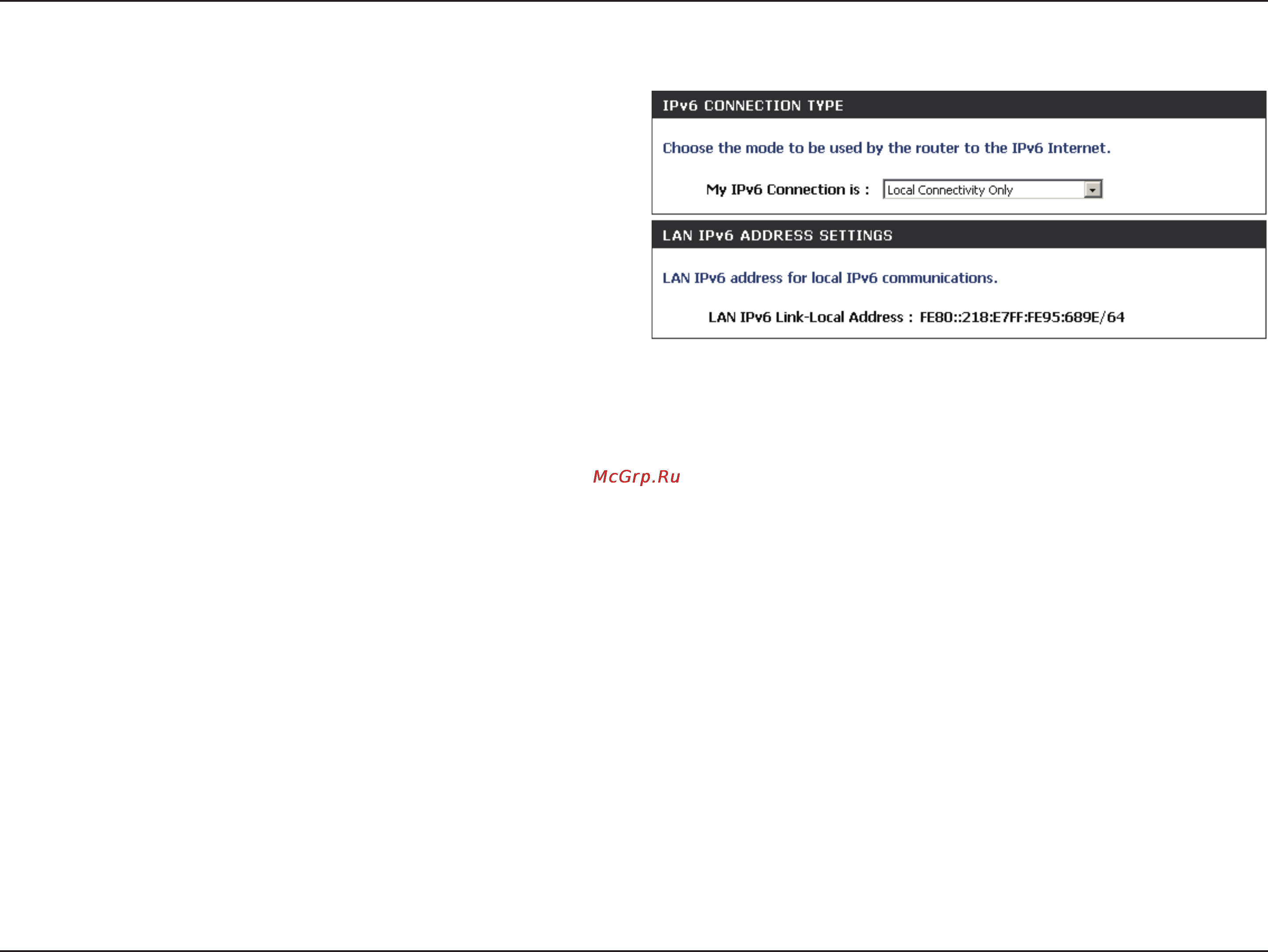

D-Link DIR-826L [73/142] Link local connectivity

69D-Link DIR-826L User Manual

Section 3 - Conguration

Select Link-Local.Only from the drop-down

menu.

Displays the IPv6 address of the router.

My IPv6 Connection:

LAN IPv6 Address

Settings:

Link-Local Connectivity
