D-Link DIR-826L [31/142] Internet connection setup

27D-Link DIR-826L User Manual

Section 3 - Conguration

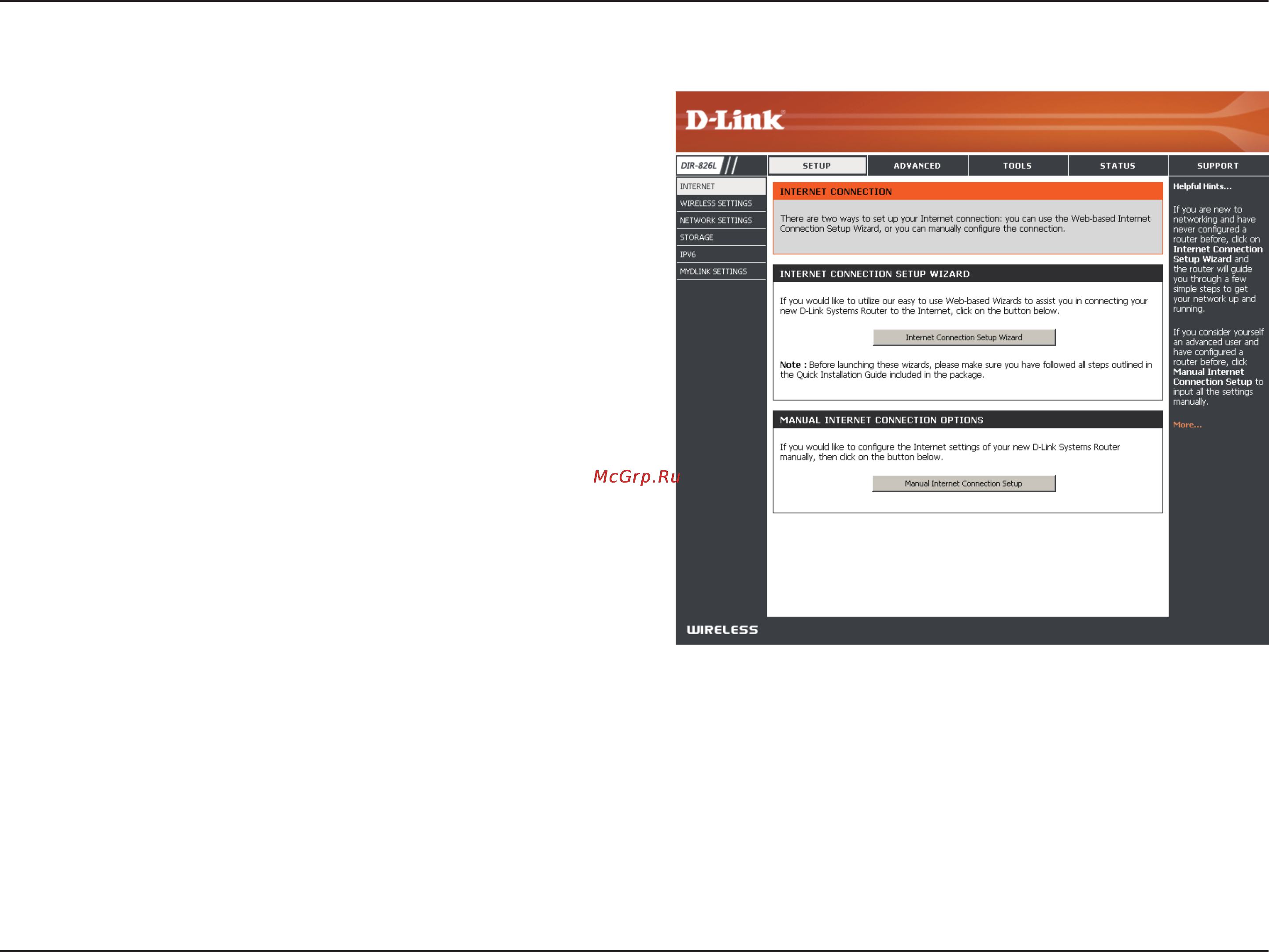

Internet Connection Setup

Click Manual.Internet.Connection.Setup to congure your

connection manually and continue to the next page.

If you want to congure your router to connect to the Internet

using the wizard, click Internet.Connection.Setup.Wizard.

You will be directed to the Quick Setup Wizard. Please refer

to page 14.
