D-Link DIR-826L [46/142] Wireless security setup wizard

42D-Link DIR-826L User Manual

Section 4 - Security

Wireless Security Setup Wizard

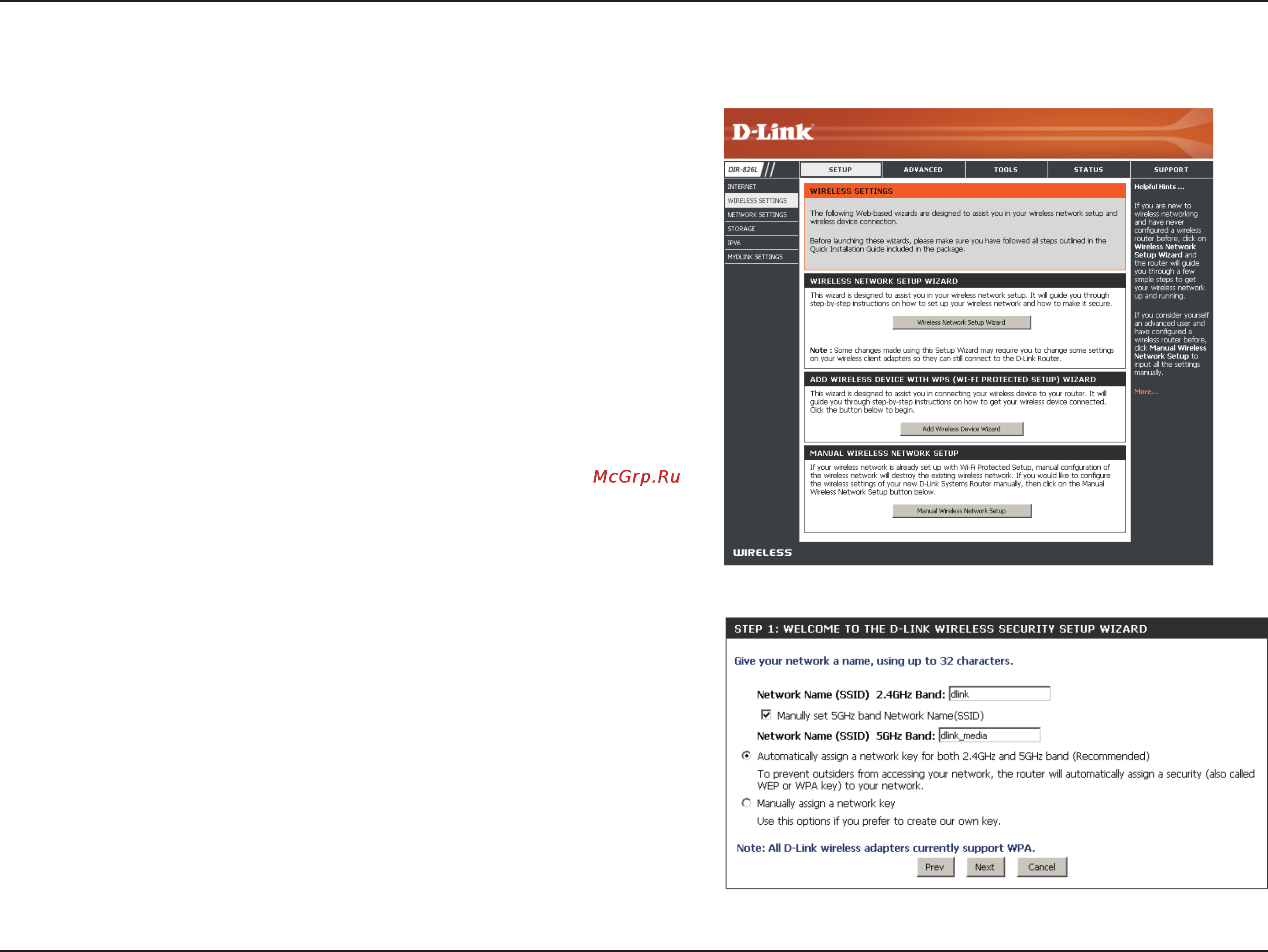

To run the security wizard, click on Setup at the top and then click

Wireless.Network.Setup.Wizard.

Type your desired wireless network name (SSID).

Automatically:.Select this option to automatically generate

the router’s network key and click Next.

Manually: Select this option to manually enter your network

key and click Next.
