114D-Link DIR-826L User Manual

Section 4 - Security

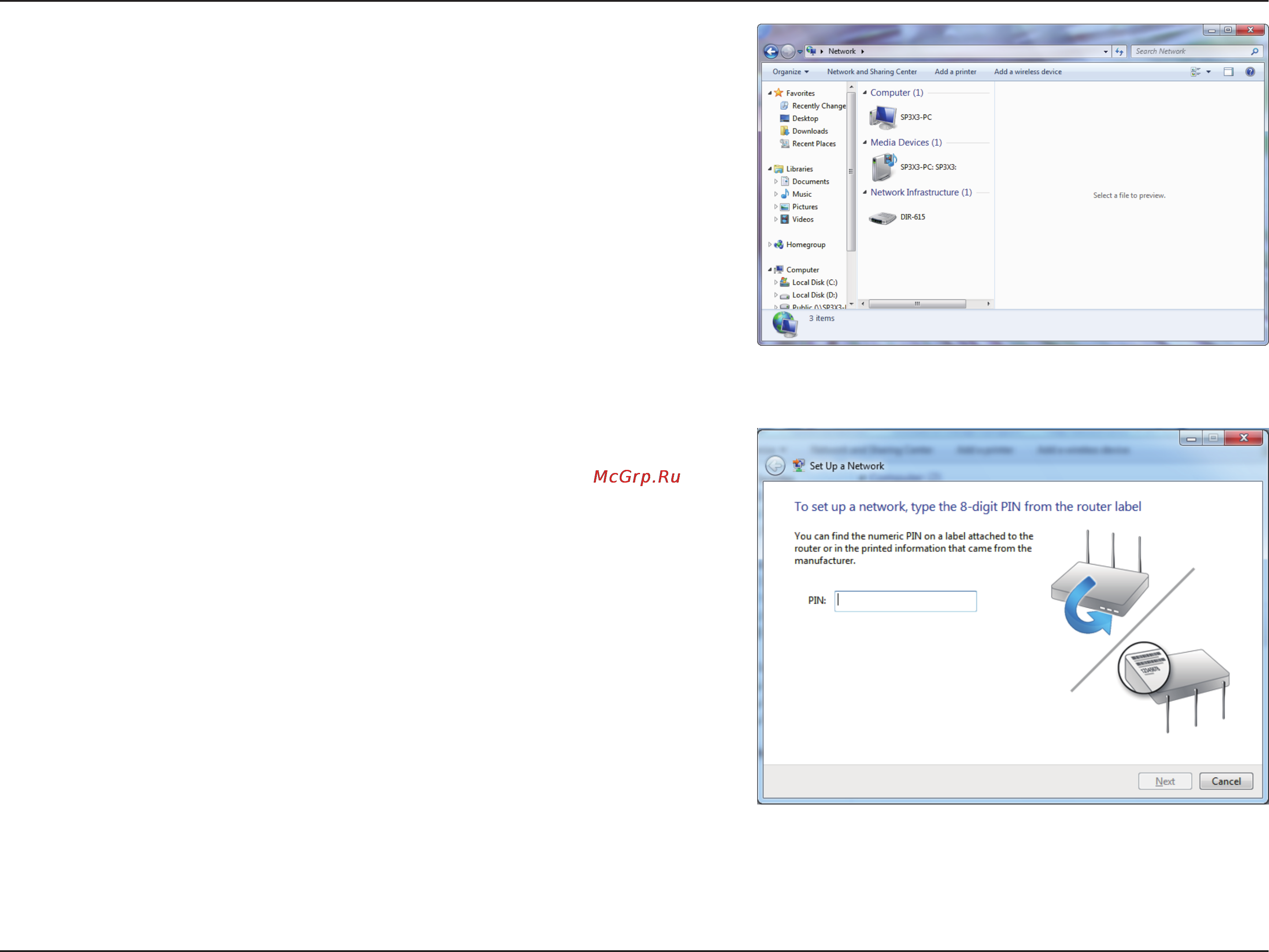

3. Double-click the DIR-826L.

4. Input the WPS PIN number (displayed in the WPS window on the

Router’s LCD screen or in the S etup.> Wireless.Setup menu in

the Router’s Web UI) and click Next.
