Section 5 - Connecting to a Wireless Network

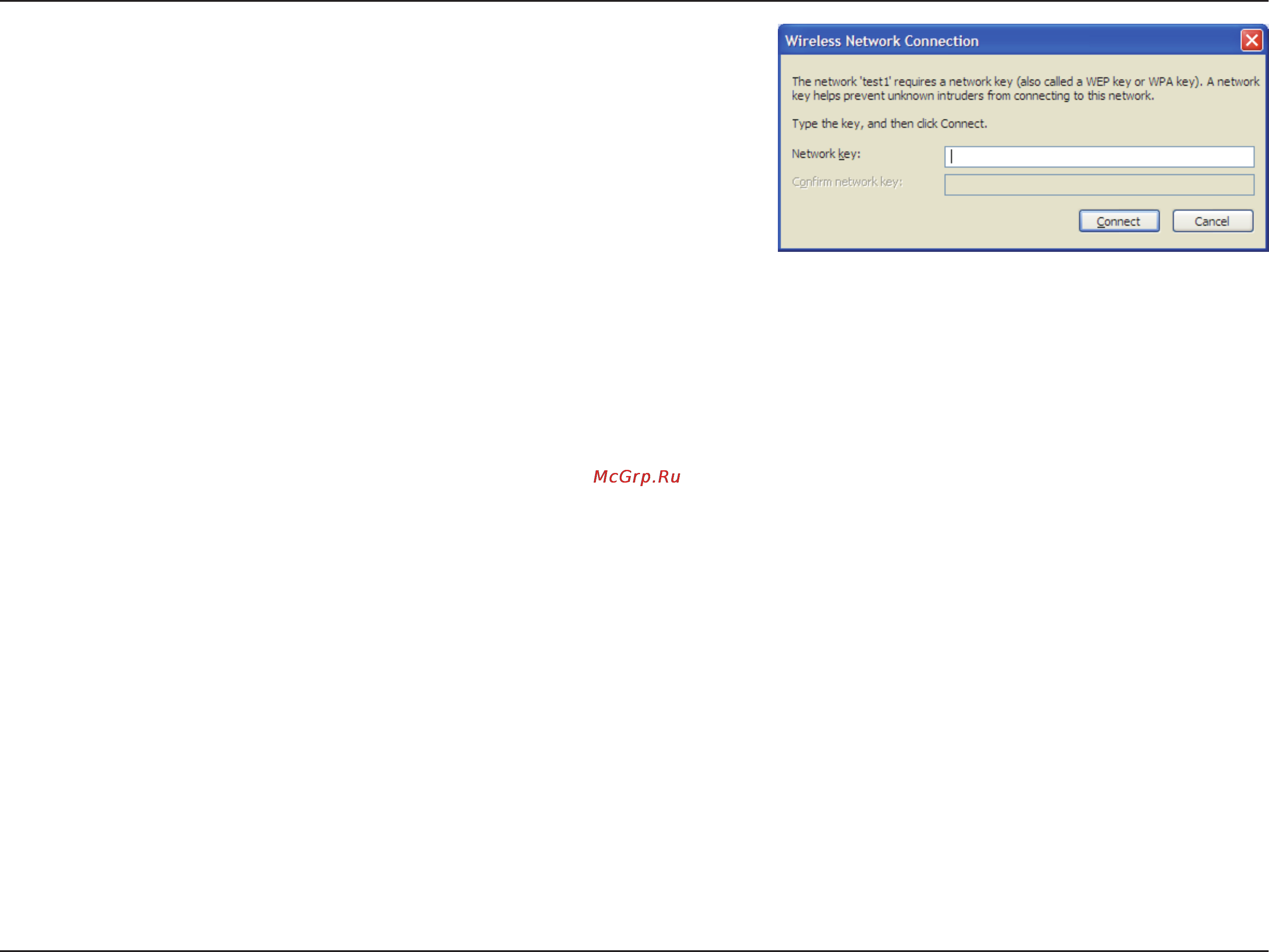

3. The Wireless.Network.Connection box will appear. Enter the WPA-PSK

Wi-Fi password and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the

connection fails, please verify that the WPA-PSK settings are correct. The

Wi-Fi password must be exactly the same as on the wireless router.
