18D-Link DIR-826L User Manual

Section 3 - Conguration

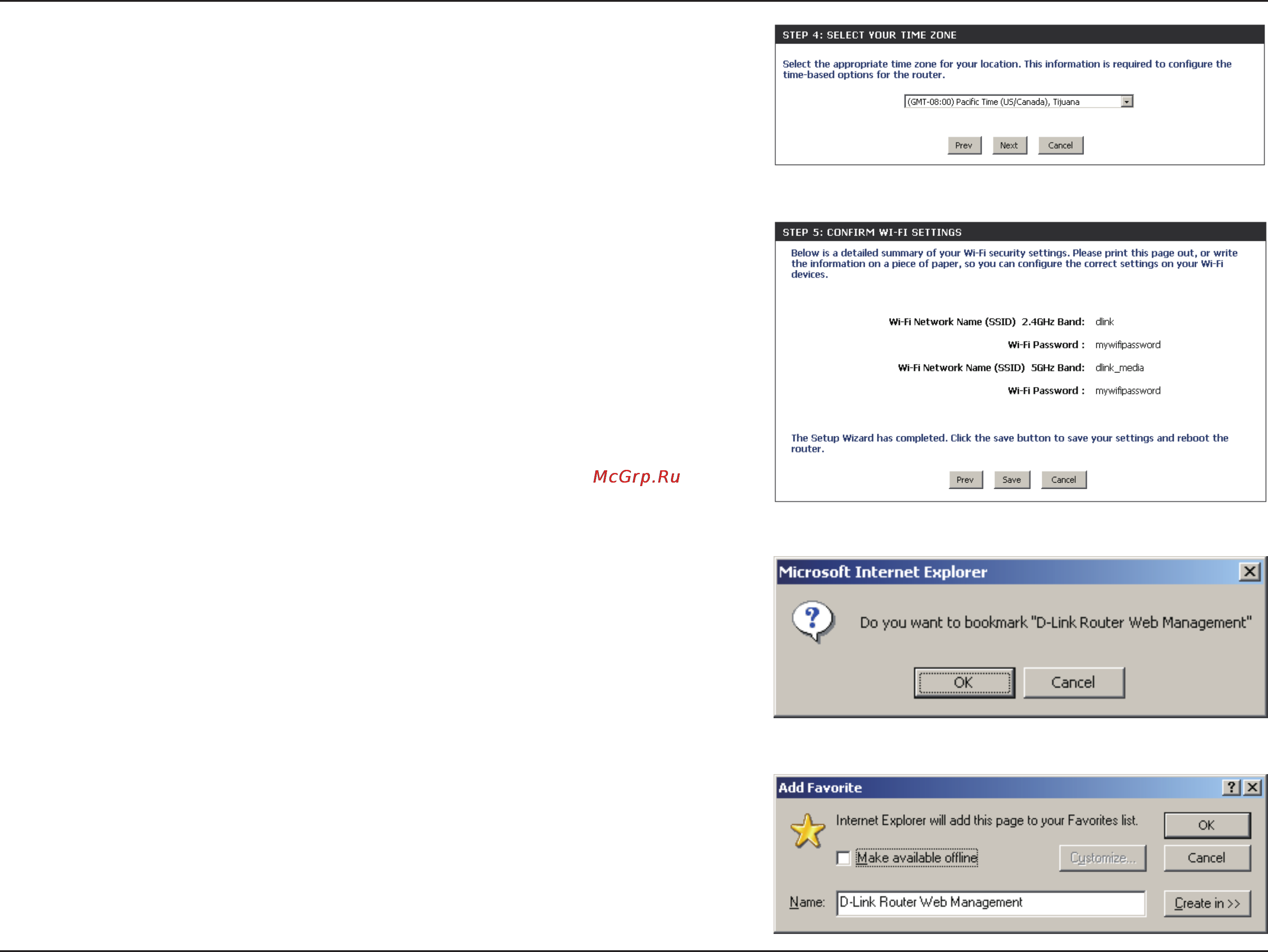

Select your time zone from the drop-down menu and click Next to

continue.

The Setup Complete window will display your Wi-Fi settings. Click Save.

and.Connect to continue.

If you want to create a bookmark to the router, click OK. Click Cancel if

you do not want to create a bookmark.

If you clicked Yes, a window may appear (depending on what web

browser you are using) to create a bookmark.
