23D-Link DIR-826L User Manual

Section 3 - Conguration

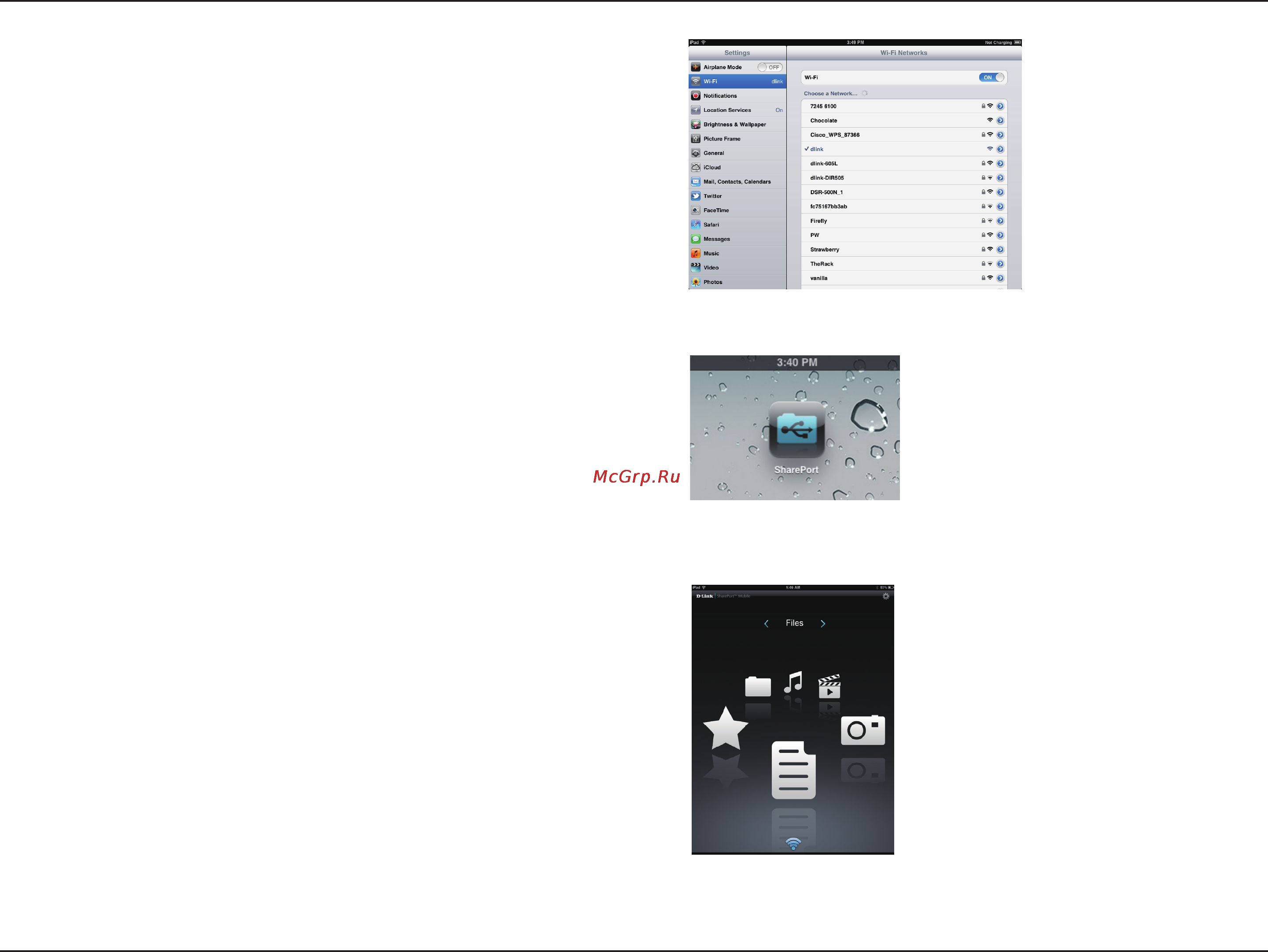

4. Click Wi-Fi, select the Wi-Fi Network Name (SSID) that you created in the

setup and then enter your Wi-Fi password.

5. Once connected, click on the SharePort Mobile icon.

6. The following screen will appear.
