25D-Link DIR-826L User Manual

Section 3 - Conguration

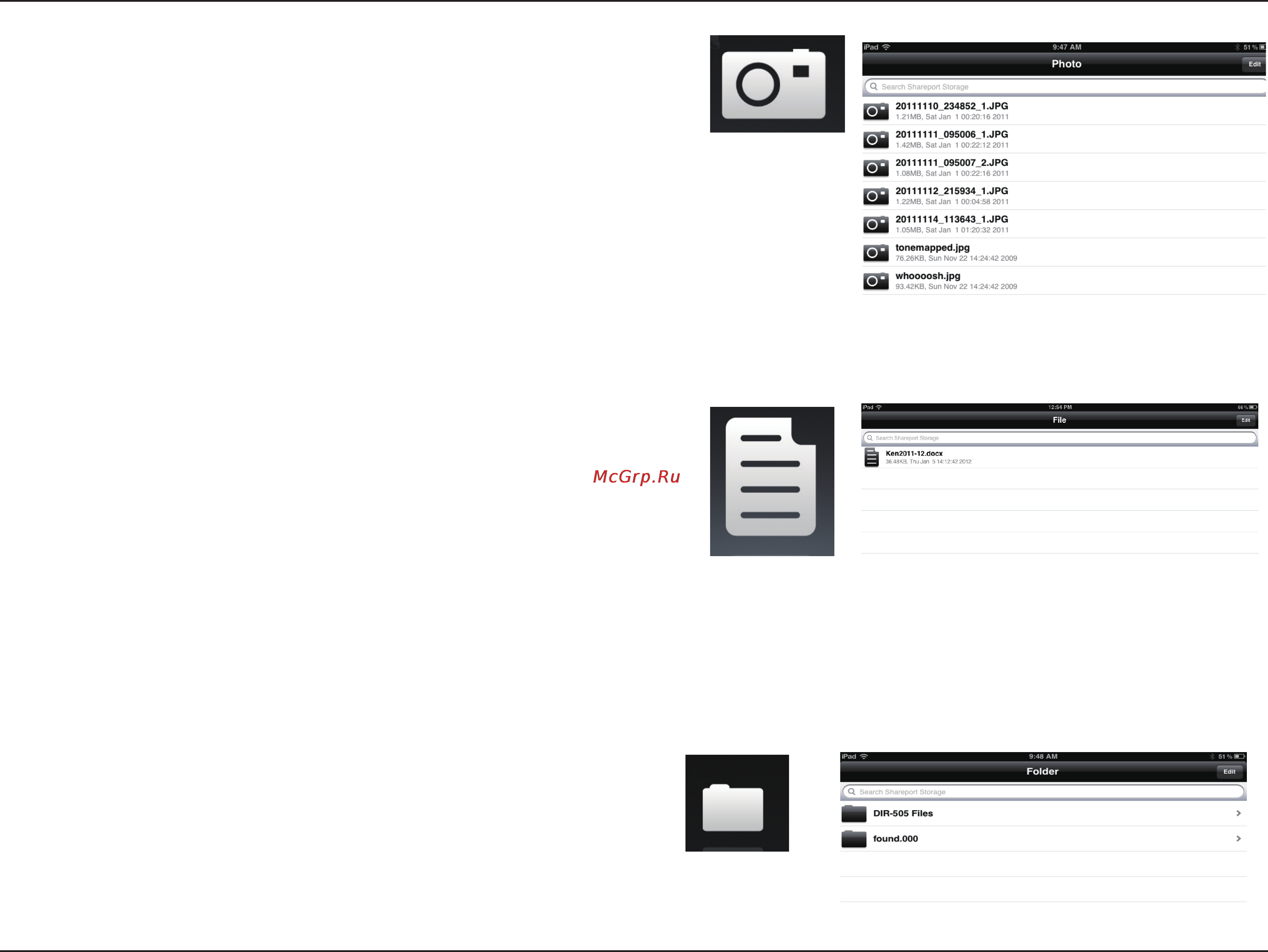

10. For the Photo section, click the Photo icon to view your photos from

your USB ash drive.

11. For the Files section, click on the Files icon to view your les from your

USB ash drive.

12. For the Folder section, click the folder icon to view your folders

from your USB ash drive.
