55D-Link DIR-826L User Manual
Section 3 - Conguration
IPv6

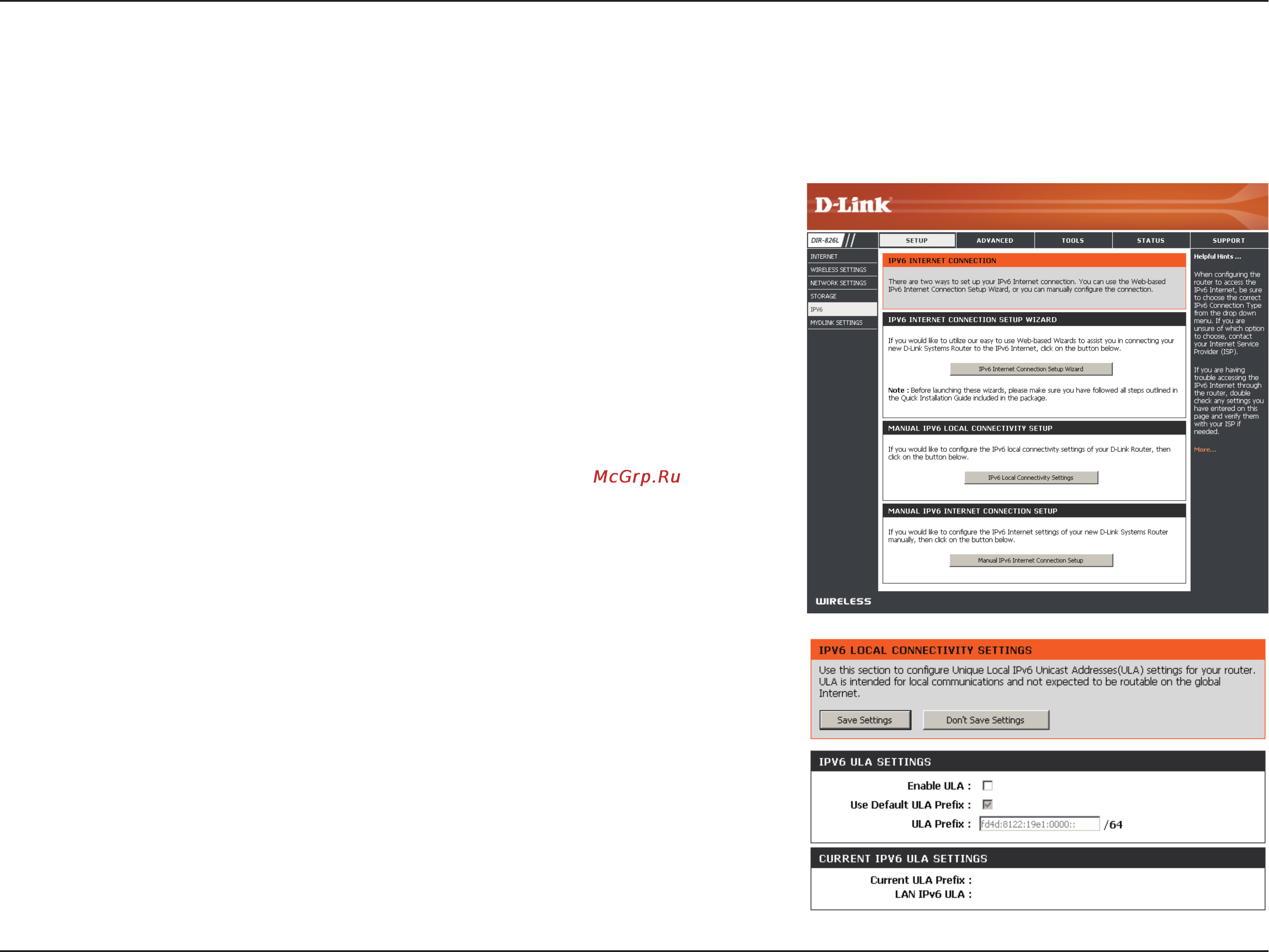

On this page, the user can congure the IPv6 Connection type. There are two ways to set up the IPv6 Internet connection. You
can use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually congure the connection.
For the beginner user that has not congured a router before, click on
the IPv6. Internet.Connection.Setup.Wizard.button and the router will
guide you through a few simple steps to get your network up and running.
For the advanced user that has congured a router before, click on the
Manual.IPv6.Internet.Connection.Setup button to input all the settings
manually.
To congure the IPv6 local settings, click on the IPv6.Local.Connectivity.
Setup button.
