English
23
Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI

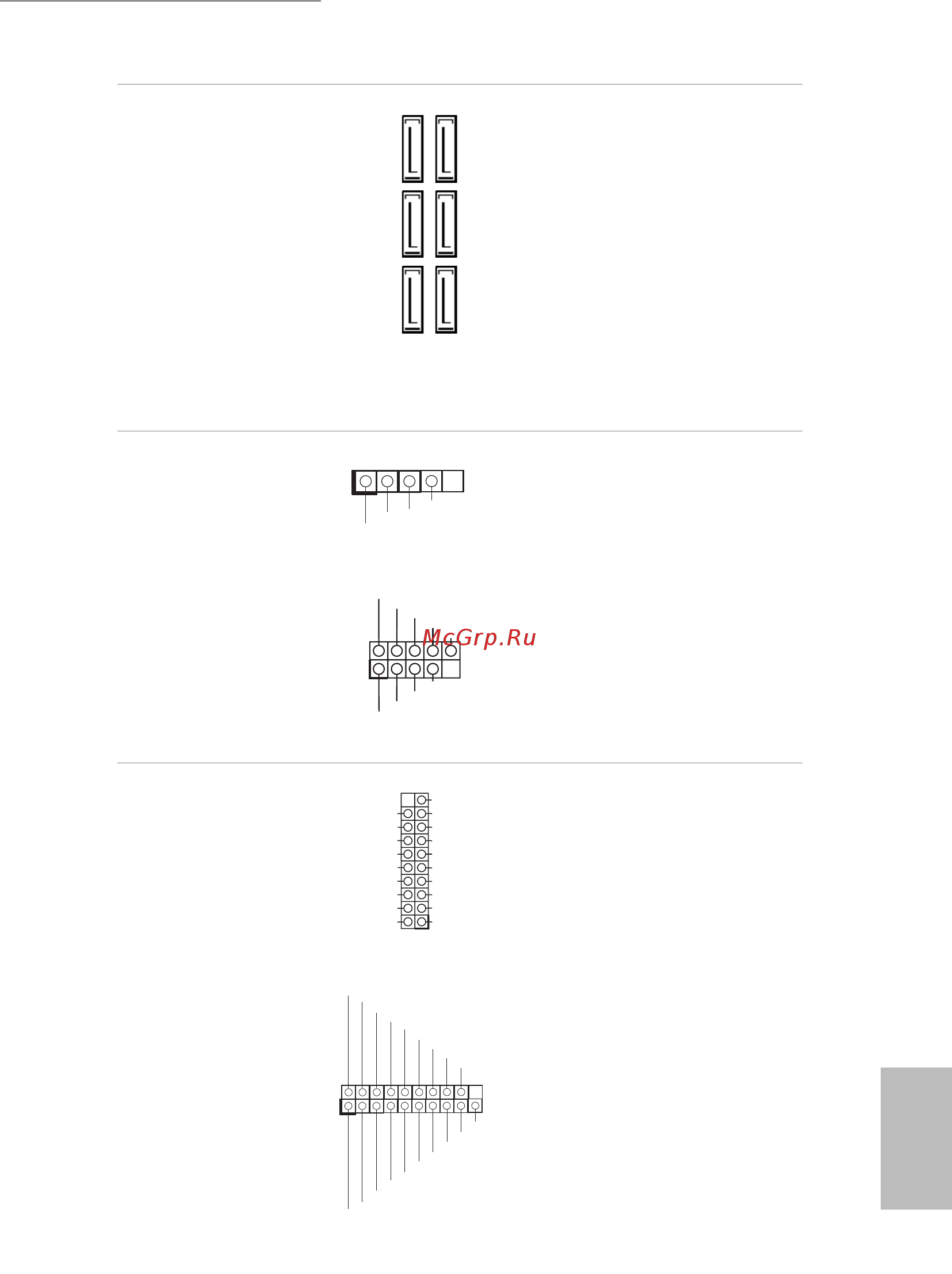

Serial ATA3 Connectors
(SATA3_0_1:
see p.1 or 2, No. 7)
(SATA3_2_3:
see p.1 or 2, No. 8)
(SATA3_4_5:
see p.1 or 2, No. 9)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.
* If M2_2 is occupied by
a SATA-type M.2 device,
SATA3_5 will be disabled.
USB 2.0 Headers
(5-pin USB_3)
(see p.1 or 2, No. 17)
(9-pin USB_1_2)
(see p.1 or 2, No. 16)
ere are two headers on
this motherboard.
USB 3.1 Gen1 Headers
(19-pin USB3_5_6)
(see p.1 or 2, No. 6)
(19-pin USB3_7_8)
(see p.1 or 2, No. 15)
ere are two headers on
this motherboard. Each
USB 3.1 Gen1 header can
support two ports.
SATA3_4
SATA3_5
SATA3_2
SATA3_3
SATA3_0
SATA3_1
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
USB_PWR
P-
P+
GND
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
