English
26

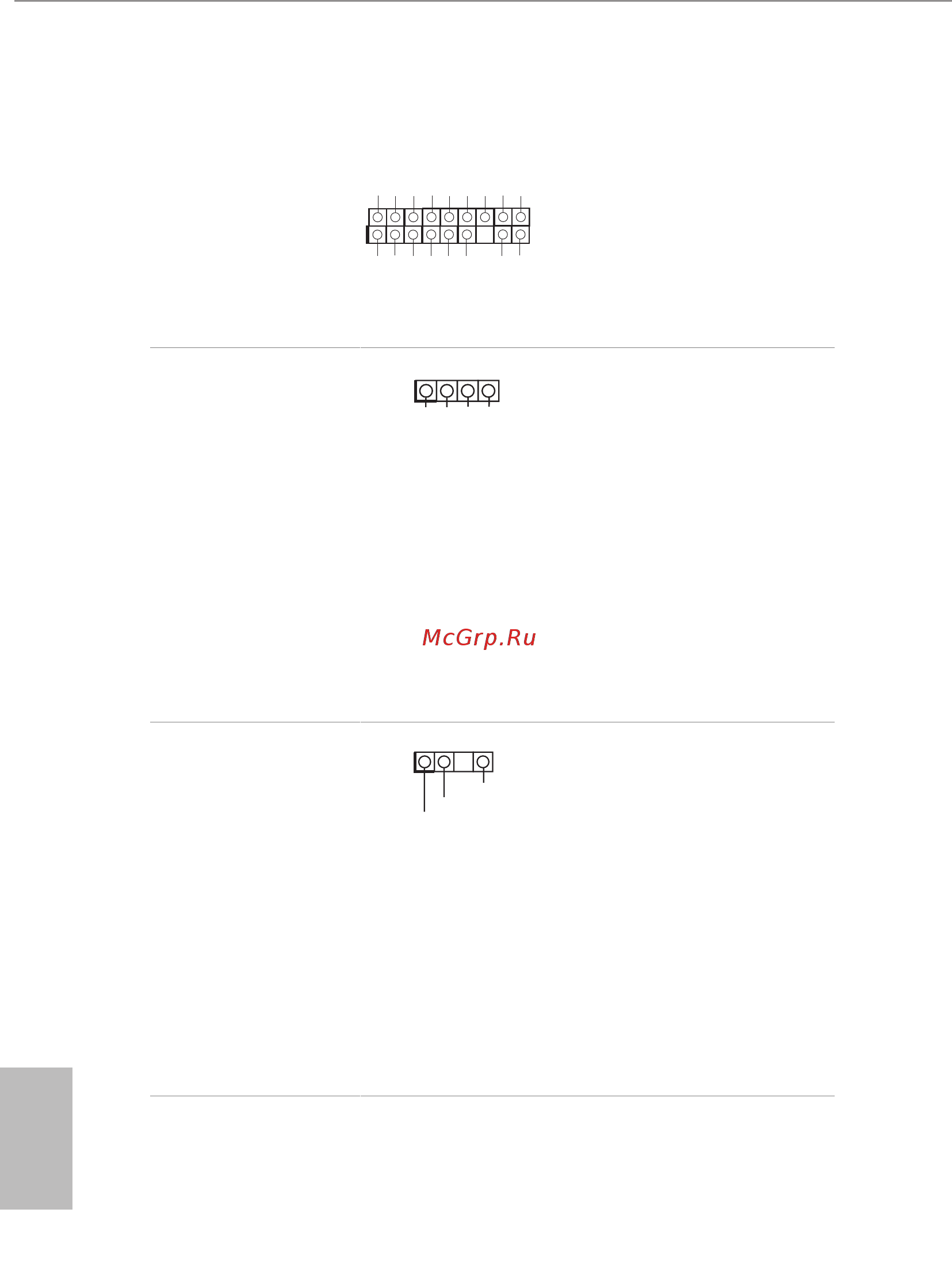

TPM Header
(17-pin TPMS1)
(see p.1 or 2, No. 22)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
RGB LED Headers
(4-pin RGB_LED1)
(see p.1 or 2, No. 21)
(4-pin RGB_LED2)
(see p.1 or 2, No. 20)
RGB LED header is used to
connect RGB LED extension
cable which allows users to
choose from various LED light-
ing eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 32 for for
further instructions on this
header.
Addressable LED Header
(3-pin ADDR_LED1)
(see p.1 or 2, No. 18)
is header is used to connect
Addressable
LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 33 for
further instructions on this
header.
1
GN D
SM B _DATA_MAI N
L A D 2
L A D 1
GN D
S_ P WRDWN #
SE R IRQ #
GN
D
P C ICL K
P CIRST #
L A D 3
+3 V
L A D 0
+3VS B
GN D
FR A M E
SM B _CLK_MAIN
12V GRB
1
VOUT
DO_ADDR
GND
1
