Pioneer AVH-G110DVD [2/40] Connection

2En

• Do not operate this product, any

applications, or the rear view camera

option (if purchased) if doing so will

divert your attention in any way from the

safe operation of your vehicle. Always

observe safe driving rules and follow all

existing traffic regulations. If you

experience difficulty in operating this

product or reading the display, park your

vehicle in a safe location and apply the

handbrake before making the necessary

adjustments.

• Do not install this product where it may

(i) obstruct the driver’s vision,

(ii) impair the performance of any of the

vehicle’s operating systems of safety

features, including airbags, hazard lamp

buttons, or

(iii) impair the driver’s ability to safely

operate the vehicle.

In some cases, it may not be possible to

install this product because of the vehicle

type or the shape of the vehicle interior.

WARNING

Pioneer does not recommend that you

install this product yourself. This product is

designed for professional installation only.

We recommend that only authorised

Pioneer service personnel, who have

special training and experience in mobile

electronics, set up and install this product.

NEVER SERVICE THIS PRODUCT YOURSELF.

Installing or servicing this product and its

connecting cables may expose you to the

risk of electric shock or other hazards, and

can cause damage to this product that is

not covered by warranty.

WARNING

Do not take any steps to tamper with or

disable the handbrake interlock system

which is in place for your protection.

Tampering with or disabling the

handbrake interlock system could result in

serious injury or death.

CAUTION

• Secure all wiring with cable clamps or

electrical tape. Do not allow any bare

wiring to remain exposed.

• Do not directly connect the yellow lead of

this product to the vehicle battery. If the

lead is directly connected to the battery,

engine vibration may eventually cause

the insulation to fail at the point where

the wire passes from the passenger

compartment into the engine

compartment. If the yellow lead’s

insulation tears as a result of contact with

metal parts, short-circuiting can occur,

resulting in considerable danger.

• It is extremely dangerous to allow cables

to become wound around the steering

column or gearstick. Be sure to install this

product, its cables, and wiring away in

such so that they will not obstruct or

hinder driving.

Connection

Precautions

Your new product and this

manual

Important safeguards

Precautions before

connecting the system

• Make sure that the cables and wires will

not interfere with or become caught in

any of the vehicle’s moving parts,

especially the steering wheel, gearstick,

handbrake, sliding seat tracks, doors, or

any of the vehicle’s controls.

• Do not route wires where they will be

exposed to high temperatures. If the

insulation heats up, wires may become

damaged, resulting in a short circuit or

malfunction and permanent damage to

the product.

• Do not shorten any leads. If you do, the

protection circuit (fuse holder, fuse

resistor or filter, etc.) may fail to work

properly.

• Never feed power to other electronic

products by cutting the insulation of the

power supply lead of this product and

tapping into the lead. The current

capacity of the lead will be exceeded,

causing overheating.

• Use this product with a 12-volt battery

and negative earthing only. Failure to do

so may result in a fire or malfunction.

• To avoid shorts in the electrical system,

be sure to disconnect the (–) battery

cable before installation.

WARNING

• When speaker output is used by 4

channels , use speakers over 50 W

(Maximum input power) and between 4

Ω to 8 Ω (impedance value). Do not use 1

Ω to 3 Ω speakers for this unit.

• The black lead is earth. Please earth this

lead separately from the earth of high

current products such as power amps. Do

not earth more than one product

together with the earth from another

product. For example, you must

separately earth any amp unit away from

the earth of this product. Connecting

earths together can cause a fire and/or

damage the products if their earths

became detached.

• When replacing the fuse, be sure to only

use a fuse of the rating prescribed on this

product.

• This product cannot be installed in a

vehicle without ACC (accessory) position

on the ignition switch.

• To avoid short-circuiting, cover the

disconnected lead with insulating tape. It

is especially important to insulate all

unused speaker leads, which if left

uncovered may cause a short circuit.

• For connecting a power amp or other

devices to this product, refer to the

manual for the product to be connected.

• The graphical symbol placed on

the product means direct current.

• When the ignition switch is turned on

(ACC ON), a control signal is output

through the blue/white lead. Connect to

an external power amp’s system remote

control terminal, the auto-aerial relay

control terminal, or the aerial booster

power control terminal (max. 300 mA 12

V DC). The control signal is output

Before installing this

product

To prevent damage

Notice for the blue/

white lead

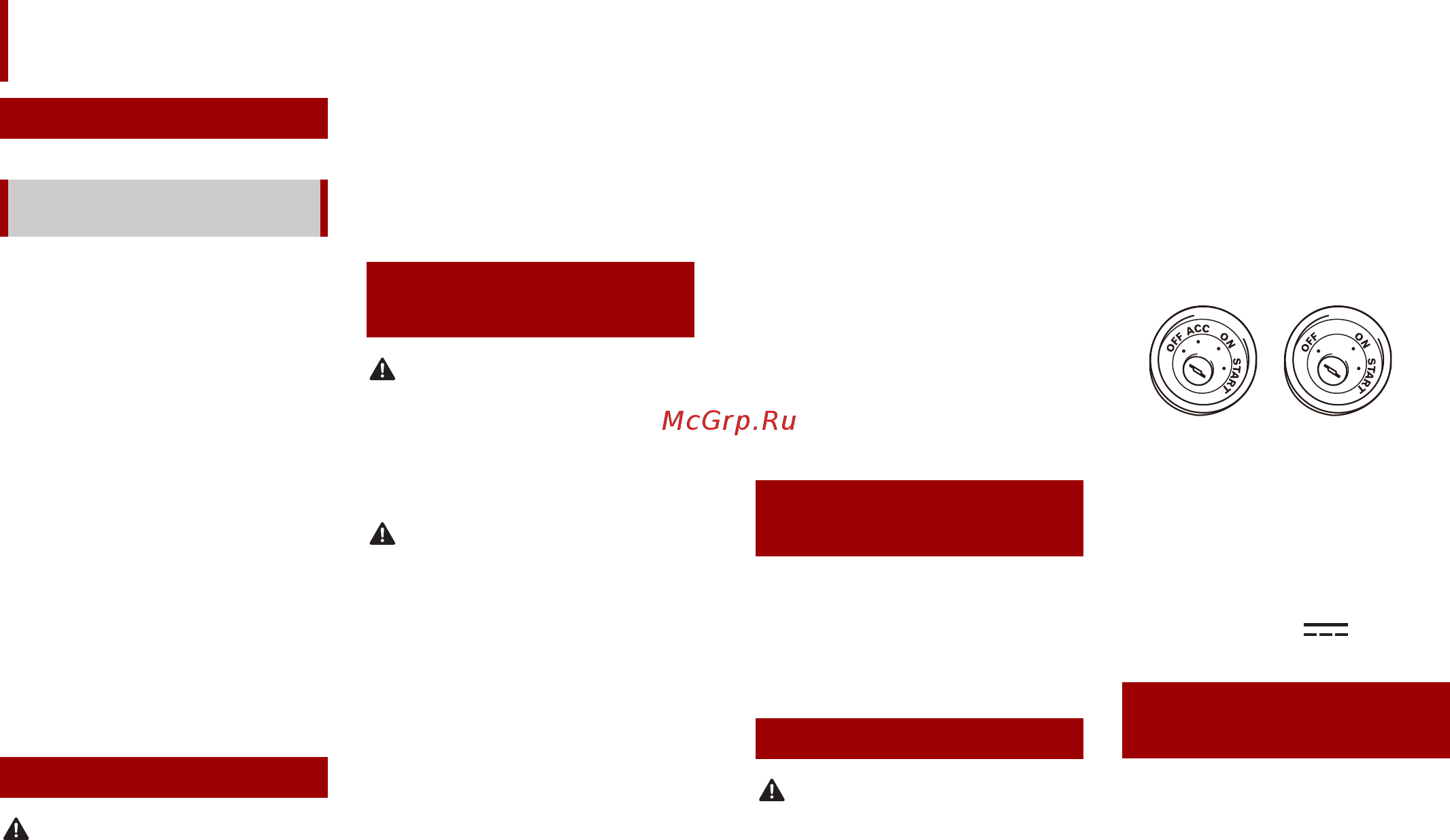

ACC position

No ACC position
