3En
English
through the blue/white lead, even if the
audio source is switched off.

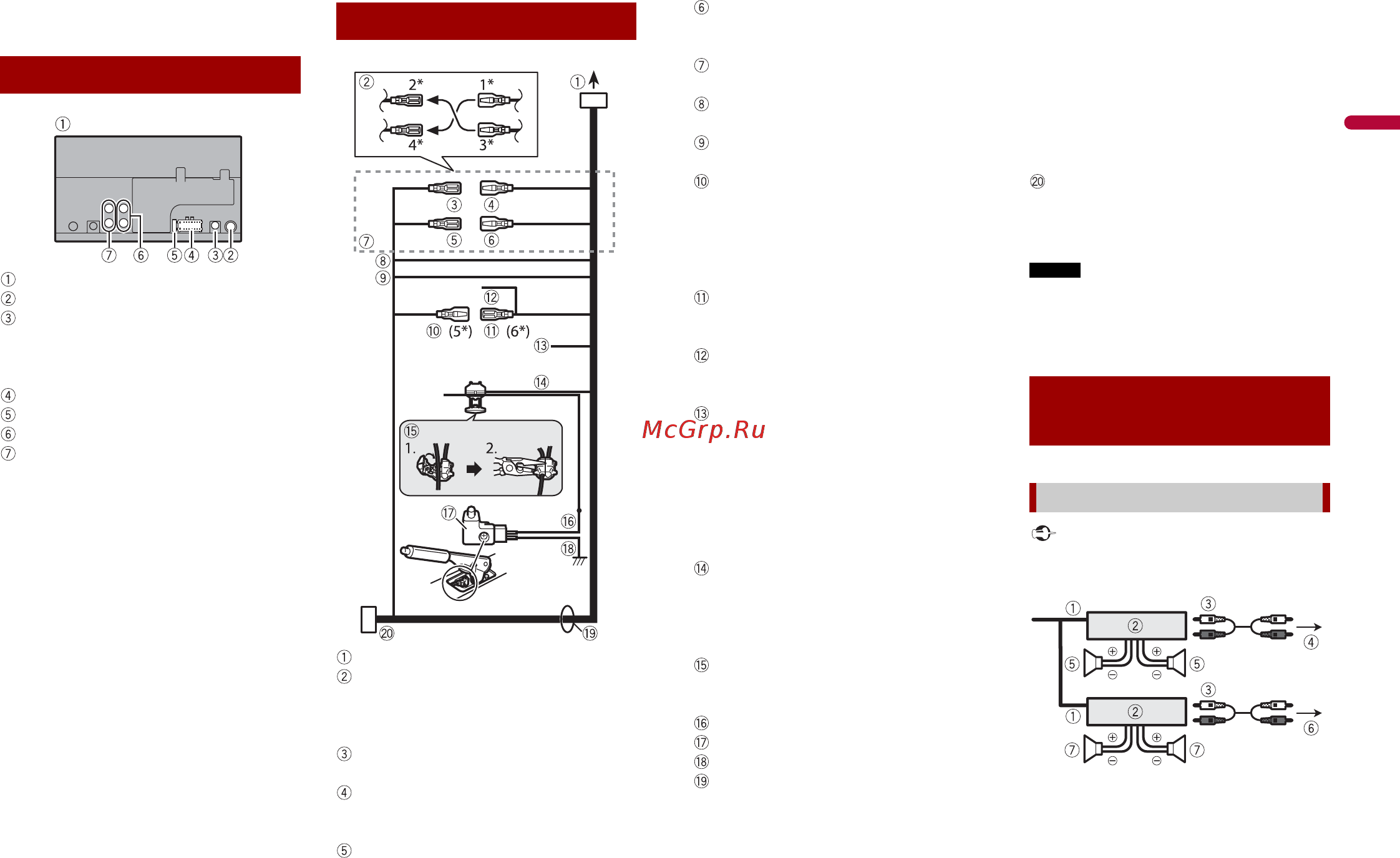

This product
Aerial jack
Wired remote input
Connect to steering wheel control
interface of your vehicle. For more
details, consult your dealer.
Power supply
Fuse (10 A)
Front output
Rear/Subwoofer output
To power supply
Depending on the kind of vehicle, the
function of 2* and 4* may be different.
In this case, be sure to connect 1* to 4*
and 3* to 2*.
Yellow (2*)
Back-up (or accessory)
Yellow (1*)
Connect to the constant 12 V supply
terminal.
Red (4*)
Accessory (or back-up)
Rear panel
Power cord
Red (3*)
Connect to terminal controlled by
ignition switch (12 V DC).
Connect leads of the same colour to
each other.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
Blue/white (5*)
The pin position of the ISO connector
will differ depending on the type of
vehicle. Connect 5* and 6* when Pin 5 is
an aerial control type. In another type of
vehicle, never connect 5* and 6*.
Blue/white (6*)
Connect to auto-aerial relay control
terminal (max. 300 mA 12 V DC).
Blue/white
Connect to system control terminal of
the power amp (max. 300 mA 12 V DC).
Violet/white
Of the two lead wires connected to the
back lamp, connect the one in which
the voltage changes when the gear shift
is in the REVERSE (R) position. This
connection enables the unit to sense
whether the car is moving forwards or
backwards.
Light green
Used to detect the ON/OFF status of the
handbrake. This lead must be
connected to the power supply side of
the handbrake switch.
Connection method
Clamp the lead (1) then clamp firmly
with needle-nosed pliers (2).
Power supply side
Handbrake switch
Earth side
Speaker leads
White: Front left + or high range left +
White/black: Front left – or high range
left –
Grey: Front right + or high range right +
Grey/black: Front right – or high range
right –
Green: Rear left + or middle range left +
Green/black: Rear left – or middle range
left –
Violet: Rear right + or middle range
right +
Violet/black: Rear right – or middle
range right –
ISO connector
In some vehicles, the ISO connector
may be divided into two. In this case, be
sure to connect to both connectors.
NOTE
The position of the handbrake switch
depends on the vehicle model. For details,
consult the vehicle Owner’s Manual or
dealer.
Important
The speaker leads are not used when this
connection is in use.
Power amp (sold
separately)
Without internal amp
