8.1.2 Discovery Info
Choose the menu Ethernet OAM→ Basic Config→ Discovery Info to load the following page.

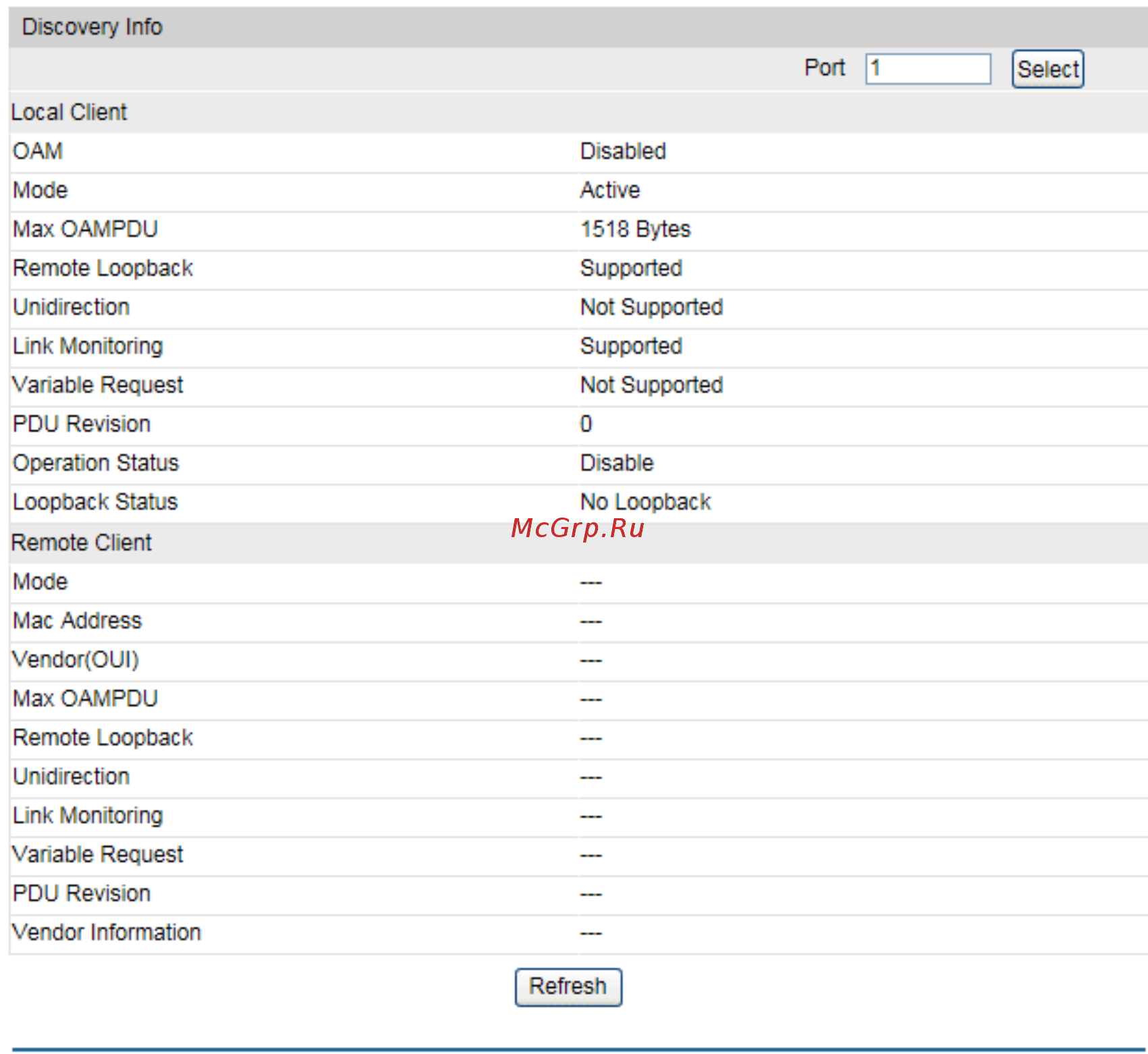

Figure 8-5 Discovery Info
The following entries are displayed on this screen:
Local Client
The local client part shows the information of the local OAM entity.
OAM: Displays whether the OAM function is enabled or disabled on
the selected port.
Mode:
Displays the OAM mode of the selected port.
Max OAMPDU:
Displays the maximum size of the OAMPDU.
Remote Loopback: Displays whether the local client s
upports remote loopback
function.
