137

Unsupported

OAMPDUs:

Displays the number of unsupported OAMPDUs that have been

transmitted or received on the port.

Frames Lost Due To

OAM:

Displays the number of frames that would otherwise be

transmitted by the OAM sublayer, but did not due to an internal

OAM sublayer transmit error.

8.5.2 Event Log

On this page, you can view the detailed Ethernet OAM event log information of a specific port.

The device will recount the numbers every time you click the clear button or the device is

rebooted.

Choose the menu Ethernet OAM→Statistics→Event Log to load the following page.

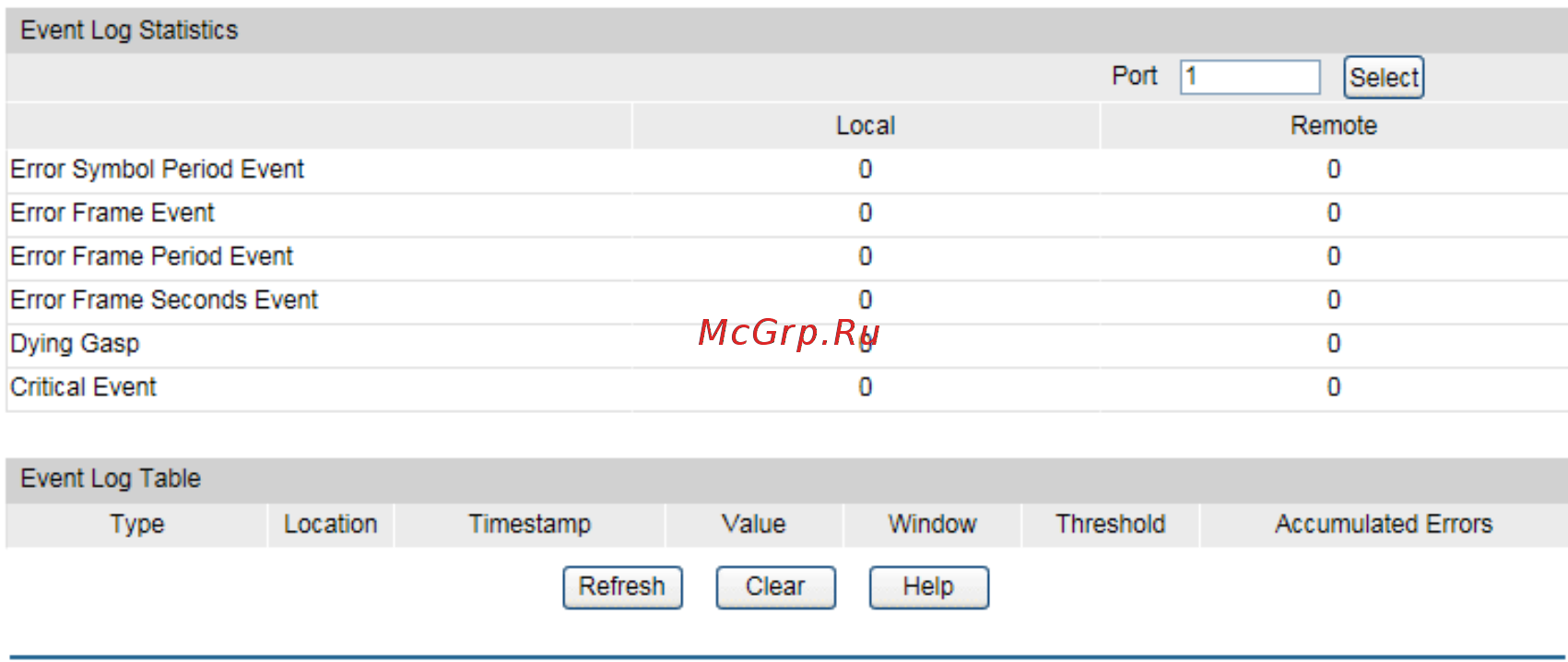

Figure 8-10 Event Log

The following entries are displayed on this screen:



Event Log Statistics

Port Select: Click the Select button to quick-select the corr

esponding port

based on the port number you entered.

Local: Displays the number of link events that have occurred on the

local link.

Remote: Displays the number of link events that have occurred on the

remote link.

Error Symbol Event: Displays the number of error symbol period link events that

have occurred on the local link or remote link.

Error Frame Event: Displays the number of error frame link events that have

occurred on the local link or remote link.

Error Frame Period

Event:

Displays the number of error frame period link events that have

occurred on the local link or remote link.
