Delete VLAN. Optional. On the VLAN→Protocol VLAN→Protocol VLAN

page, select the desired entry to delete the

corresponding VLAN by clicking the Delete button.

6.4 Application Example for 802.1Q VLAN

 Network Requirements

 Switch A is connecting to PC A and Server B;

 Switch B is connecting to PC B and Server A;

 PC A and Server A is in the same VLAN;

 PC B and Server B is in the same VLAN;

 PCs in the two VLANs cannot communicate with each other.

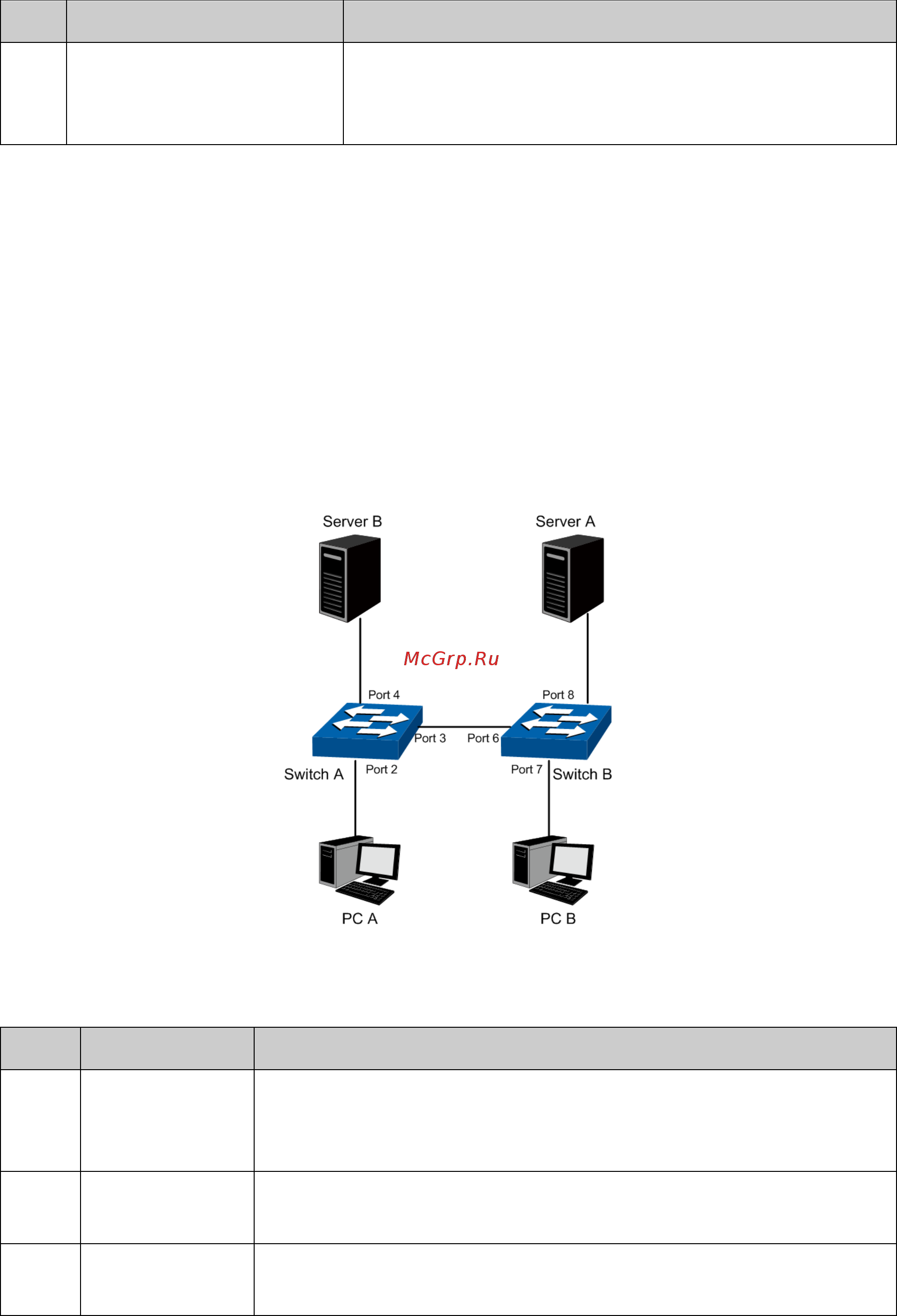

 Network Diagram

 Configuration Procedure

 Configure switch A

Step

Operation

Description

Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 2, Port 3 and Port 4 as ACCESS, TRUNK and

ACCESS respectively

Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 10, owning Port 2 and Port 3.

Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 20, owning Port 3 and Port 4.
