Tp-Link T2500-28TC V2 [170/342] Snooping config

159

The IGMP Snooping function can be implemented on the following pages: Snooping Config,

VLAN Config, Port Config, IP-Range, Multicast VLAN, Static Multicast IP and Packet

Statistics.

10.1.1 Snooping Config

To configure the IGMP Snooping on the switch, please firstly configure IGMP global

configuration and related parameters on this page.

If the multicast address of the received multicast data is not in the multicast address table, the

switch will broadcast the data in the VLAN. When Unknown Multicast Discard feature is enabled,

the switch drops the received unknown multicast so as to save the bandwidth and enhance the

process efficiency of the system. Please configure this feature appropriate to your needs.

Choose the menu Multicast →IGMP Snooping →Snooping Config to load the following page.

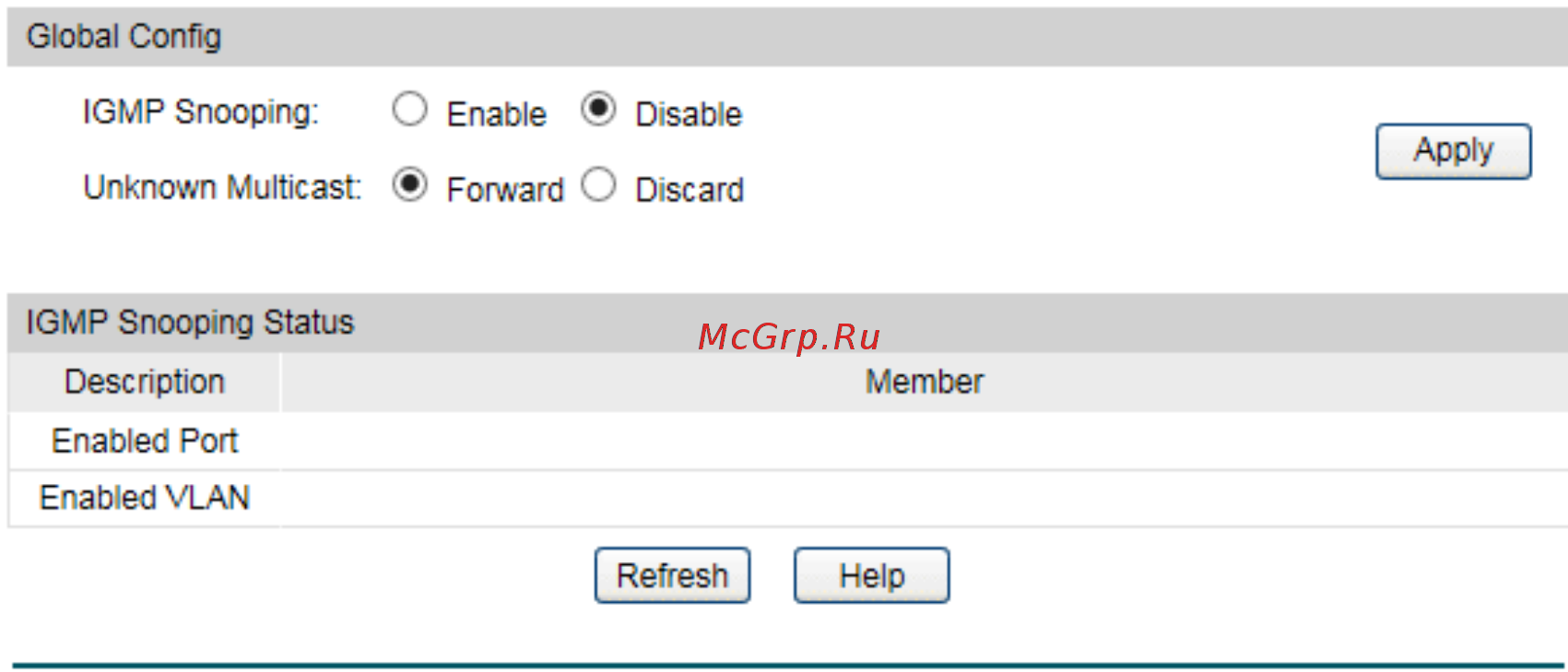

Figure 10-5 Basic Config

The following entries are displayed on this screen:



Global Config

IGMP Snooping:

Enable/Disable IGMP Snooping function globally on the switch.

Unknown Multicast:

Select the operation for the switch to process unknown

multicast, Forward or Discard.



IGMP Snooping Status

Description:

Displays IGMP Snooping status.

Member:

Displays the member of the corresponding status.

10.1.2 VLAN Config

Multicast groups established by IGMP Snooping are based on VLANs. On this page you can

configure different IGMP parameters for different VLANs.

Choose the menu Multicast→IGMP Snooping→VLAN Config to load the following page.
