316

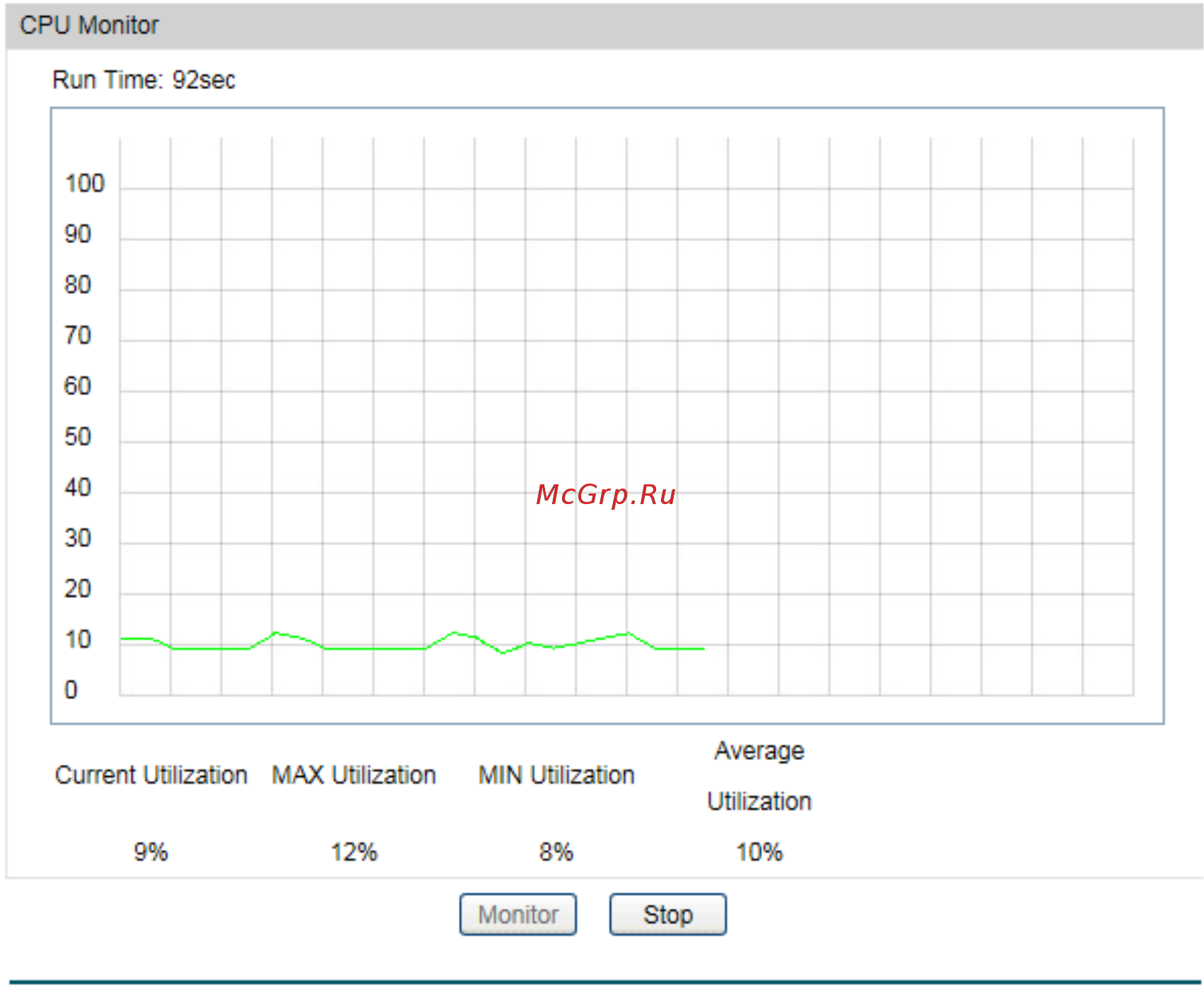

Figure 17-1 CPU Monitor
Click the Monitor button to enable the switch to monitor and display its CPU utilization rate
every four seconds.
17.1.2 Memory Monitor
Choose the menu Maintenance→System Monitor→Memory Monitor to load the following
page.
