207

Rule ID:

Enter the rule ID.

Operation:

Select the operation for the switch to process packets which match

the rules.

 Permit: Forward packets.



Deny: Discard Packets.

S-MAC:

Enter the source MAC address contained in the rule.

D-MAC:

Enter the destination MAC address contained in the rule.

MASK:

Enter MAC address mask. If it is set to 1, it must strictly match the

address.

VLAN ID:

Enter the VLAN ID contained in the rule.

EtherType:

Enter EtherType contained in the rule.

User Priority: Select the user priority conta

ined in the rule for the tagged packets

to match.

Time-Range:

Select the time-range for the rule to take effect.

12.2.4 Standard-IP ACL

Standard-IP ACLs analyze and process data packets based on a series of match conditions,

which can be the source IP addresses and destination IP addresses carried in the packets.

Choose the menu ACL→ACL Config→Standard-IP ACL to load the following page.

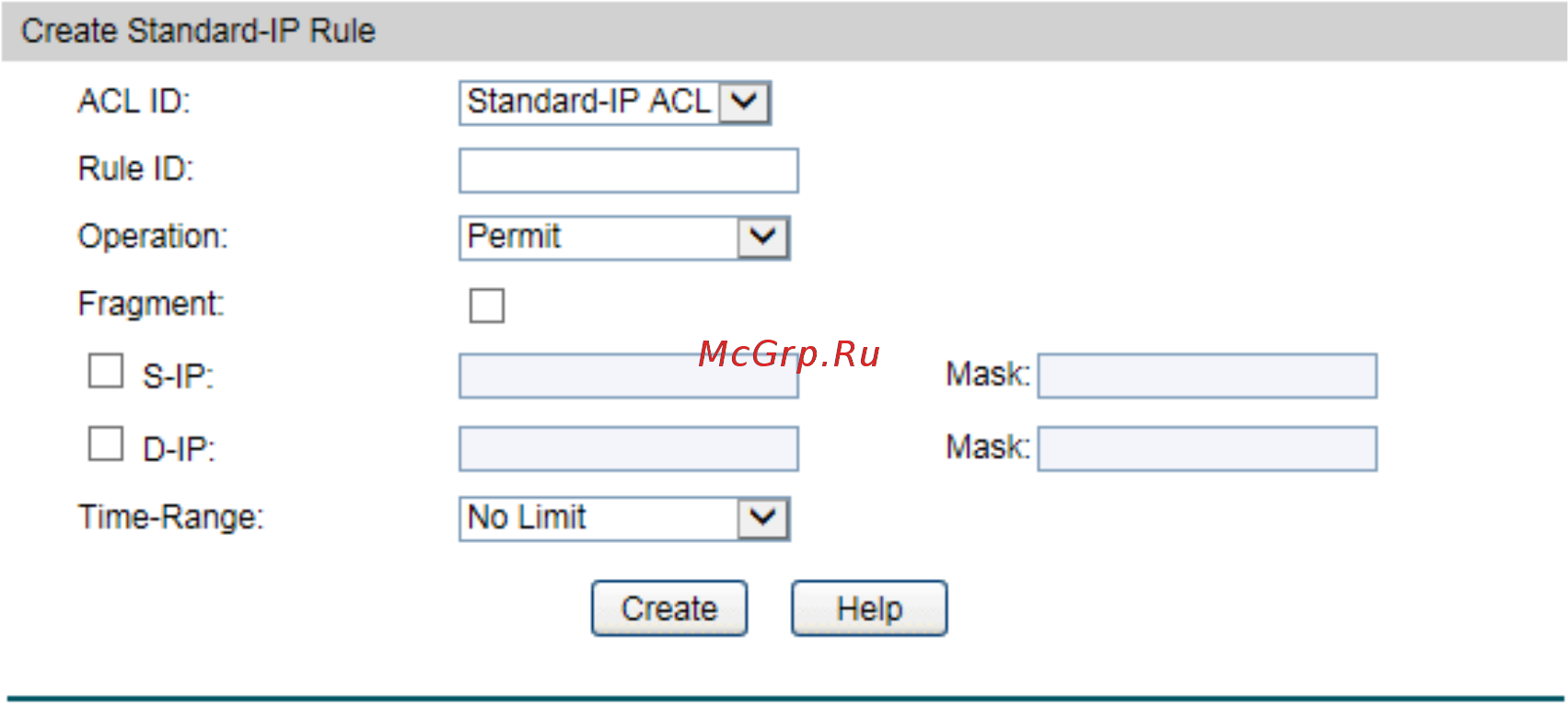

Figure12-7 Create Standard-IP Rule

The following entries are displayed on this screen:



Create Standard-IP Rule

ACL ID:

Select the desired Standard-IP ACL for configuration.

Rule ID:

Enter the rule ID.
