Tp-Link T2500-28TC V2 [222/342] Policy config

211

Fragment: Select if the rule will take effect o

n the fragment packets. When the

fragment is selected, this rule will process all the fragments and the

last piece of fragment will be always forwarded.

S-IP:

Enter the source IP address contained in the rule.

D-IP:

Enter the destination IP address contained in the rule.

Mask:

Enter IP address mask. If it is set to 1, it must strictly match the

address.

Time-Range:

Select the time-range for the rule to take effect.

12.3 Policy Config

A Policy is used to control the data packets those match the corresponding ACL rules by

configuring ACLs and actions together for effect. The operations here include stream mirror,

stream condition, QoS remarking and redirect.

The Policy Config can be implemented on Policy Summary, Police Create and Action Create

pages.

12.3.1 Policy Summary

On this page, you can view the ACL and the corresponding operations in the policy.

Choose the menu ACL→Policy Config→Policy Summary to load the following page.

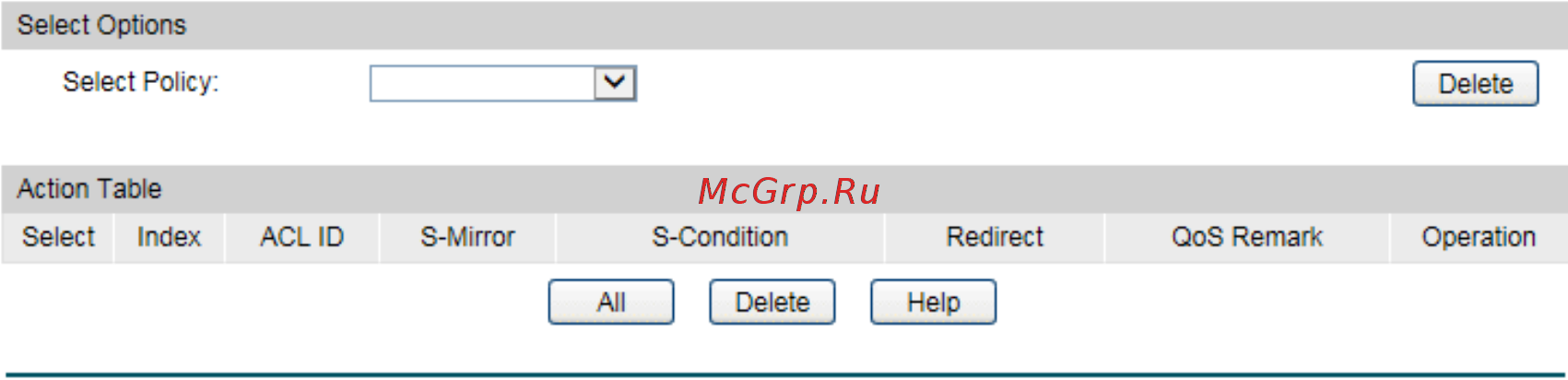

Figure 12-9 Policy Summary

The following entries are displayed on this screen:



Search Options

Select Policy:

Select name of the desired policy for view. If you want to delete

the desired policy, please click the Delete button.



Action Table

Select:

Select the desired entry to delete the corresponding policy.

Index:

Enter the index of the policy.

ACL ID:

Displays the ID of the ACL contained in the policy.

S-Mirror:

Displays the source mirror port of the policy.
