210

Choose the menu ACL→ACL Config→Combined ACL to load the following page.

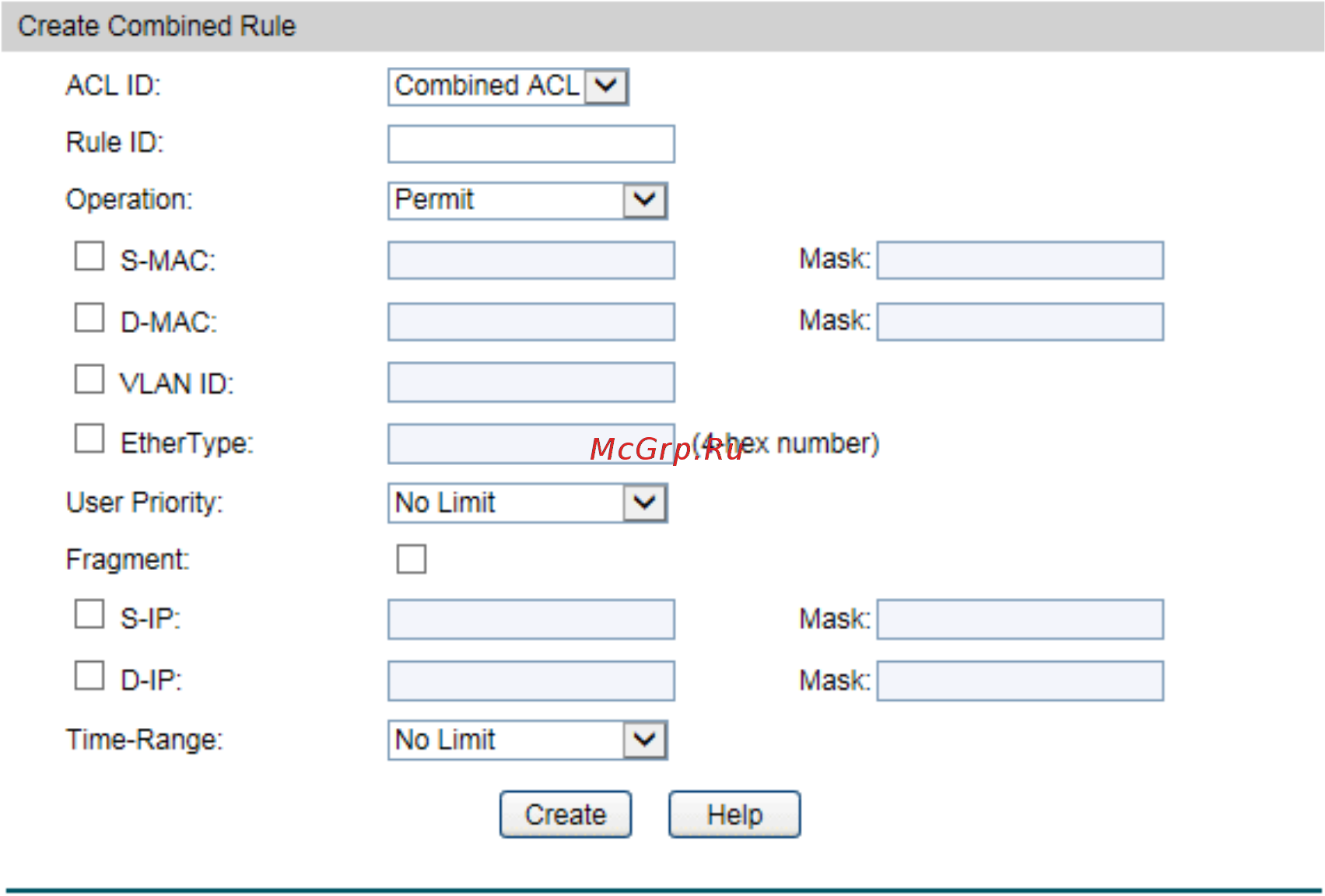

Figure 12-9 Creat Combined ACL

The following entries are displayed on this screen:



Create combined Rule

ACL ID:

Select the desired Combined ACL for configuration.

Rule ID:

Enter the rule ID.

Operation:

Select the operation for the switch to process packets which match

the rules.

 Permit: Forward packets.



Deny: Discard Packets.

S-MAC:

Enter the source MAC address contained in the rule.

D-MAC:

Enter the destination MAC address contained in the rule.

Mask: Enter IP address mask. If it is set to 1, it must strictly match

the

address.

VLAN ID

Enter the VLAN ID contained in the rule.

EtherType

Enter EtherType contained in the rule.

User Priority

Select the user priority contained in the rule for the tagged packets

to match.
