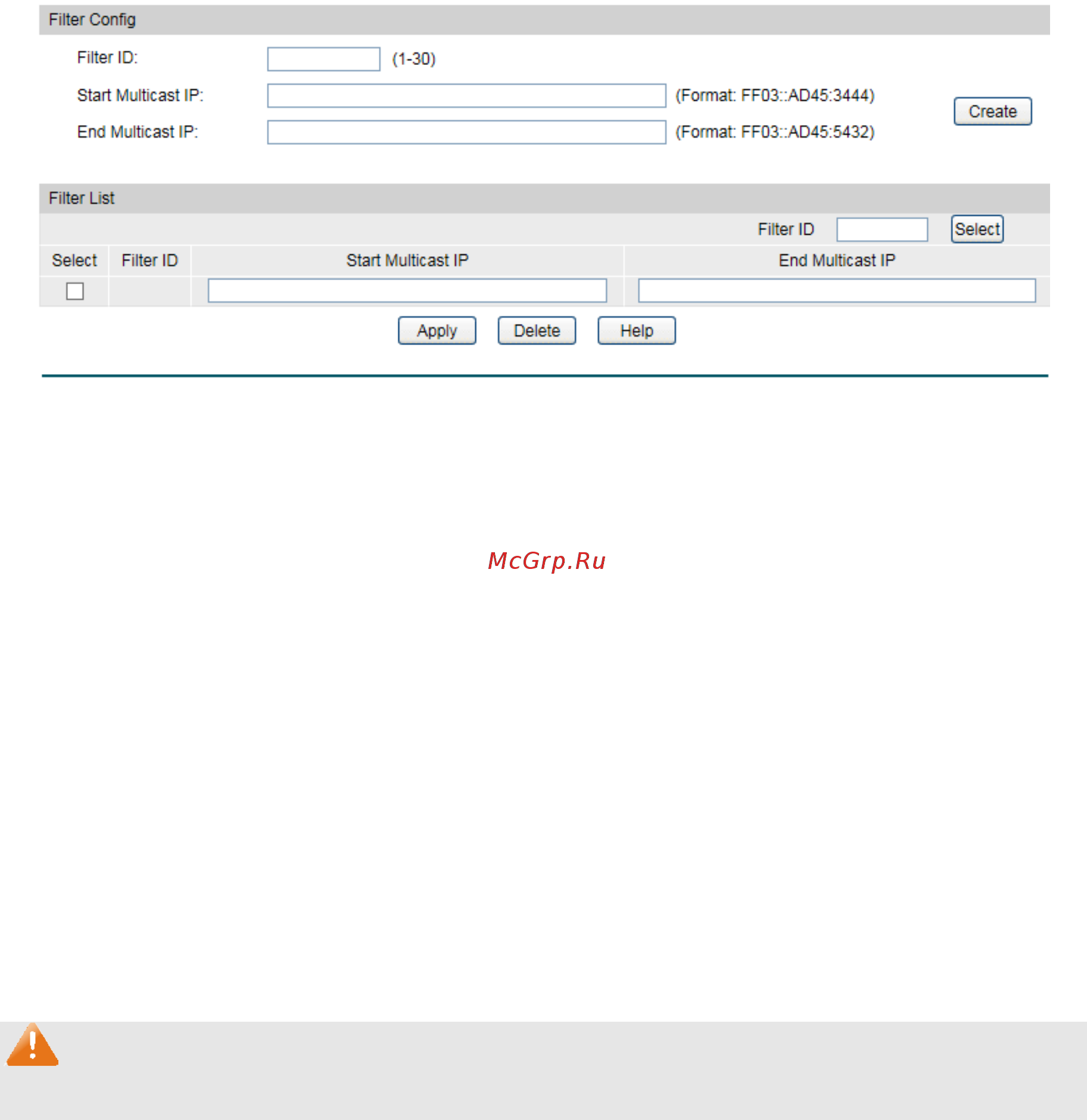

Figure 10-16 Filter Config
The following entries are displayed on this screen:
Filter Config
Filter ID:
Enter the Filter ID which identifies the filter.
Start Multicast
IP:
Enter the start of the IP range.
End Multicast IP:
Enter the end of the IP range.
Filter List
Select:
Select the filter ID you want to change.
Filter ID:
Displays the filter ID number.
Start Multicast IP:
Displays the start of the IP range.
End Multicast IP:
Displays the end of the IP range.
Note:
The max number of filter entries is 30.
10.2.4 Port Config
On this page you can configure MLD Snooping function with each single port.
Choose the menu Multicast→MLD Snooping→Port Config to load the following page.
