Choose the menu Network Security→ARP Inspection→ARP Statistics to load the following
page.

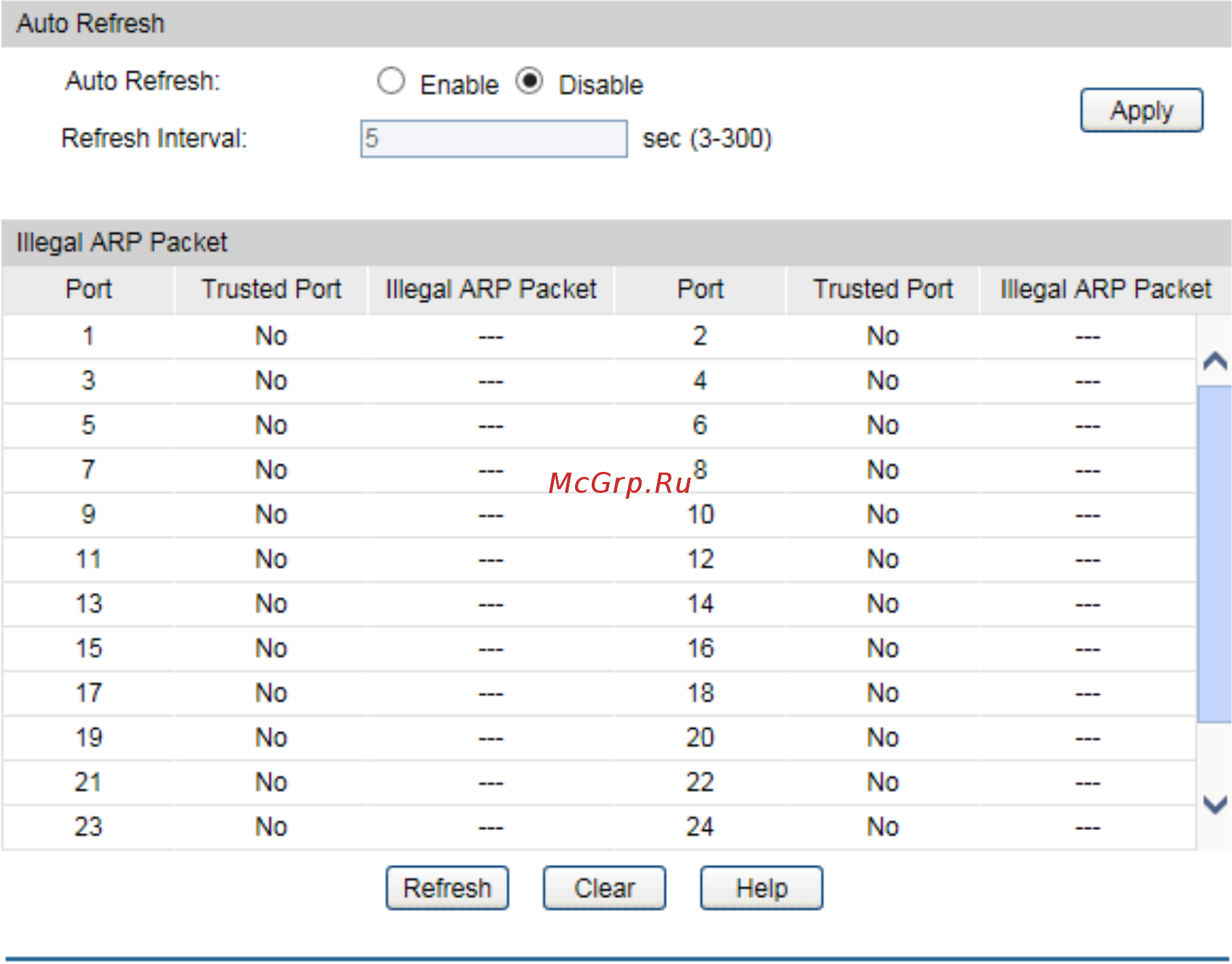

Figure 13-16 ARP Statistics
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh:
Enable/Disable the Auto Refresh feature.
Refresh Interval:
Specify the refresh interval to display the ARP Statistics.
Illegal ARP Packet
Port:
Displays the port number.
Trusted Port:
Indicates the port is an ARP Trusted Port or not.
Illegal ARP Packet:
Displays the number of the received illegal ARP packets.
13.4 IP Source Guard
IP Source Guard is to filter the IP packets based on the IP-MAC Binding entries. Only the
packets matched to the IP-MAC Binding rules can be processed, which can enhance the
bandwidth utility.
