Choose the menu System→Access Security→Access Control to load the following page.

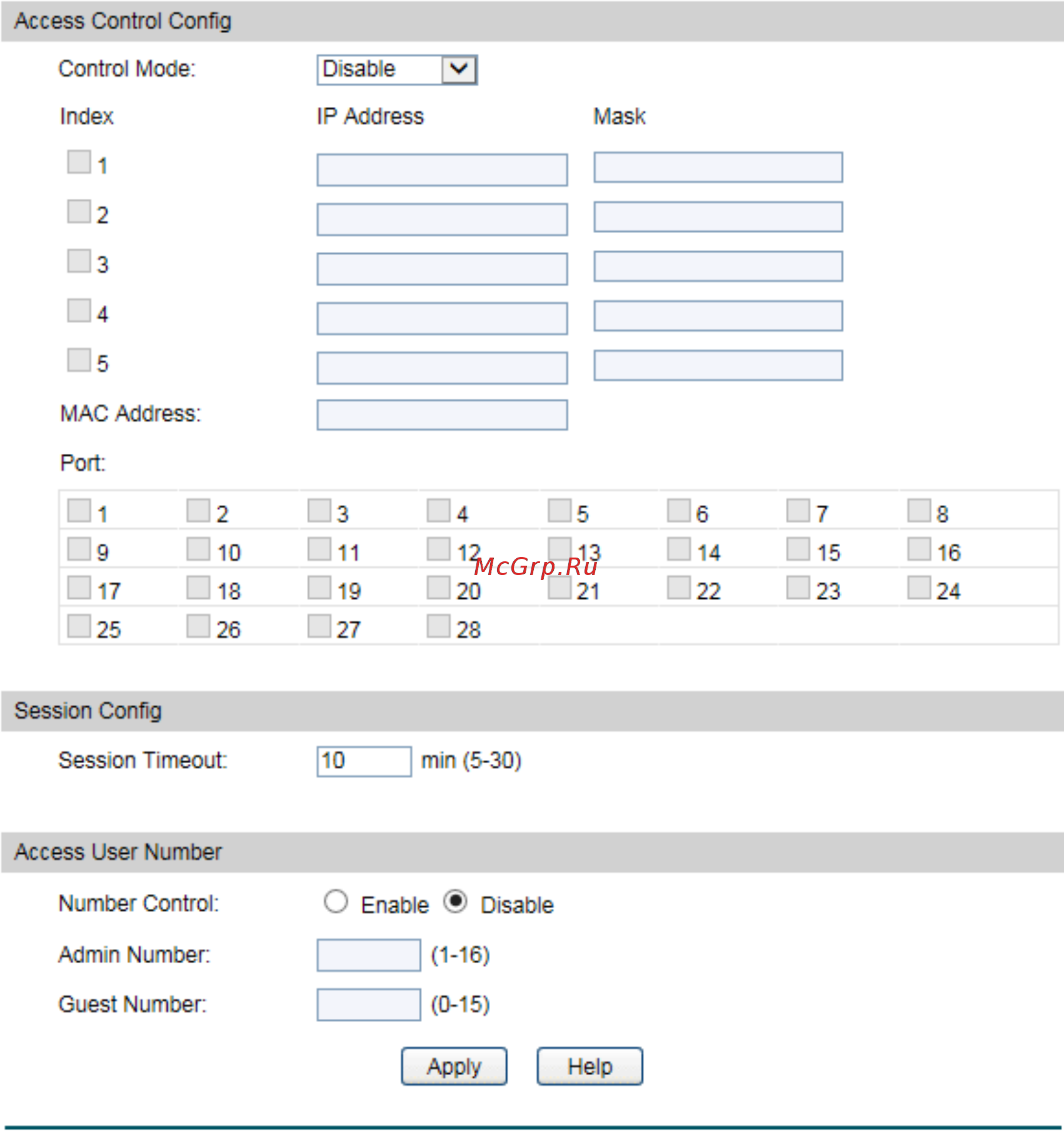

Figure 4-18 Access Control

The following entries are displayed on this screen:



Access Control Config

Control Mode:

Select the control mode for users to log on to the Web

management page.

 IP-based: Select this option to limit the IP-

range of the users

for login.

 MAC-based:

Select this option to limit the MAC Address of

the users for login.



Port-based: Select this option to limit the ports for login.

IP Address&Mask

：

These fields can be available for configuration only when

IP-based mode is selected. Only the users within the IP-

range

you set here are allowed for login.
