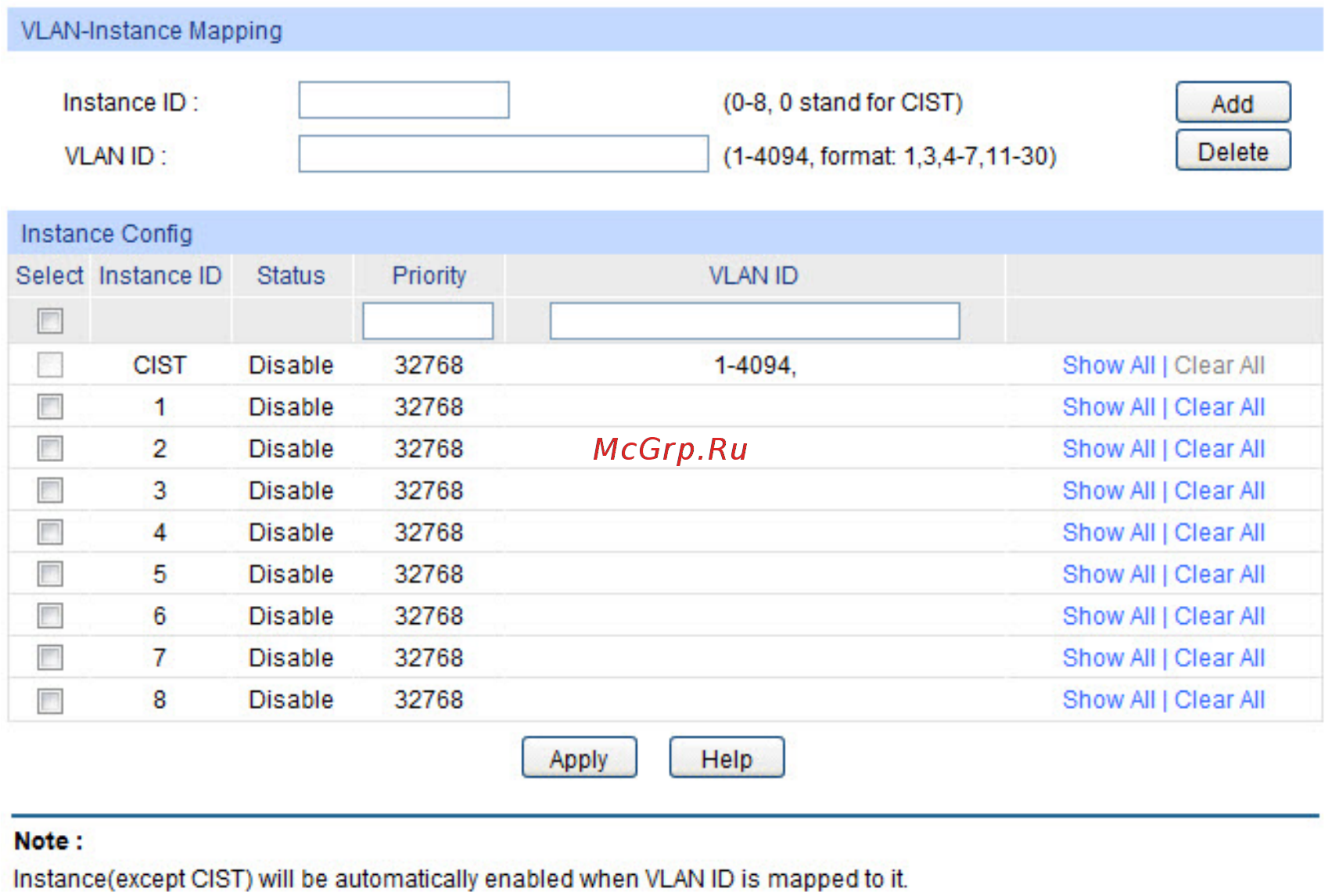

Figure 7-8 Instance Config

The following entries are displayed on this screen:



VLAN-Instance Mapping

Instance ID: Enter the corresponding instance ID.

VLAN ID:

Enter the desired VLAN ID. After modification here, the new VLAN ID

will be added to the corresponding instance ID and the previous

VLAN ID won’t be replaced.



Instance Table

Select: Select the desired Instance ID for configuration. It is multi-optional.

Instance ID: Displays Instance ID of the switch.

Status: Displays status of the instance.

Priority:

Enter the priority of the switch in the instance. It is an important

criterion on determining if the switch will be chosen as the root bridge

in the specific instance.

VLAN ID: Enter the VLAN ID which belongs to the corresponding instance ID.

After modification here, the previous VLAN ID will be cleared and

mapped to the CIST.

Clear All: Click Clear All to clear up all VLAN IDs from the instance ID. The

cleared VLAN ID will be automatically mapped to the CIST.

7.3.3 Instance Port Config

A port can play different roles in different spanning tree instance. On this page you can configure

the parameters of the ports in different instance IDs as well as view status of the ports in the

specified instance.
