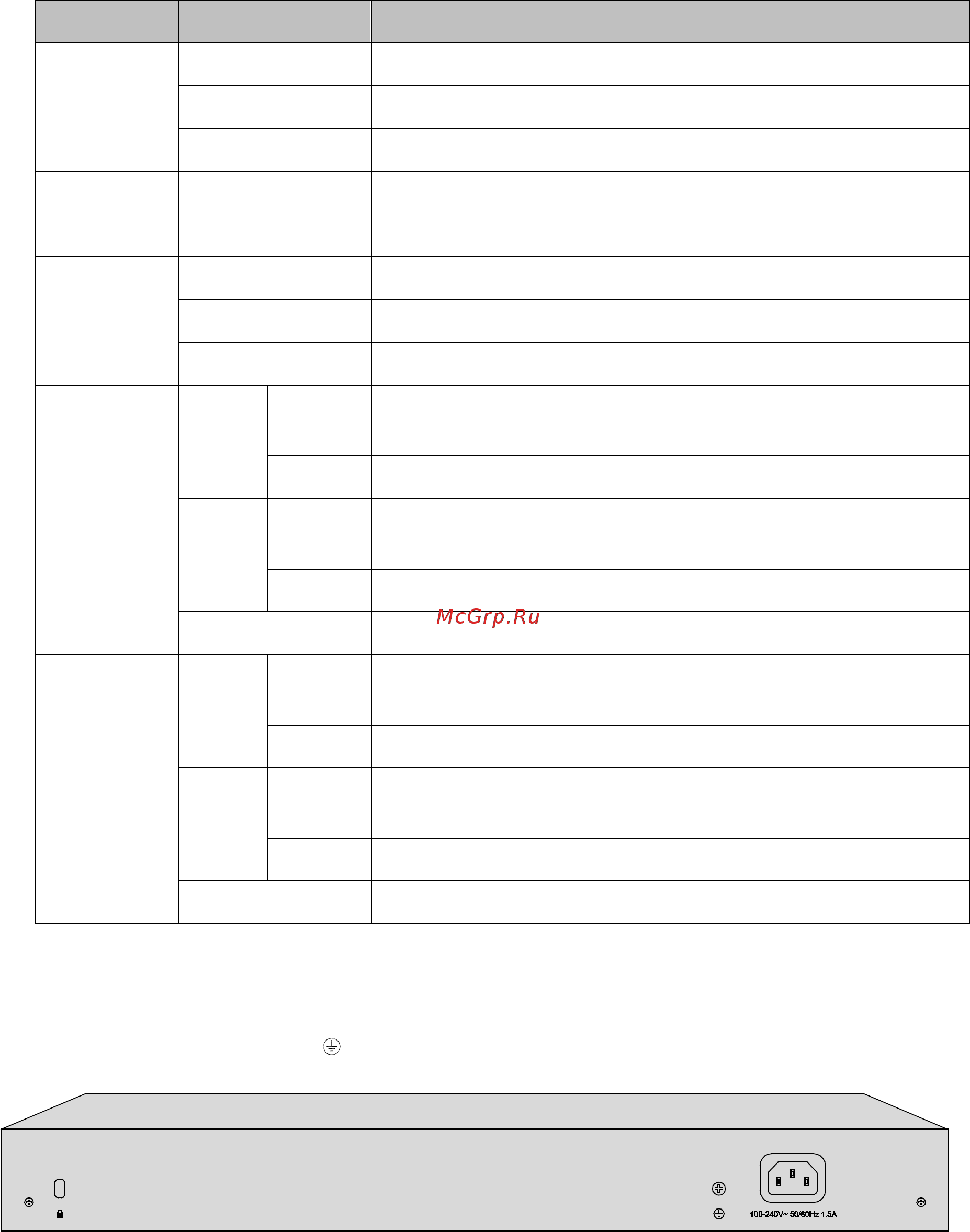

LEDs
Name Status Indication
PWR
On The switch is powered on
Flashing Power supply is abnormal
Off The switch is powered off or power supply is abnormal
SYS
Flashing
The switch is working normally
On/Off The switch is working abnormally
FAN
Green All the fans work properly
Yellow Not all the fans work properly
Off The switch is working abnormally
Link/Act
(Port 1-12)
Green
On
There is a 10Gbps device connected to the corresponding
port but no activity
Flashing Data is being transmitted or received
Yellow
On
There is a 100/1000Mbps device connected to the
corresponding port but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Link/Act
(Port 13-16)
Green
On
There is a 10Gbps device connected to the corresponding
port but no activity
Flashing Data is being transmitted or received
Yellow
On
There is a 1G
bps device connected to the corresponding
port but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
2.2.2 Rear Panel
The rear panel of T1700X-16TS features a power socket, a Kensington security slot and a
Grounding Terminal (marked with
). Here we take for example.
Figure 2-2 Rear Panel
AC Power Socket: Connect the female connector of the power cord here, and the male
connector to the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
7
