Configuration Procedure
Enter the Enable Password and click Enable button to elevate the current logged-in user from
guest to admin. Only admin users can configure the following AAA settings.
Tips:
If the Enable password is verified locally, the Enable password should be previously set by the
admin users using the command lines. For more details please refer to the command enable
password in the Command Line Interface Guide on the resource CD.
12.6.3 RADIUS Server Config
This page is used to configure the authentication servers running the RADIUS security protocols.
Choose the menu Network Security→ AAA→ RADIUS Conifg to load the following page.

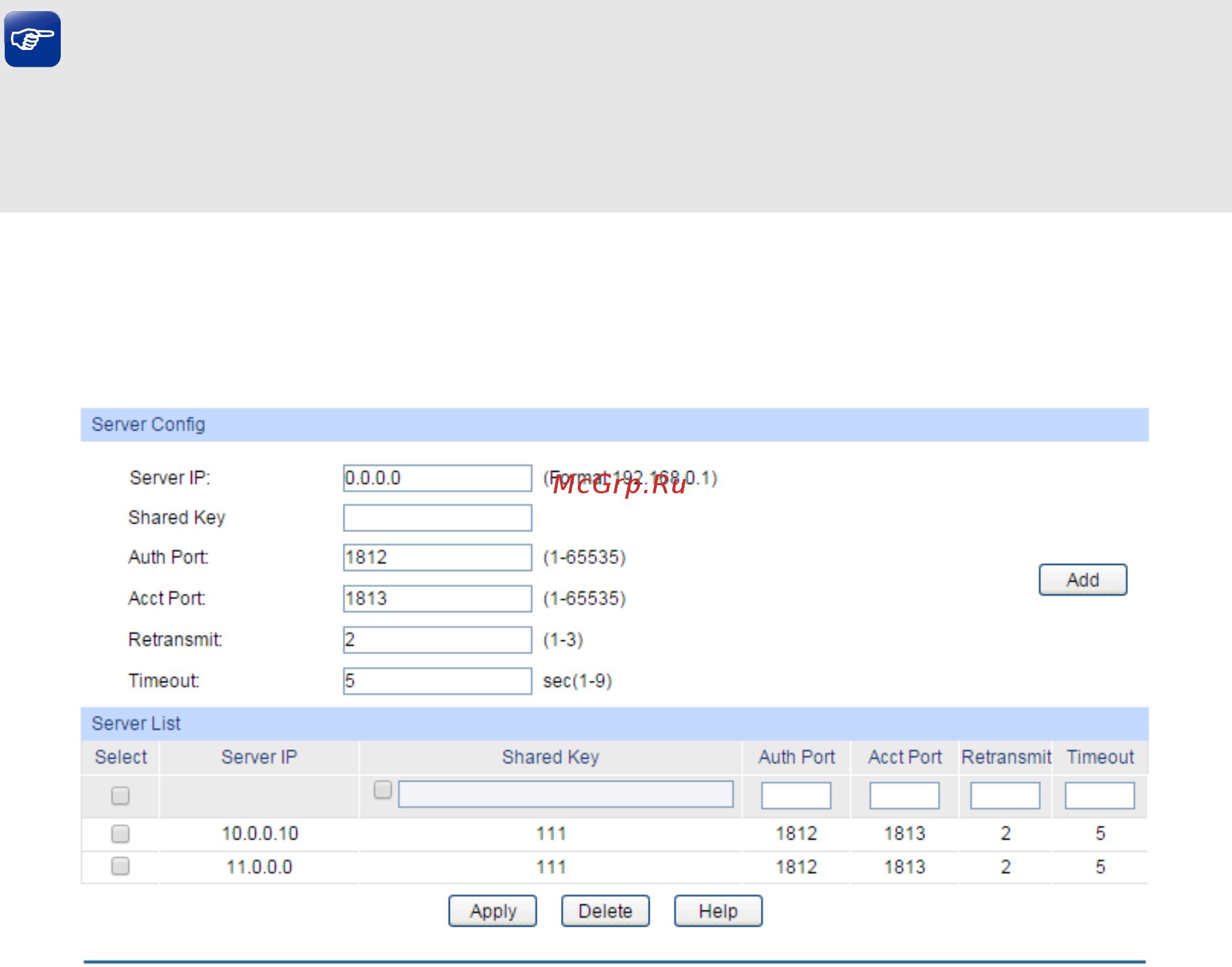

Figure 12-26 RADIUS Server Config
Configuration Procedure
Configure the RADIUS server’s IP and other relevant parameters under the Server Config.
View, edit and delete the configured RADIUS servers in the Server list.
Entry Description
Server IP
: Enter the IP of the server running the RADIUS secure protocol.
Shared Key
: Enter the shared key between the RADIUS server and the switch.
The RADIUS server and the switch use the key string to encrypt
passwords and exchange responses.
Auth Port
:
Specify the UDP destination port on the RADIUS server for
authentication requests.
Acct Port
:
Specify the UDP destination port on the RADIUS server for
accounting requests.
Retransmit
: Specify the number of times a request is resent to a server if the
server does not respond.
Timeout
: Specify the time interval that the switch waits for the server to reply
before resending.
217
