11.1.5 Extend-IP ACL

Extend-IP ACLs analyze and process data packets based on a series of match conditions, which

can be the source IP addresses, destination IP addresses, IP protocol and other information of this

sort carried in the packets.

Choose the menu ACL→ACL Config→Extend-IP ACL to load the following page.

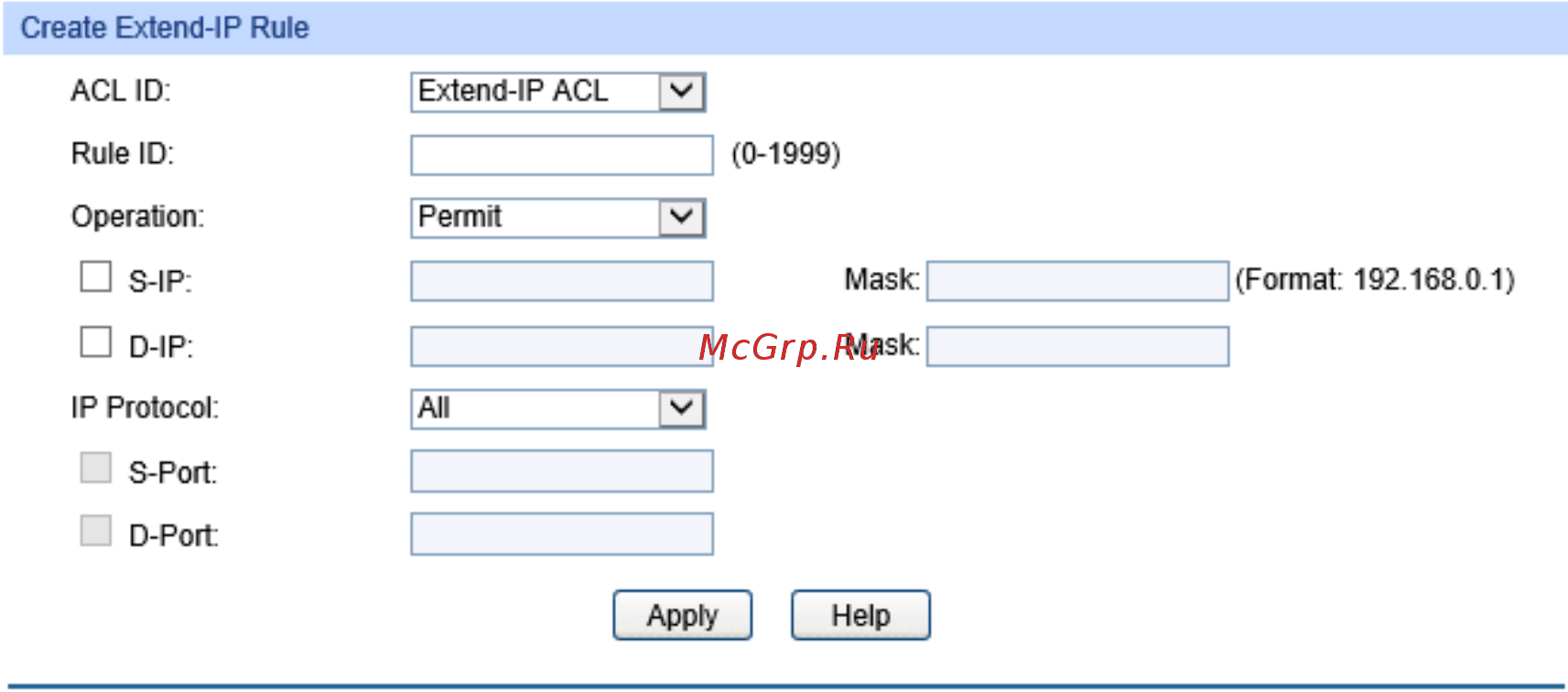

Figure 11-5 Create Extend-IP Rule

The following entries are displayed on this screen:



Create Extend-IP ACL

ACL ID: Select the desired Extend-IP ACL for configuration.

Rule ID: Enter the rule ID.

Operation:

Select the operation for the switch to process packets which match the

rules.

 Permit: Forward packets.

 Deny: Discard Packets.

S-IP: Enter the source IP address contained in the rule.

D-IP: Enter the destination IP address contained in the rule.

Mask:

Enter IP address mask. If it is set to 1, it must strictly match the

address.

IP Protocol: Select IP protocol contained in the rule.

S-Port:

Configure TCP/IP source port contained in the rule when TCP/UDP is

selected from the pull-down list of IP Protocol.

D-Port:

Configure TCP/IP destination port contained in the rule when

TCP/UDP is selected from the pull-down list of IP Protocol.

11.1.6 IPv6 ACL

IPv6 ACLs analyze and process data packets based on a series of match conditions, such as the

source IPv6 addresses, destination IPv6 addresses and port number carried in the packets.
