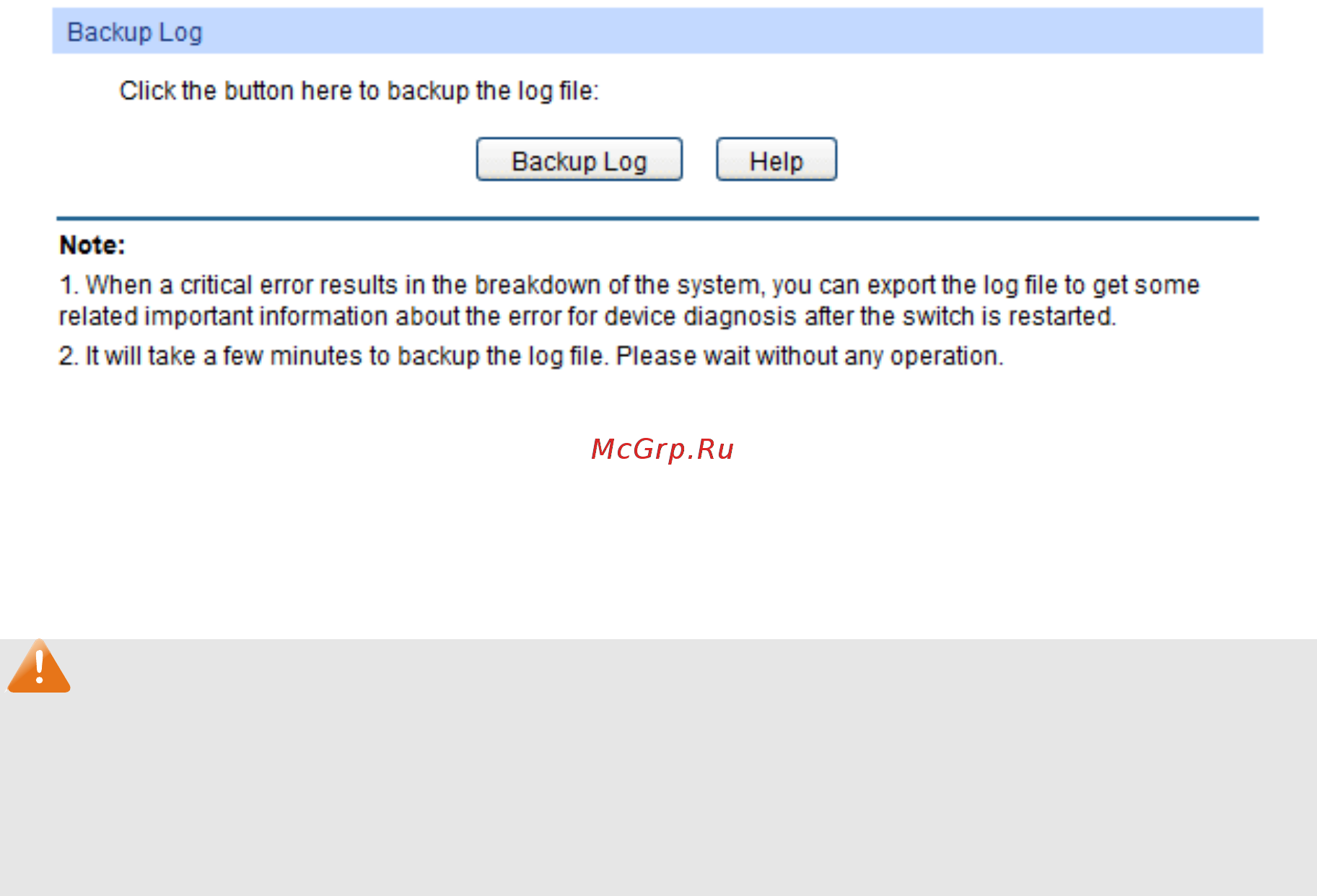

Choose the menu Maintenance→Log→Backup Log to load the following page.
Figure 15-6 Backup Log
The following entry is displayed on this screen:
Backup Log
Backup Log
: Click the Backup Log button to save the log as a file to your computer.
Note:
1. When a critical error results in the breakdown of the system, you can export the log file to get
some related important information about the error for device diagnosis after the switch is
restarted.
2. It will take a few minutes to backup the log file. Please wait without any operation.
15.3 Device Diagnose
This switch provides Cable Test for device diagnose.
15.3.1 Cable Test
Cable Test functions to test the connection status of the cable connected to the switch, which
facilitates you to locate and diagnose the trouble spot of the network.
Choose the menu Maintenance→Device Diagnose→Cable Test to load the following page.
262
