Port Priority:

Specify a Port Priority for the port. This value determines the priority

of the port to be selected as the dynamic agg

regation group

member. The port with smaller Port Priority will be considered as the

preferred one. If the two port priorities are equal; the port with

smaller port number is preferred.

Mode:

Specify LACP mode for your selected port.

Status:

Enable/Disable the LACP feature for your selected port.

LAG:

Displays the LAG number which the port belongs to.

5.3 Traffic Monitor

The Traffic Monitor function, monitoring the traffic of each port, is implemented on the Traffic

Summary and Traffic Statistics pages.

5.3.1 Traffic Summary

Traffic Summary screen displays the traffic information of each port, which facilitates you to

monitor the traffic and analyze the network abnormity.

Choose the menu Switching→Traffic Monitor→Traffic Summary to load the following page.

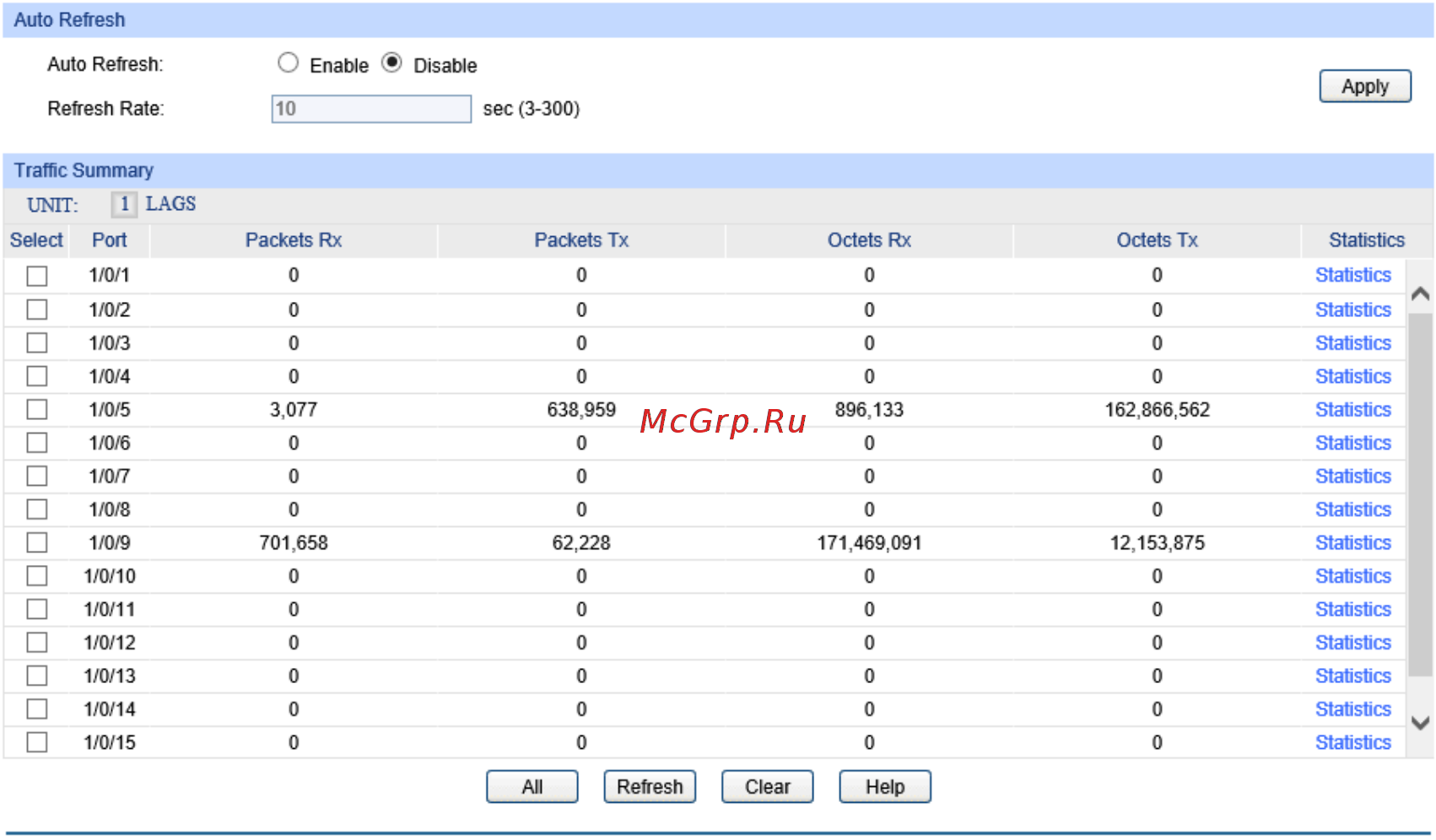

Figure 5-12 Traffic Summary

The following entries are displayed on this screen:



Auto Refresh

: Allows you to Enable/Disable refreshing the

Traffic Summary

automatically.

Refresh Rate

: Enter a value in seconds to specify the refresh interval.



Traffic Summary

UN I T:

1/LAGS: Click 1 to show the information of the physical ports. Click LAGS

show the information of the link aggregation groups.
