12.2.1 Global Config
Choose the menu Network Security→DHCP Snooping→Global Config to load the following
page.

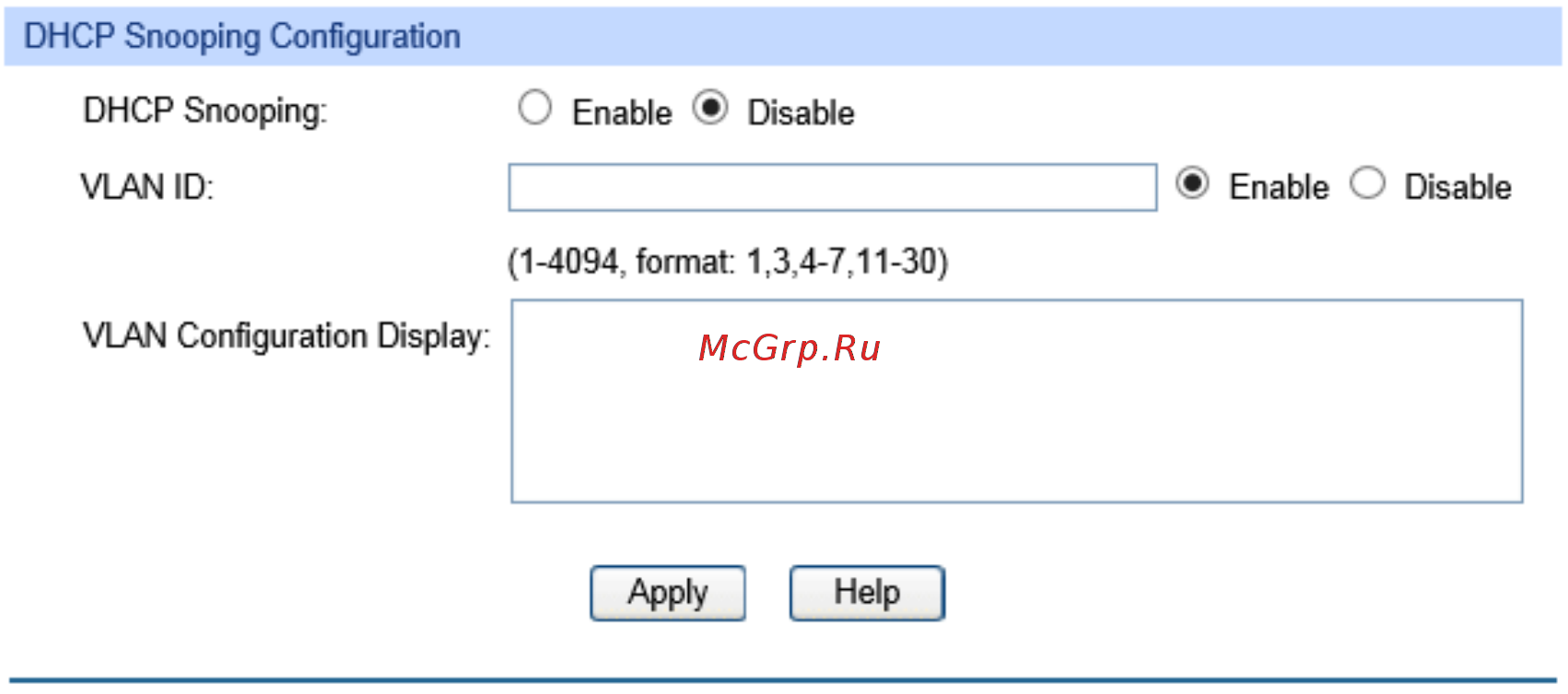

Figure 12-8 DHCP Snooping
The following entries are displayed on this screen:
DHCP Snooping Configuration
DHCP Snooping:
Enable/Disable the DHCP Snooping function globally.
VLAN ID:
Enable/Disable the DHCP Snooping function in the
specified VLAN.
VLAN Configuration Display:
Display the VLAN ID of which the DHCP Snooping function
is enabled.
12.2.2 Port Config
Choose the menu Network Security→DHCP Snooping→Port Config to load the following page.
196
