Tp-Link T1700X-16TS V1 [182/281] Port config
![Tp-Link T1700X-16TS V1 [182/281] Port config](/views2/1210234/page182/bgb6.png)
Choose the menu QoS→Voice VLAN→Global Config to load the following page.

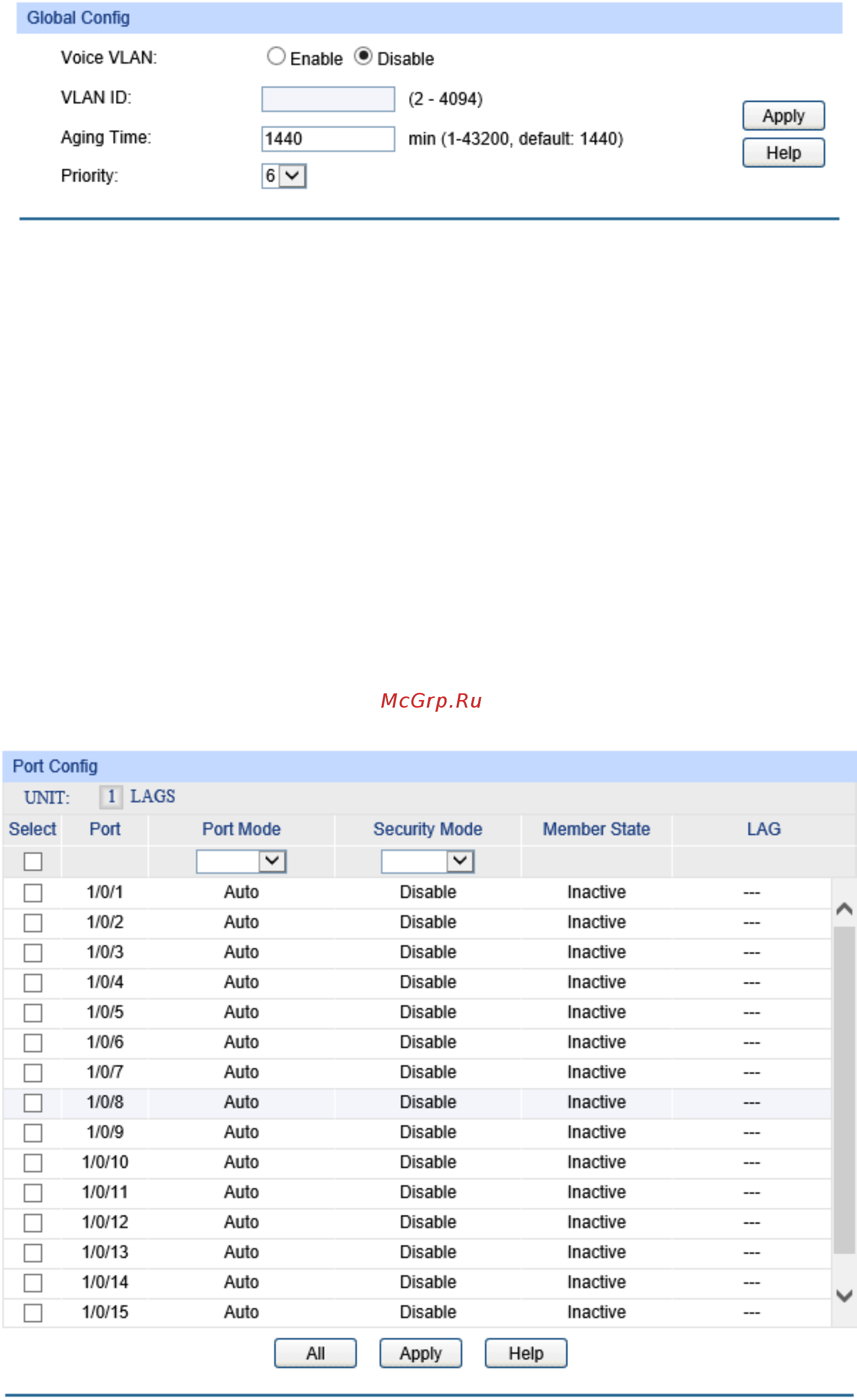

Figure 10-12 Global Configuration
The following entries are displayed on this screen:
Global Config
Voice VLAN: Enable/Disable Voice VLAN function.
VLAN ID: Enter the VLAN ID of the voice VLAN.
Aging Time:
Specifies the living time of the member port in auto mode after the
OUI address is aging out.
Priority: Select the priority of the port when sending voice data.
10.3.2 Port Config
Before the voice VLAN function is enabled, the parameters of the ports in the voice VLAN should
be configured on this page.
Choose the menu QoS→Voice VLAN→Port Config to load the following page.
Figure 10-13 Port Config
170
