11.4.2 Port Binding
On this page you can bind a policy to a port.
Choose the menu ACL→ACL Binding→Port Binding to load the following page.

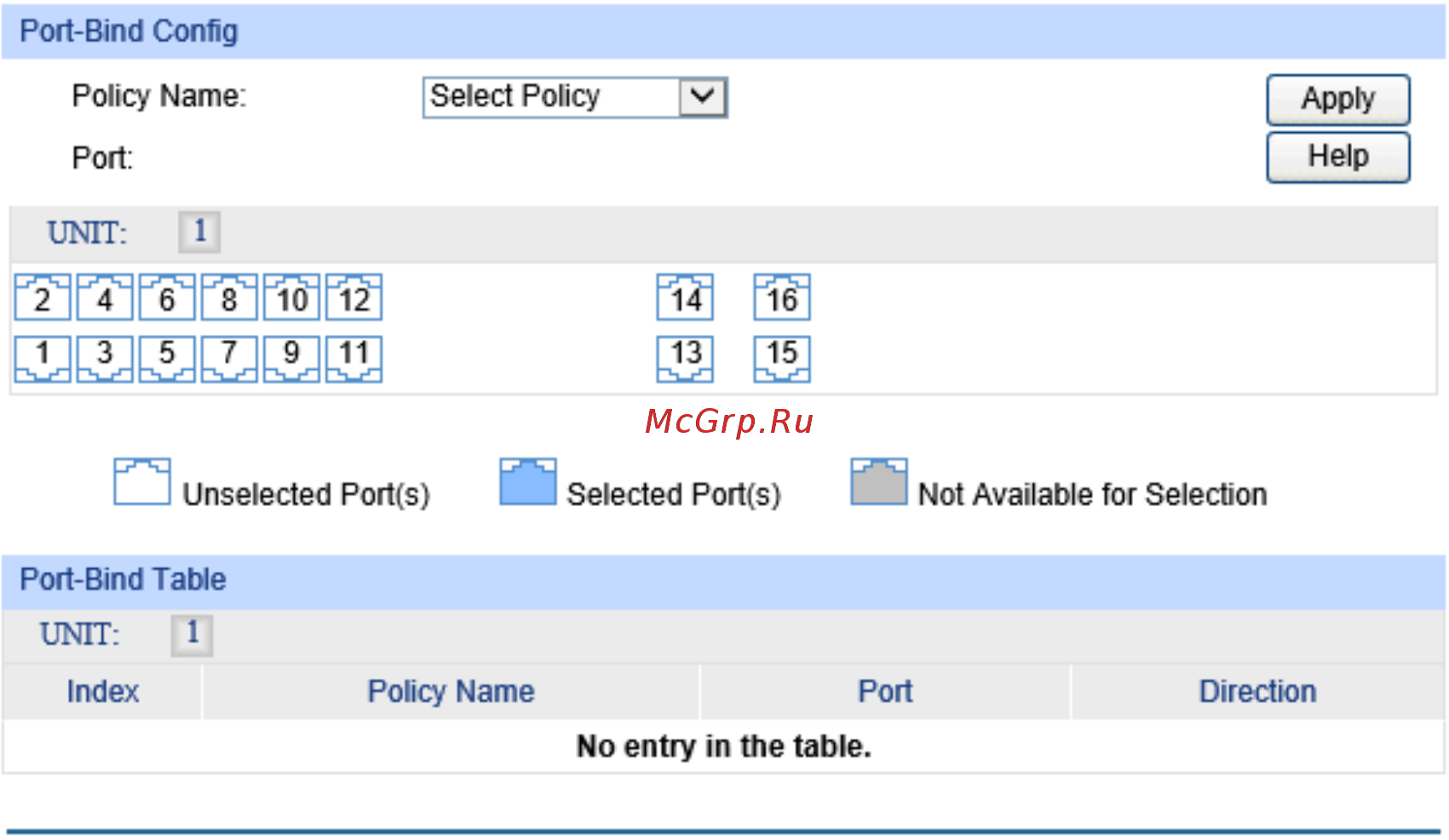

Figure 11-14 Bind the policy to the port
The following entries are displayed on this screen:
Port-Bind Config
Policy Name: Select the name of the policy you want to bind.
Port: Select the number of the port you want to bind.
Port-Bind Table
Index: Displays the index of the binding policy.
Policy Name: Displays the name of the binding policy.
Port:
Displays the number of the port bound to the corresponding policy.
Direction: Displays the binding direction.
