9.3.2 IPv6 Static Routing Config
Choose the menu Routing→Static Routing→IPv6 Static Routing Config to load the following
page.

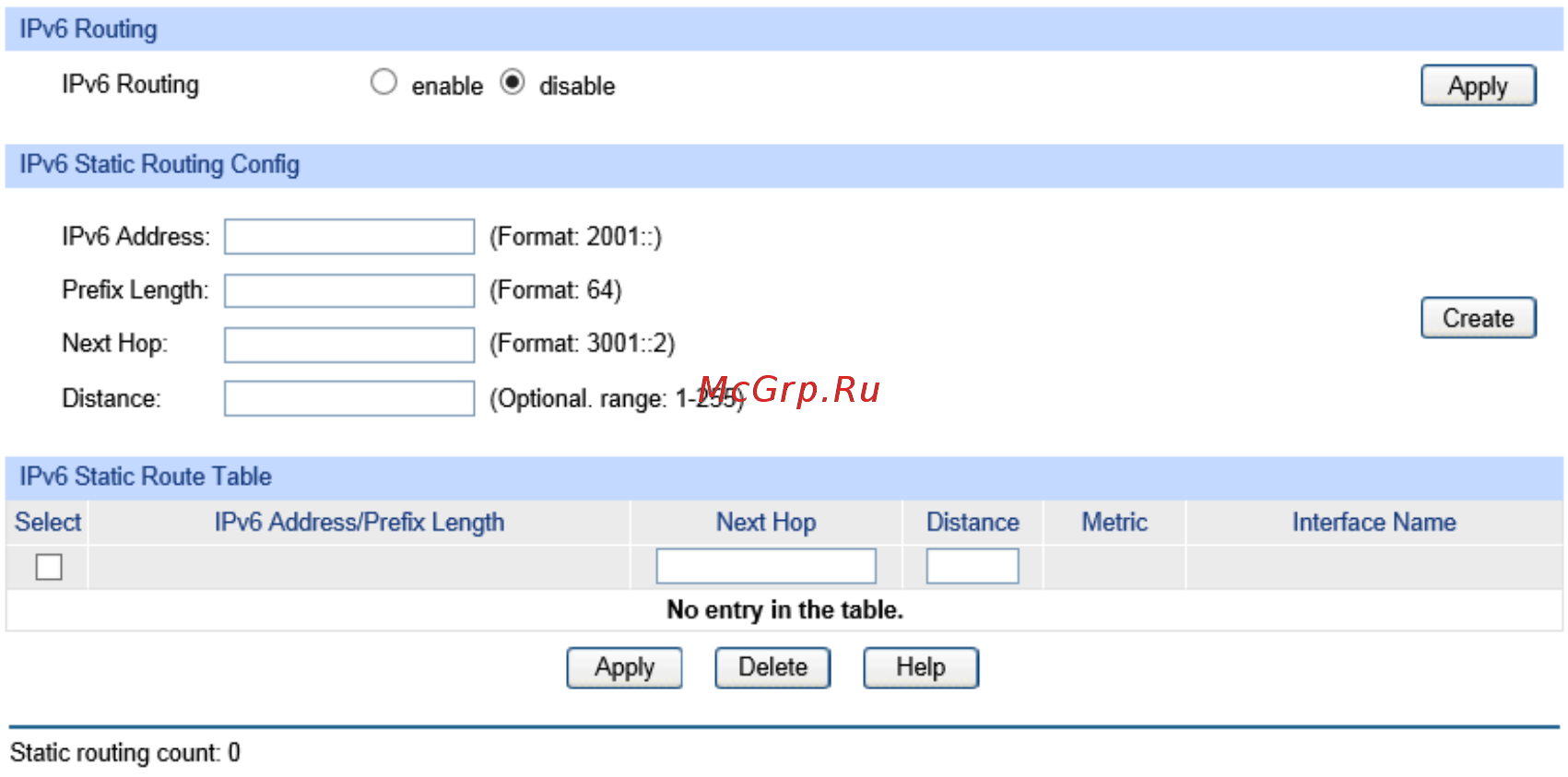

Figure 9-8 Static Routing Config
The following entries are displayed on this screen:
IPv6 Routing
IPv6 Static Routing Config
IPv6 Static Route Table
Next Hop: Displays the IP address to which the packet should be sent next.
Distance:
Displays the distance metric of ro
ute. The smaller the distance,
the higher the priority.
Metric: Displays the metric of the route.
Interface Name: Displays the name of the VLAN interface.
IPv6 Routing:
Enable or disable the IPv6 routing feature.
IPv6 Address:
Specify the destination IPv6 address of the packets.
Prefix Length: Specify the prefix length of the IPv6 address.
Next Hop: Enter the IPv6 address to which the packet should be sent next.
Distance:
Enter the distance metric of route. The smaller the distance, the
higher the priority.
Select: Select the IPv6 static route entries to modify.
IPv6 Address: Displays the destination IPv6 address of the packets.
Prefix Length: Displays the prefix length of the destination IPv6 address.
150
