14.4.4 Neighbor Info
On this page you can get the LLDP-MED information of the neighbors.
Choose the menu LLDP→ LLDP-MED→ Neighbor Info to load the following page.

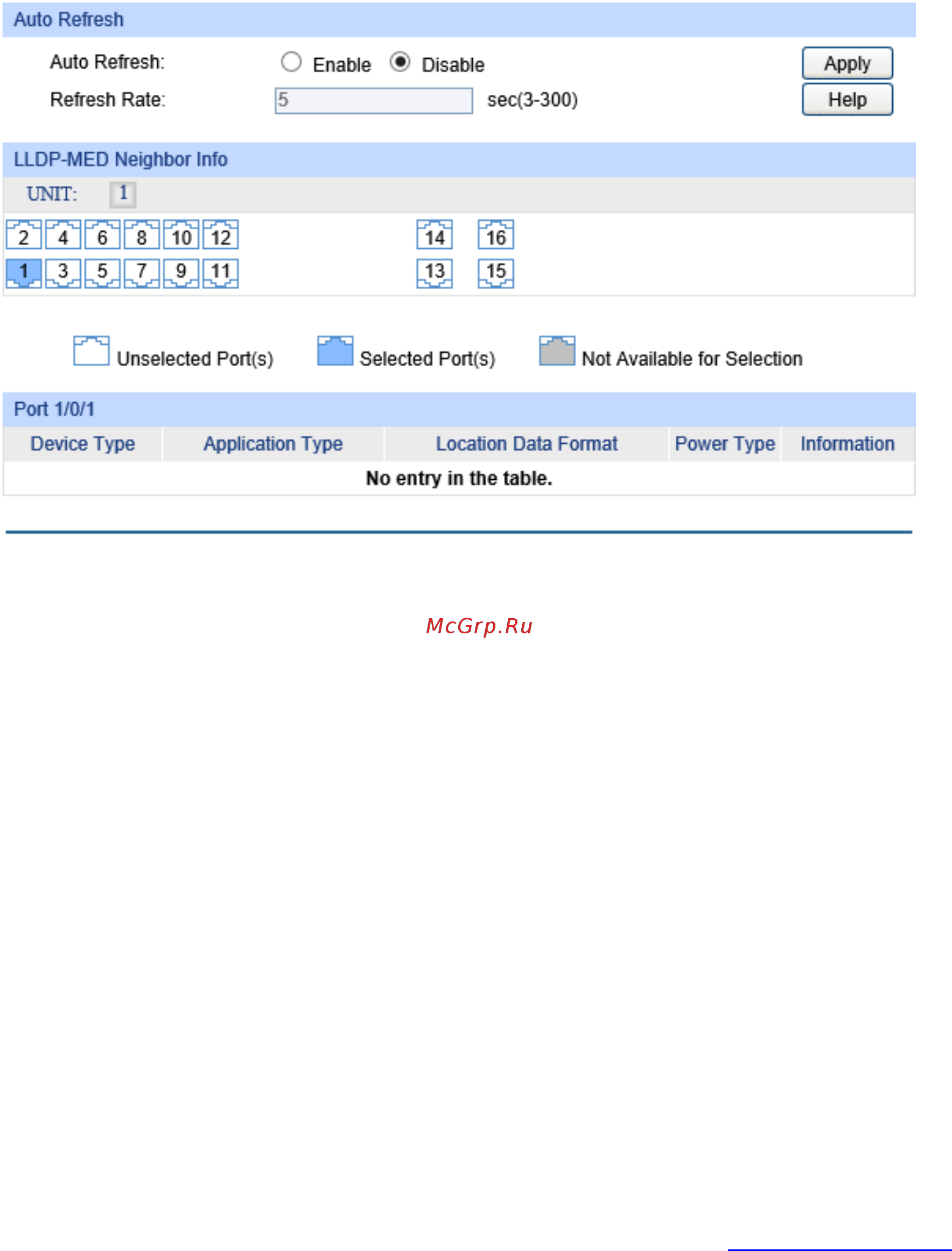

Figure 14-9 LLDP-MED Neighbor Information
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh: Enable/Disable the auto refresh function.
Refresh Rate: Specify the auto refresh rate.
Neighbor Info
Device Type: Displays the device type of the neighbor.
Application Type:
Displays the application type of the neighbor.
Application Type
indicates the primary function of the applications defined for
the
network policy.
Local Data Format: Displays the location identification of the neighbor.
Power Type:
Displays the power type of the neighbor device, Power Sourcing
Entity (PSE) or Powered Device (PD).
Information: Click the Information button to d
isplay the detailed information of
the corresponding neighbor.
Return to CONTENTS
256
