Chapter 1 Introduction
WRE6602 User’s Guide
10
1.5 Hardware
1.5.1 Front Panel
The LED indicators are located on the front panel. Look at the LED lights on the front panel to determine
the status of the WRE6602.

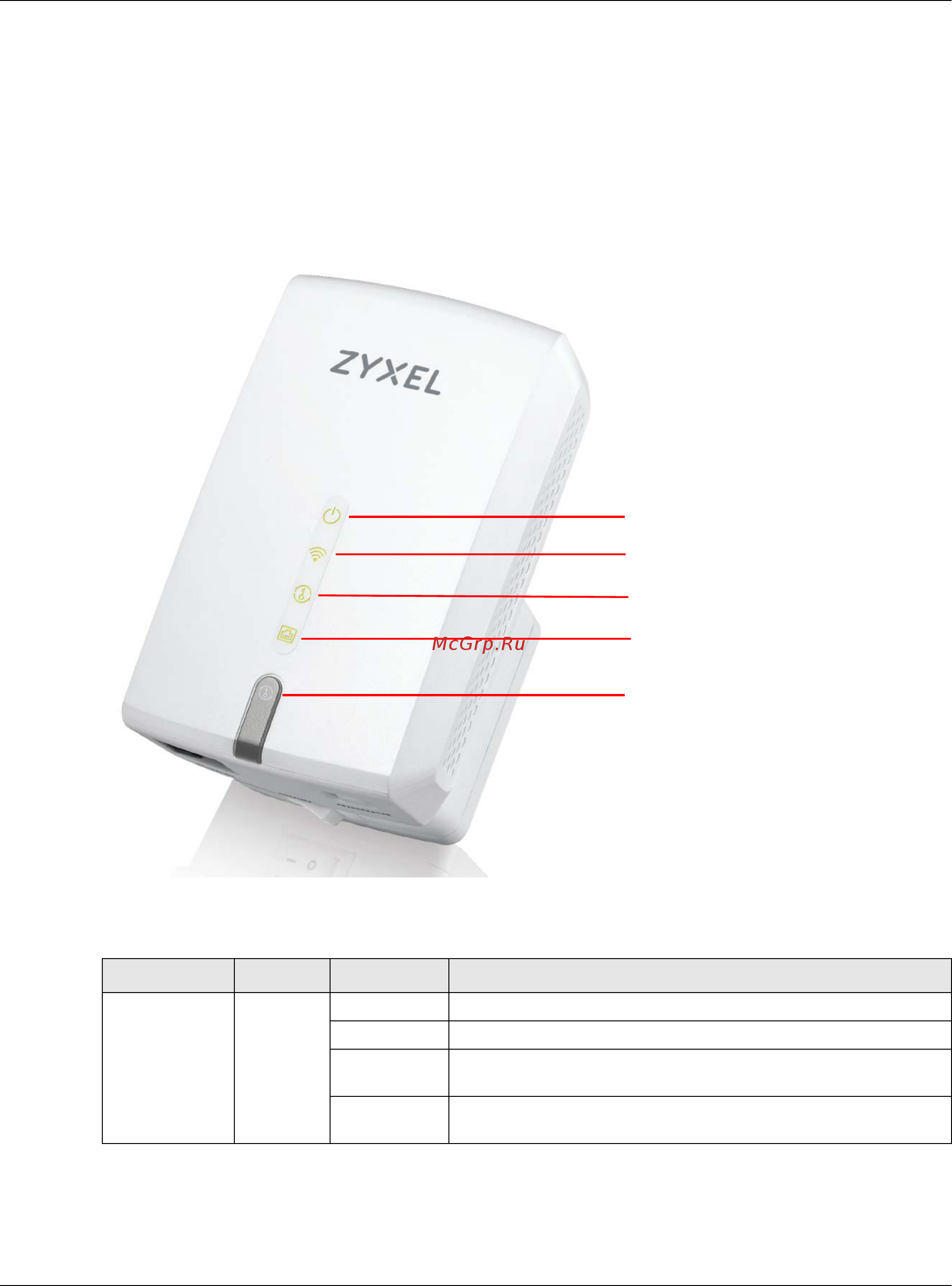

Figure 3 Front Panel
The following table describes the LEDs.
Table 1 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
Power Green On The WRE6602 is receiving power and functioning properly.
Fast Blinking The WRE6602 is turning on.
Slow Blinking The WRE is authenticating your LAN device via the Web
Configurator or Easy Link app.
Off The WRE6602 is not receiving power, or there is no WPS connection
established.
Power LED
WiFi LED
LAN LED
Smart Push Button
Smart Push LED
