Chapter 2 The Web Configurator
WRE6602 User’s Guide
20

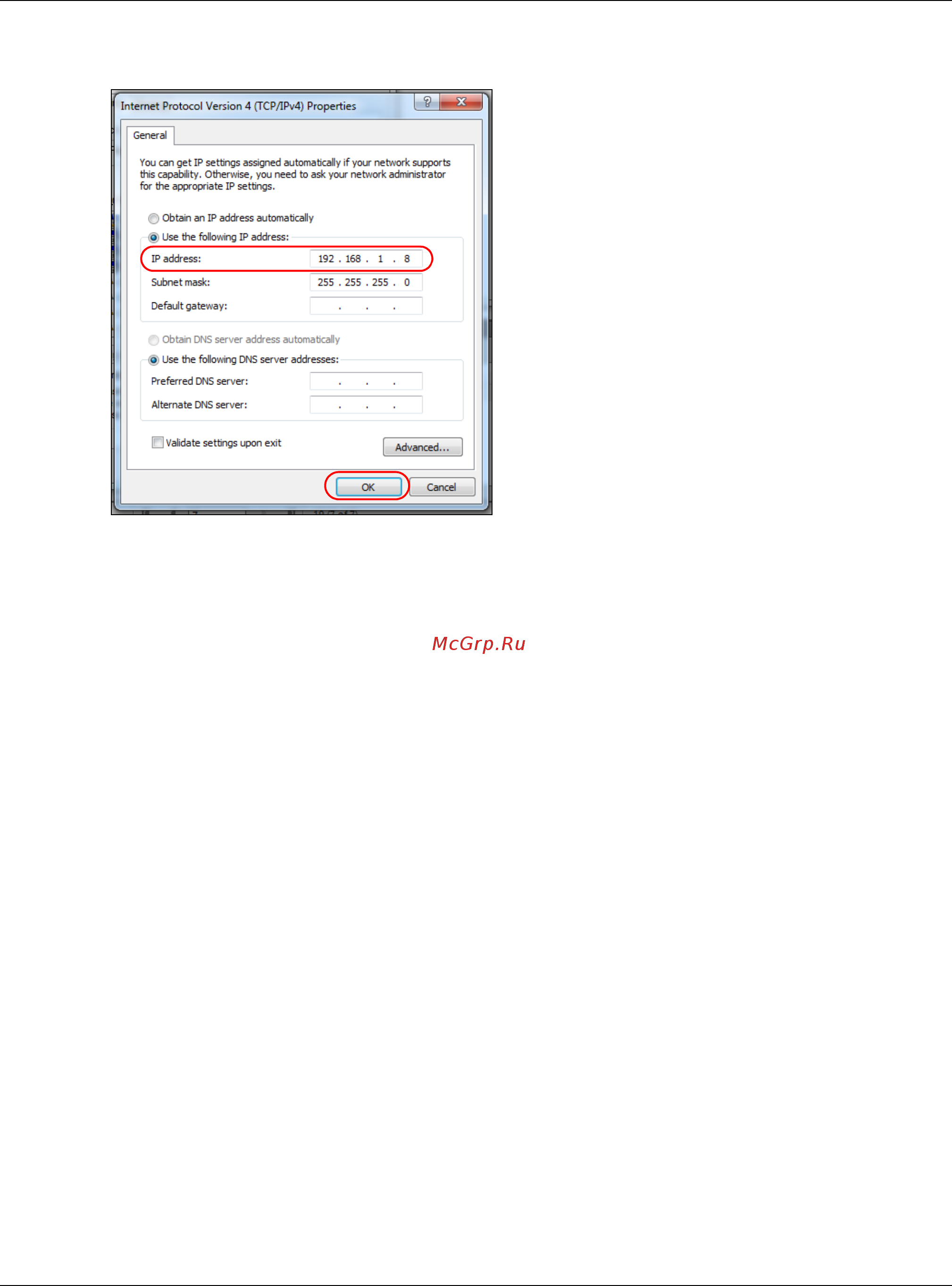

4 The Properties screen opens. Select Use the following IP Address radio button. Enter any address
between 192.168.1.3~192.168.1.254. Click OK to apply your changes.
5 After you have configured the WRE6602, you will need to change your Static IP back to dynamic.
Repeat steps 1~3, and for Step 4 select Obtain IP address automatically.
2.4.2 Find and Access your WRE6602 Using FindMe
After the WRE6602 is configured and linked to your wireless router you cannot access the WRE6602 using
http://192.168.1.2.
Use FindMe to find and access the WRE6602 Web Configurator. To use FindMe you need to be wirelessly
connected to the WRE6602, and have Internet access through the wireless AP or router’s network.
Follow these steps to connect to the WRE6602 using FindMe:
1 Make sure both the WRE6602 and your computer are connected to a router with Internet access.
2 Open your web browser and type "https://findme.zyxel.com" as the website address.
3 Select the Zyxel device you wish to discover, in this case the WRE6602.
