WRE6602 User’s Guide
23
CHAPTER 3
WRE6602 Modes
3.1 Overview
This chapter introduces the different modes available on your WRE6602.
• System Operation Mode. This is the operating mode of your WRE6602, or simply how the WRE6602 is
being used in the network.
3.1.1 WRE6602 Modes
This refers to the operating mode of the WRE6602, which can act as a:
• Repeater: In this mode, the WRE6602 can be an access point and a wireless client at the same time.
Go to Section 4.3.1 on page 26 to view the main screen in this mode. Use this mode if there is an
existing wireless router or access point in your network and you also want to allow clients to connect
to the WRE6602 wirelessly.
• Access Point: Use this mode if you want to extend your network by allowing network devices to
connect to the WRE6602 wirelessly. Go to Section 5.3.1 on page 33 to view the main screen in this
mode.

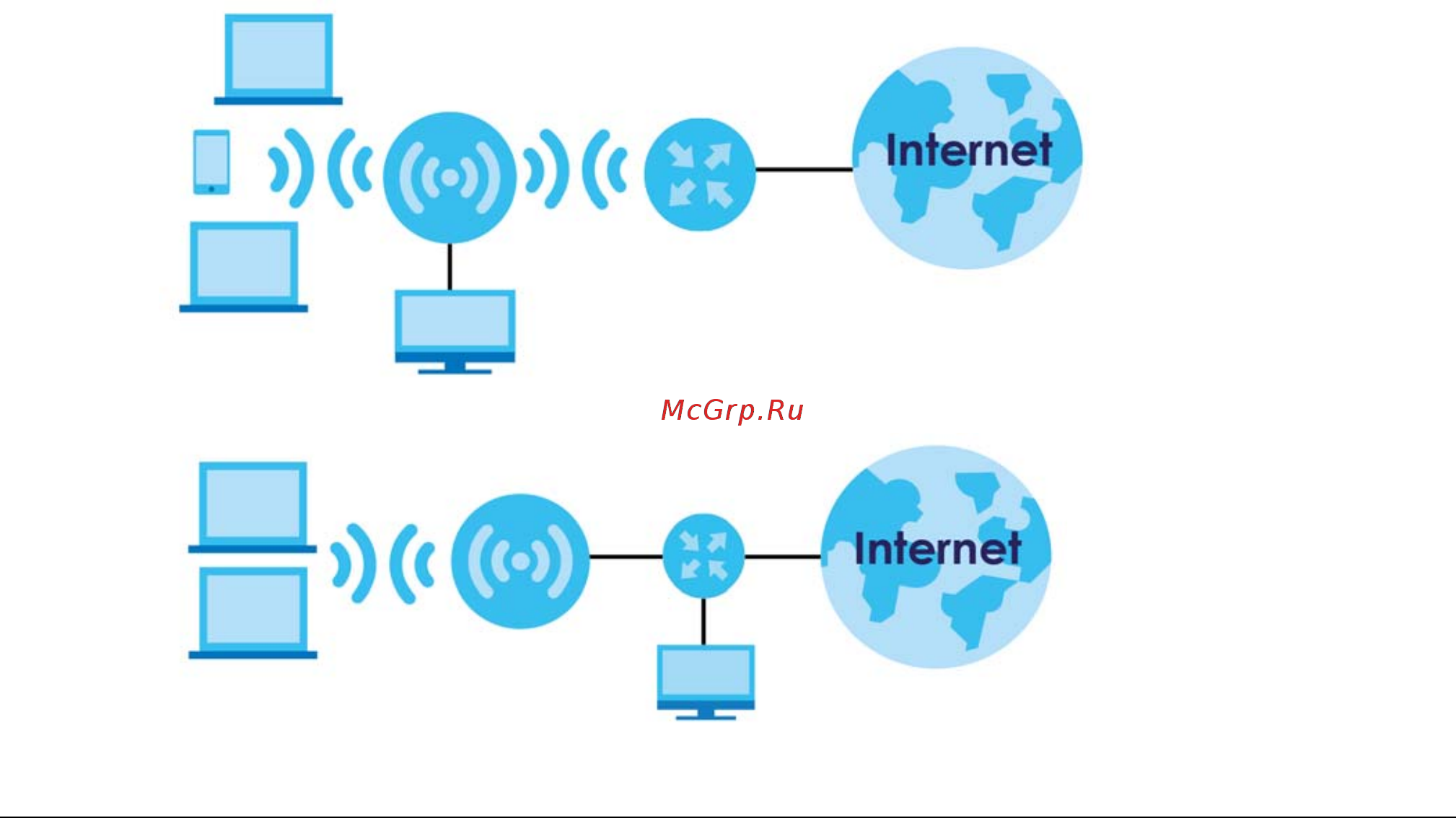

The following figures are an illustration of the device configuration modes of the WRE6602.
Figure 12 WRE6602 in Repeater Mode Example
Figure 13 WRE6602 in AP Mode Example
WRE
WRE
