Chapter 1 Introduction
WRE6602 User’s Guide
12
1.5.3 Bottom Panel
The connection port, power button, and operation mode switch are located on the bottom panel.

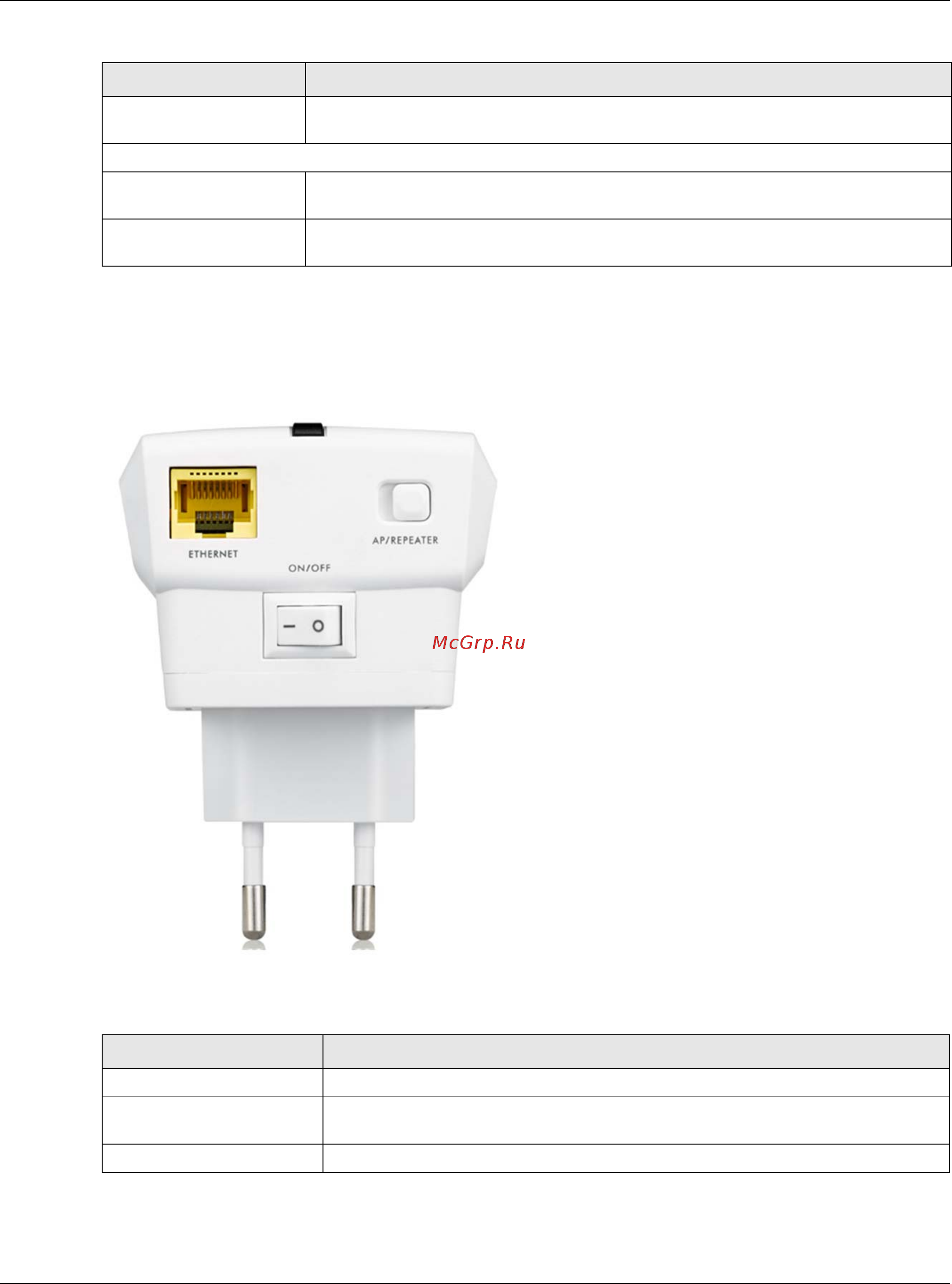

Figure 4 Bottom Panel
The following table describes the items on the rear panel.
Hold for more than 10
seconds
The WRE6602 resets its configuration to factory defaults and reboots. Also, the power
LED will be blinking. See Section 1.4 on page 9.
AP Mode
Hold for two seconds The WRE6602 begins connecting to a wireless client via WPS. See Section 1.5.2 on page
11.
Hold for more than 10
seconds
The WRE6602 resets its configuration to factory defaults and reboots.
Table 2 Smart Push Button Functions
ACTION RESULT
Table 3 Bottom Panel
LABEL DESCRIPTION
ETHERNET Connect computers or other Ethernet devices to Ethernet ports for Internet access.
AP/REPEATER Use this slide button to select the system operation mode of the WRE6602. For more
information, see Chapter 3 on page 23.
ON/OFF Use this switch to turn theWRE6602 power on or off.
