Chapter 4 Repeater Mode
WRE6602 User’s Guide
31

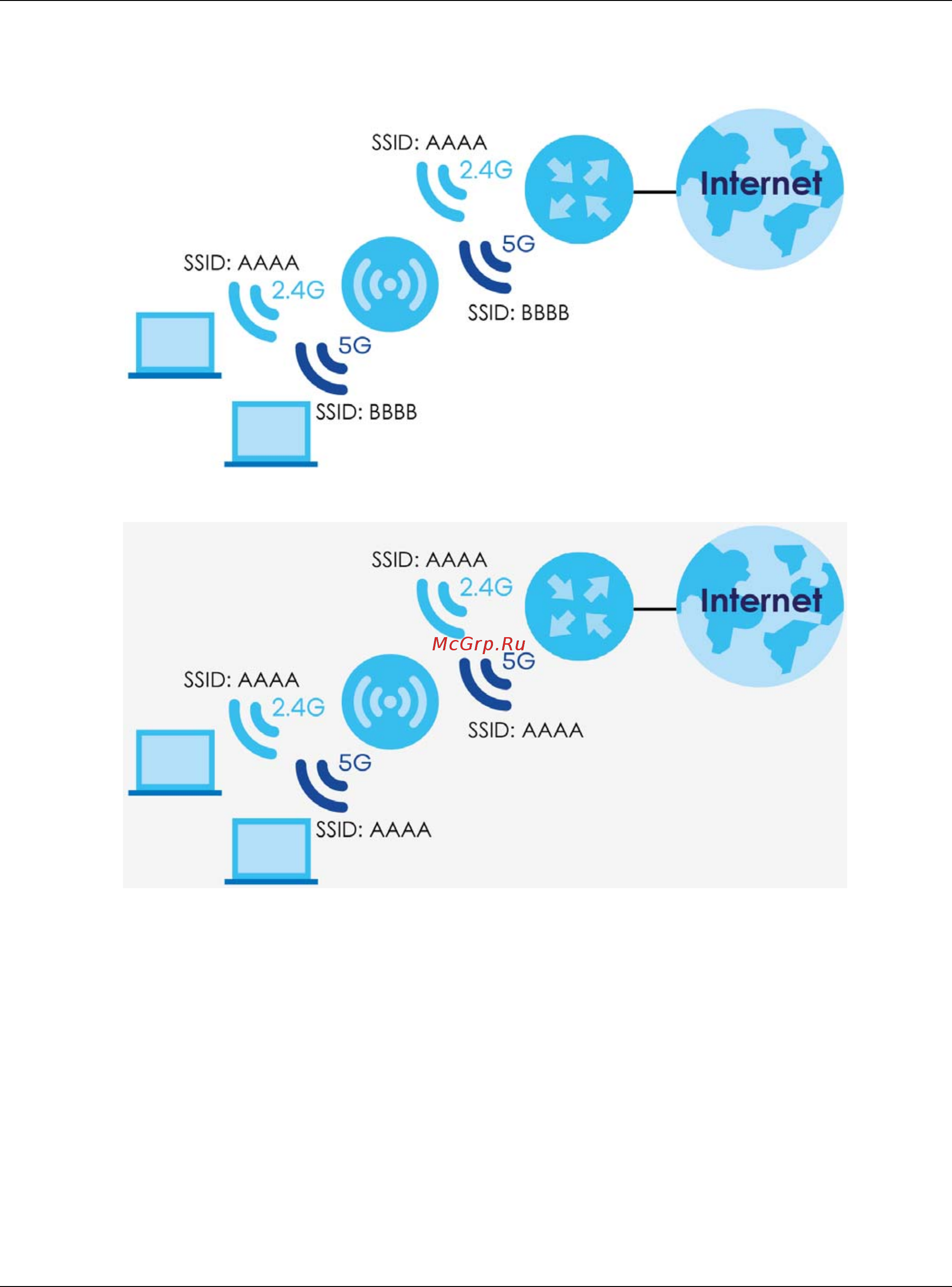

• When there are 2.4GHz and 5GHz connections between the wireless router/AP and the WRE6602,
each one with a different SSID. The WRE6602 uses the 2.4GHz SSID for its 2.4GHz connection to the
2.4GHz wireless clients, and the 5GHz SSID for its 5GHz wireless clients respectively.
• When there are 2.4GHz and 5GHz connections with a single SSID from the router to the WRE6602, the
WRE6602 uses the same SSID for both connections to the 2.4GHz and 5GHz wireless clients.
Note: If the wireless router’s SSID is unavailable, the WRE6602’s SSID will also be unavailable.
