Chapter 4 Repeater Mode
WRE6602 User’s Guide
30

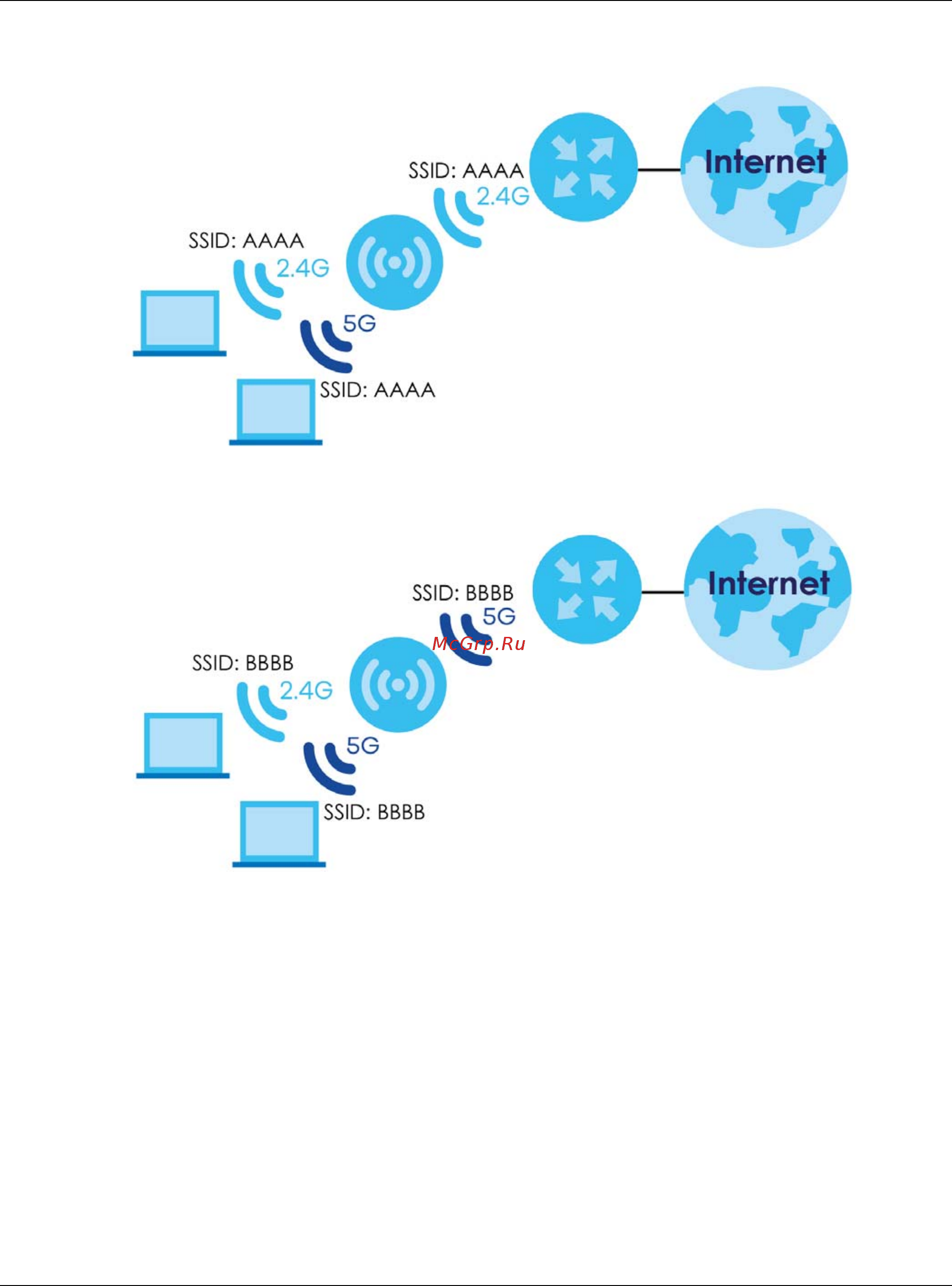

• When there is a single 2.4GHz connection between the wireless router/AP and the WRE6602, the
WRE6602 uses this 2.4 GHz SSID for both connections to the 2.4GHz and 5GHz wireless clients.
• When there is a single 5GHz connection between the wireless router/AP and the WRE6602, the
WRE6602 uses the 5GHz SSID for both connections to the 2.4GHz and 5GHz wireless clients.
