WRE6602 User’s Guide
32
CHAPTER 5
Access Point Mode
5.1 Overview
In Access Point (AP) mode your WRE6602 bridges a wired network (LAN) and wireless LAN (WLAN) in the
same subnet. See the figure below for an example.

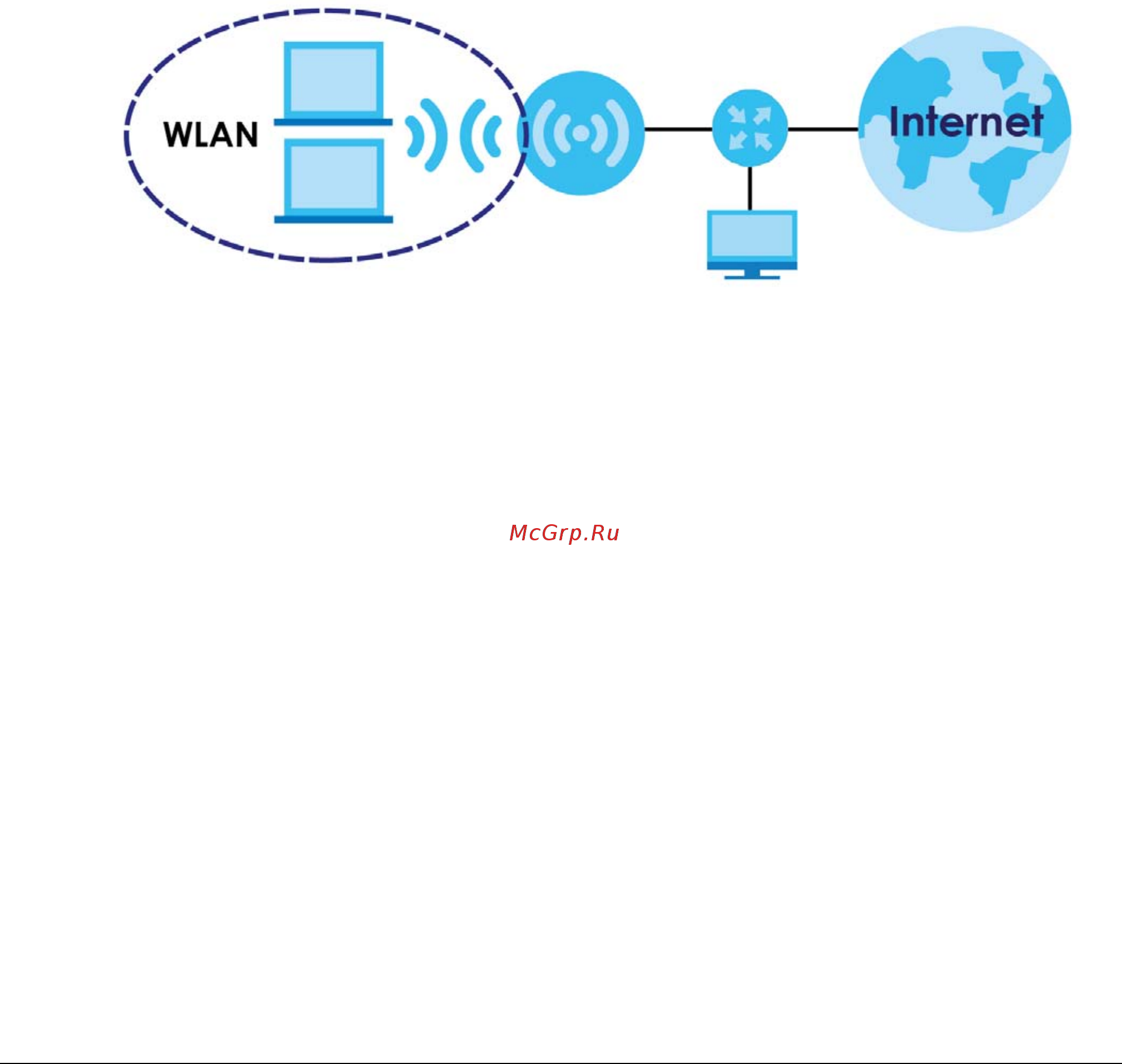

Figure 18 Wireless Internet Access in Access Point Mode
5.2 What You Can Do
This chapter provides tutorials for your WRE6602 in AP mode, as follows:
• Set your WRE6602 to AP Mode
• Configure the WRE6602 Wireless Settings
5.3 Set your WRE6602 to AP Mode
By default, AP mode in the WRE6602 is configured with a static IP address. To set up your WRE6602 in AP
mode for the first time, the directly-connected router must have the DHCP server function enabled.
1 To use your WRE6602 as an access point, See Section 3.1.1.1 on page 24.
2 Connect one end of an Ethernet cable to the Ethernet port on the WRE6602 and the other end to your
router.
3 You can connect wirelessly to the WRE6602 using its default SSID and password (in the product label)
and have Internet access.
WRE
