Chapter 2 The Web Configurator
WRE6602 User’s Guide
17
If the WRE6602 is in AP mode the main screen displays as follows. For more information see Section 5.3.1
on page 33.

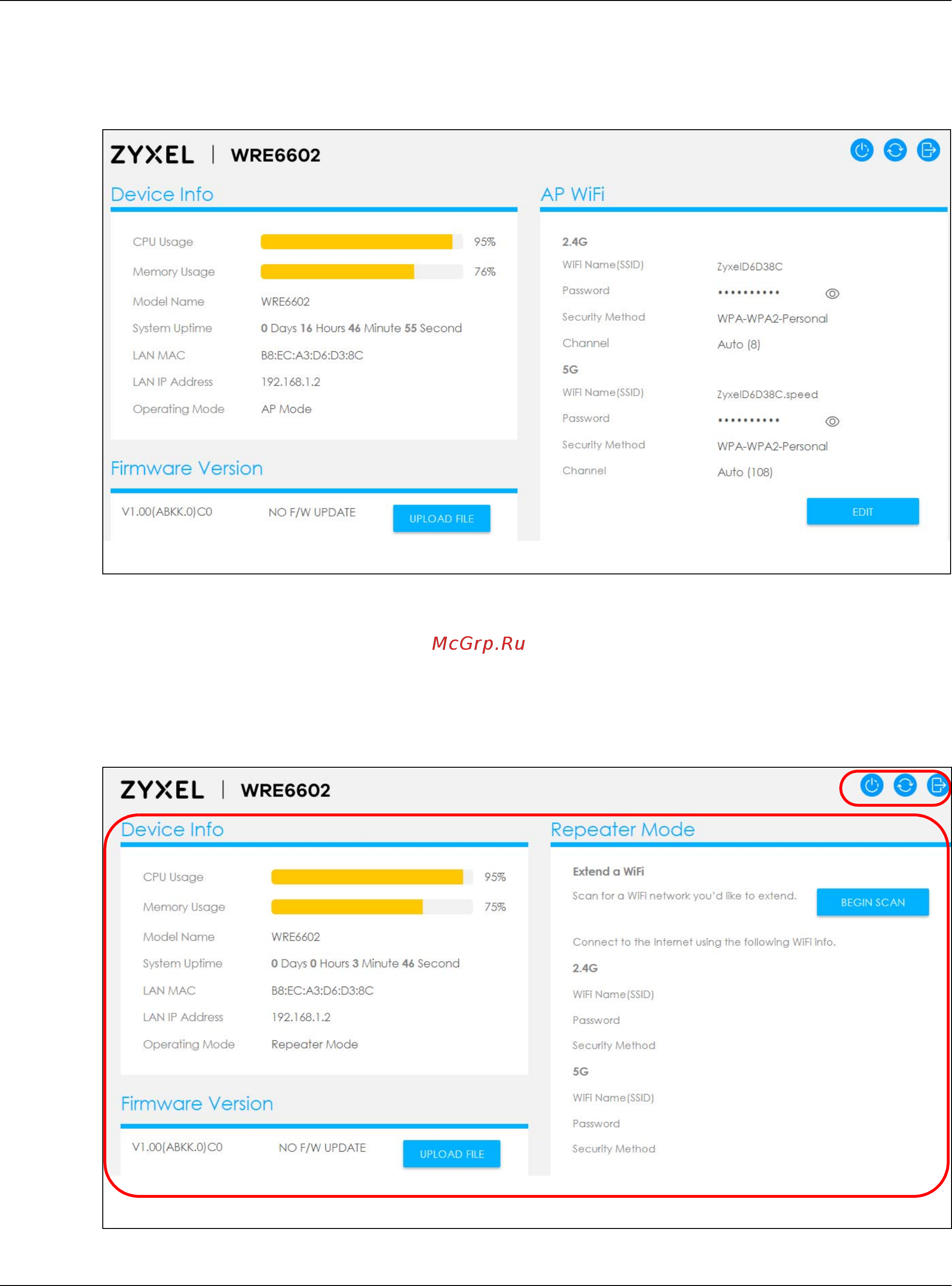

Figure 9 Main Screen: AP Mode
2.3 Navigating the Web Configurator
The following summarizes how to navigate the Web Configurator from the main screen.
Figure 10 The Web Configurator’s Main Screen
B
A
