Chapter 2 The Web Configurator
WRE6602 User’s Guide
18
The Web Configurator’s main screen is divided into these parts:
• A - Title Bar
• B - Main Window
2.3.1 Title Bar
The title bar provides some useful links that always appear over the screens below, regardless of how
deep into the Web Configurator you navigate.

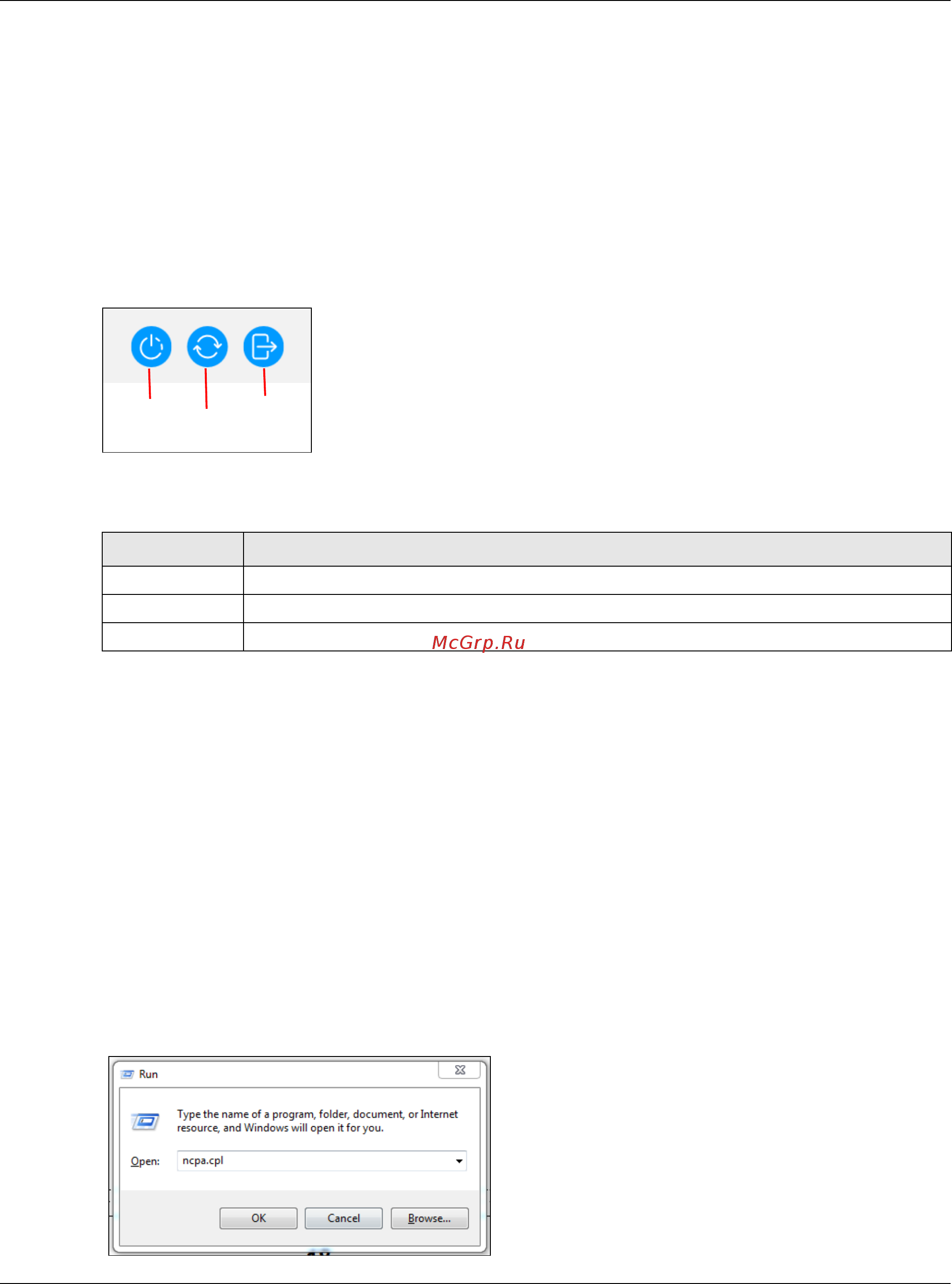

Figure 11 Title Bar
The icons provide the following functions.
2.4 Technical Reference
2.4.1 Set Up your Computer’s IP Address in Windows
This section shows you how to configure the IP settings on your computer in order for it to be able to
communicate with the WRE6602 in its initial configuration. To assign IP information instead of using a
dynamic IP, make sure that your network’s computers have IP addresses that place them in the same
subnet.
To set up an IP address for Windows 7, 8, or 10, do the following:
1 Press the Windows + R buttons in your keyboard. Type ncpa.cpl to open the Network Connections
screen.
Table 6 Title Bar: Web Configurator Icons
LABEL DESCRIPTION
Reboot Click this icon to reboot the WRE6602 without turning the power off.
Reset Click this icon to reset the WRE6602 back to factory-default settings.
Logout Click this icon at any time to exit the Web Configurator.
Reboot
Factory
Logout
Reset
