Chapter 2 The Web Configurator
WRE6602 User’s Guide
19

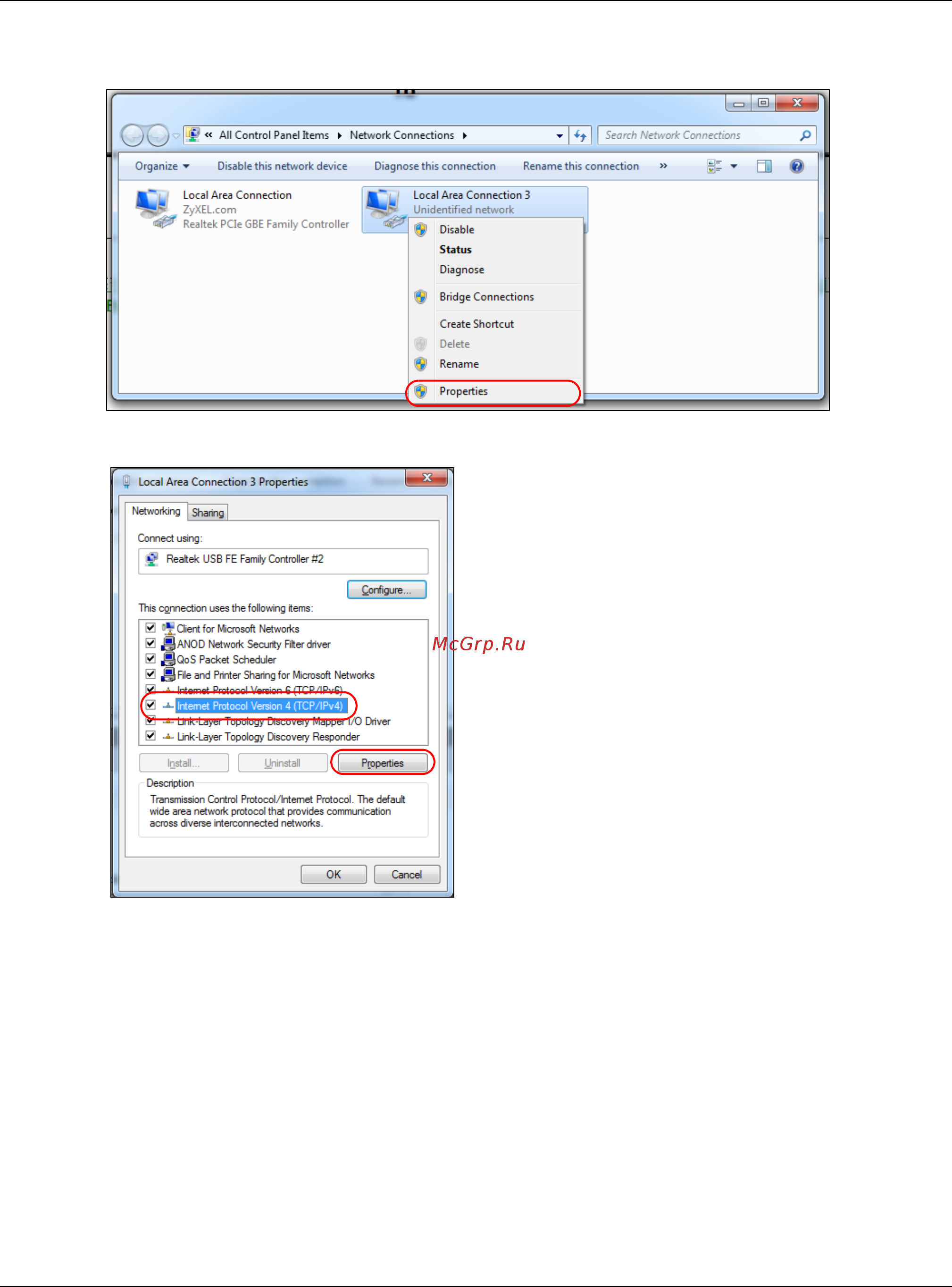

2 Select the connection on which you want to set up the Static IP address. Right-click this connection and
click Properties.
3 The Properties window opens. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
1
2
