Chapter 2 The Web Configurator
WRE6602 User’s Guide
16

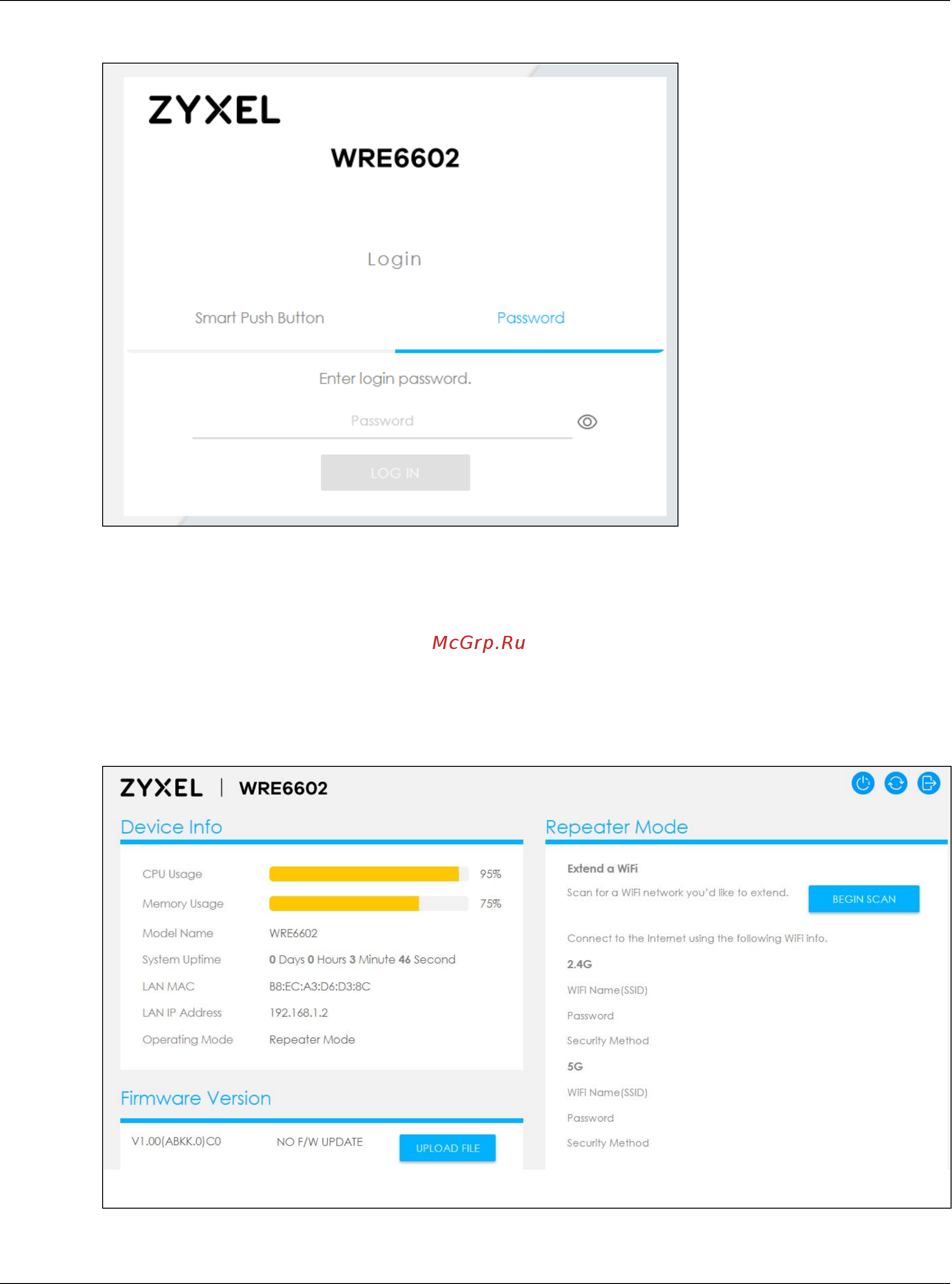

Figure 7 Login Screen After First Time
2.2.4 Main Screen
If you have previously logged into the Web Configurator but did not click Logout, you may be
redirected to the main screen.
If the WRE6602 is in Repeater mode the main screen displays as follows. For more information see Section
4.3.1 on page 26.
Figure 8 Main Screen: Repeater Mode
