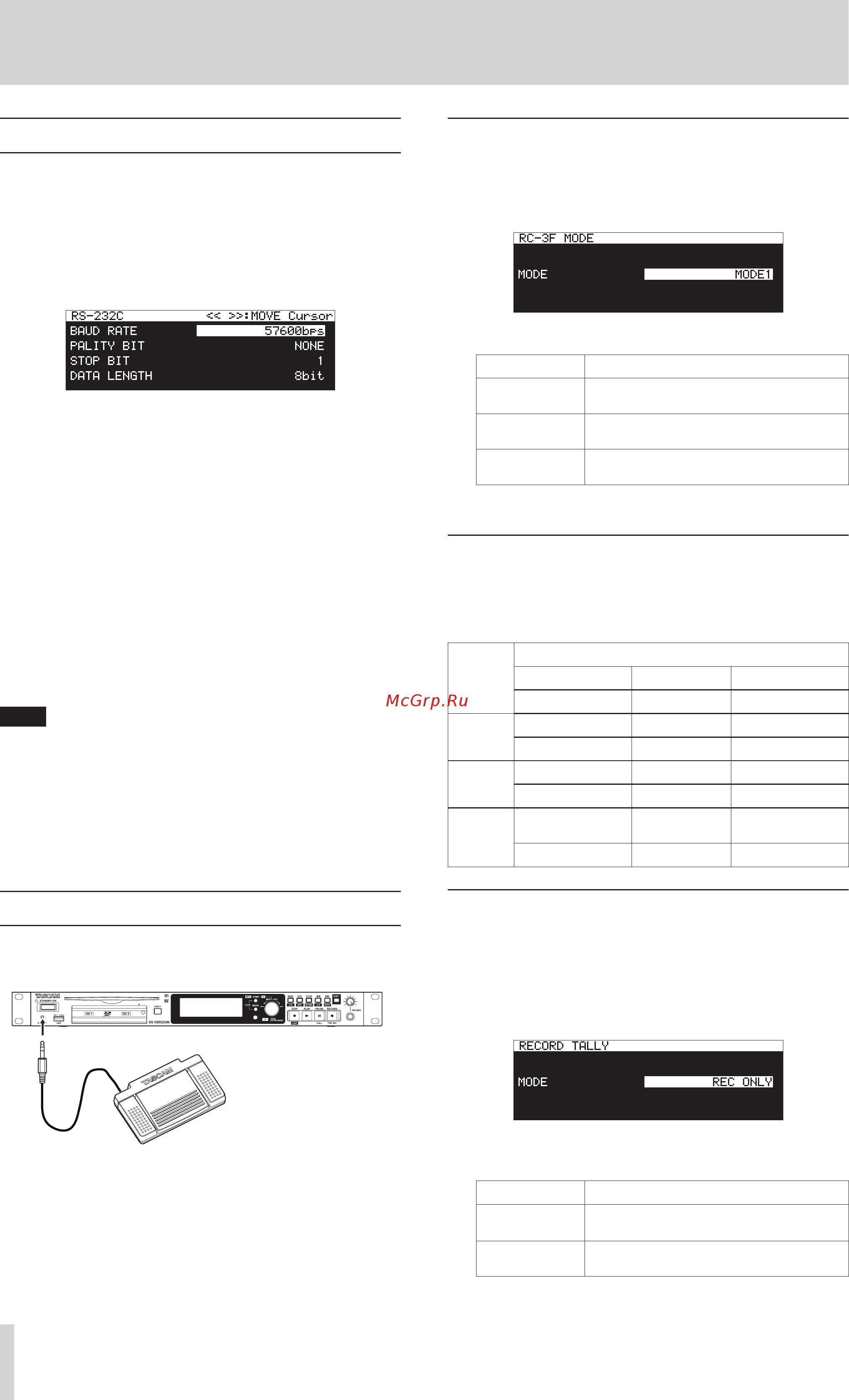

102
TASCAM SS-CDR250N / SS-R250N
15– Using the Remote Control Connectors
Using the RS-232C connector
Using the RS-232C connector (9-pin D-sub RS-232C standard) on
the back of the unit, this unit can be operated by a computer or
other external device by serial control. In addition, flash starting
by remote control is possible if a TASCAM RC-SS150 (sold sepa-
rately) is connected.
Select RS-232C on the REMOTE page to open the RS-232C screen.
(See “Menu operation procedures on page 22.)
Setting the transmission speed (baud rate)
Select BAUD RATE, and set the transmission speed (baud rate).
Options: 4800bps, 9600bps, 19200bps, 38400bps,
57600bps (default)
Setting the parity bit
Select PARITY BIT, and set whether or not there is a parity bit.
Options: NONE (none, default value), EVEN (even), ODD (odd)
Setting the stop bit
Select STOP BIT, and set the stop bit.
Options: 1 (default), 2
Set the data length
Select DATA LENGTH, and set the data length.
Options: 7bit, 8bit (default)
NOTE
i
The 9 pin of this unit's RS-232C connector is used to supply
12V power to the TASCAM RC-SS150 Do not use it to supply
power to any other device. The 9 pin of ordinary computer
RS-232C connectors is unused, so commercially-available RS-
232C cables can be used for connection.
i
For information about this unit's RS-232C command protocol,
please contact the TASCAM customer support service.
Using a footswitch (TASCAM RC-3F)
You can use a TASCAM RC-3F footswitch (sold separately) con-
nected to the REMOTE jack on the front of this unit to control it.
TASCAM RC-3F (sold separately)
Setting up the footswitch
1. Select RC-3F MODE on the REMOTE page to open the RC-3F
MODE screen. (See “Menu operation procedures on page
22.)
2. Select one of the three pedal assignment modes.
Option Meaning
MODE1 (default)
This mode is optimal for recording min-
utes of meetings, for example.
MODE2
This mode provides basic transport re-
mote control.
MODE3
Use this mode for the pitch control func-
tion.
3. Confirm the setting and return to the Menu Screen.
Using the footswitch
Press the pedals of the footswitch to use the operations assigned
to them by the RC-3F MODE item.
Footswitch pedal assignments
MODE
Footswitch
L (press) C (press) R (press)
L (press and hold) C (release) R (press and hold)
1
.
PLAY
/
m
PAUSE/STOP
,
2
.
PLAY/PAUSE
/
m
---
,
3
PITCH (−)
1% increments
PLAY/PAUSE
PITCH (+)
1% increments
--- --- ---
Setting the Record Tally
The high/low status of PARALLEL connector pin 11 (Record Tally)
when recording is paused can be set.
1. Select the RECORD TALLY item on the REMOTE page and open
the RECORD TALLY screen. (See “Menu operation procedures
on page 22.)
2. Set the output mode of the PARALLEL connector pin 11 (Re-
cord Tally) when recording is paused.
Option Meaning
REC ONLY
(default)
Record Tally is not output when record-
ing is paused.
REC PAUSE/REC
Record Tally is output when recording is
paused. (Low state)
3. Confirm the setting and return to the Menu Screen.
